11 Connection

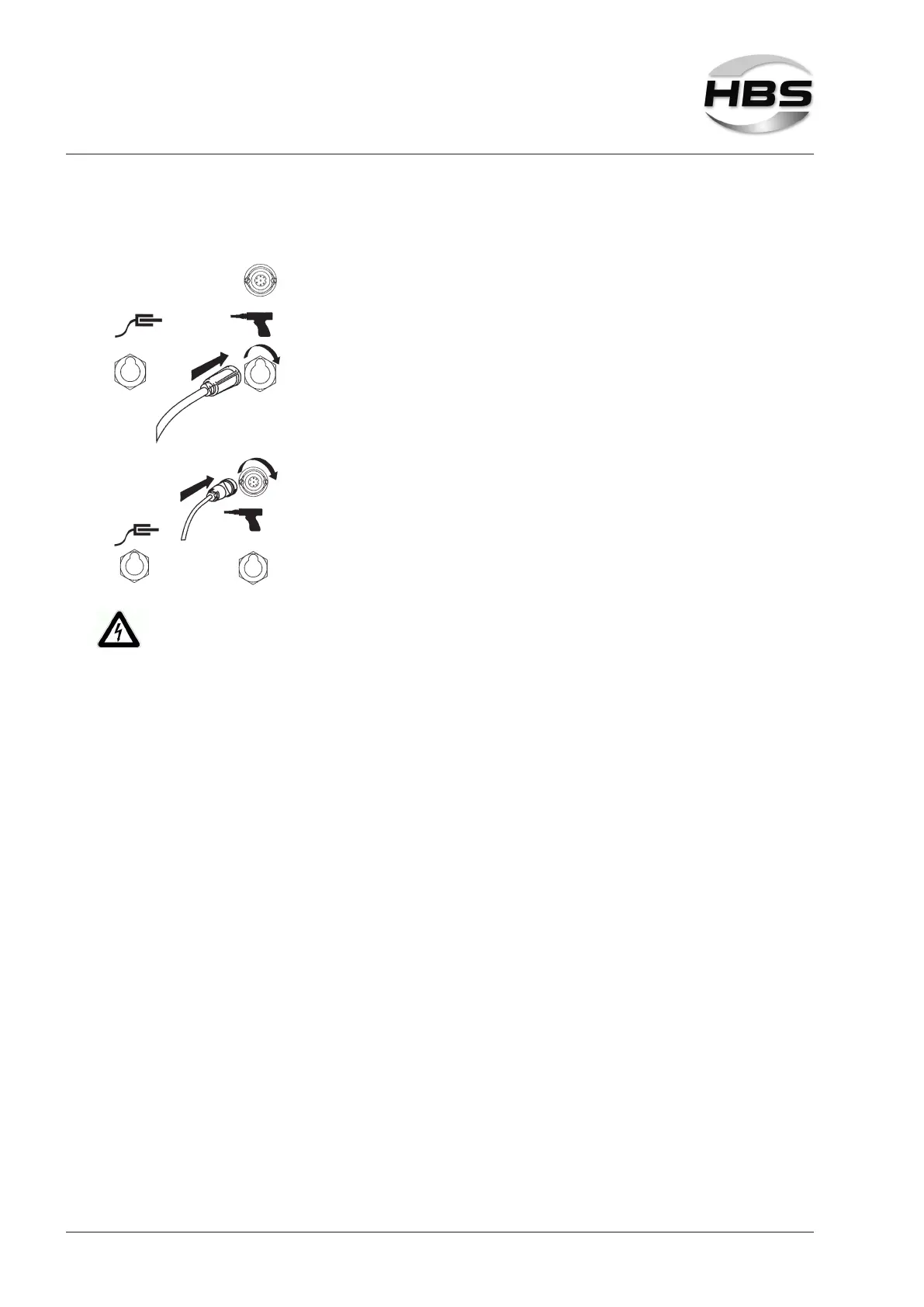

11.1 Connecting the Stud Welding Gun to the Stud Welding Unit
Connect the welding current cable
Only now plug the welding current cable into the correspon-
ding socket of the stud welding unit.
Press in the plug and turn it rmly clockwise (to the right).
Connect the control cable
Plug the control cable in the connector of the stud welding
unit.
Twist the retaining nut of the control cable connector clock-
wise.
Only loosely made connections will result in damage to the plug con-
nectors.
Therefore always check that the plug connector is rmly inserted.
This prevents a poor contact and hence overheating of the plug connectors.
