Heathkit HW-9 User Manual

Heathkit
Refer
to
Pictorial
3-9 (Illustration
Booklet,
Page
26)
for
the
following
steps.
(
)
Locate
the
14"
8-wire
cable
that
you
set
aside
earlier.
Then
refer to
Detail
3-9A
(Illustration
Booklet,
Page
26)
and use
the
following
proce-
dure to
prepare one
end
of the
cable:
1 .
Separate
the
wires
for a
length
of
2-1/2".
2.
Shorten
each
wire
to the
length
shown.
3.
Remove
1/4"
of
insulation
from
each
wire at
this
end of
the
cable
and
prepare
the
ends.
NOTE:
This
end
of the
cable
will
be
referred
to as
"end
A."
(
)
Refer
again to
Detail
3-9A
and
use the
follow-
ing
procedure
to
prepare the
other
end
of the
14"
cable:
1.
Separate
the
wires
for a
length
of
2-1/2".
2.
Shorten
each
wire to
the
length
shown.
3.
Remove
1/4"
of
insulation
from
each
wire at
this
end of
the
cable and
prepare
the
ends.
NOTE:
This
end
of the
cable
will be
referred
to as
"endB."

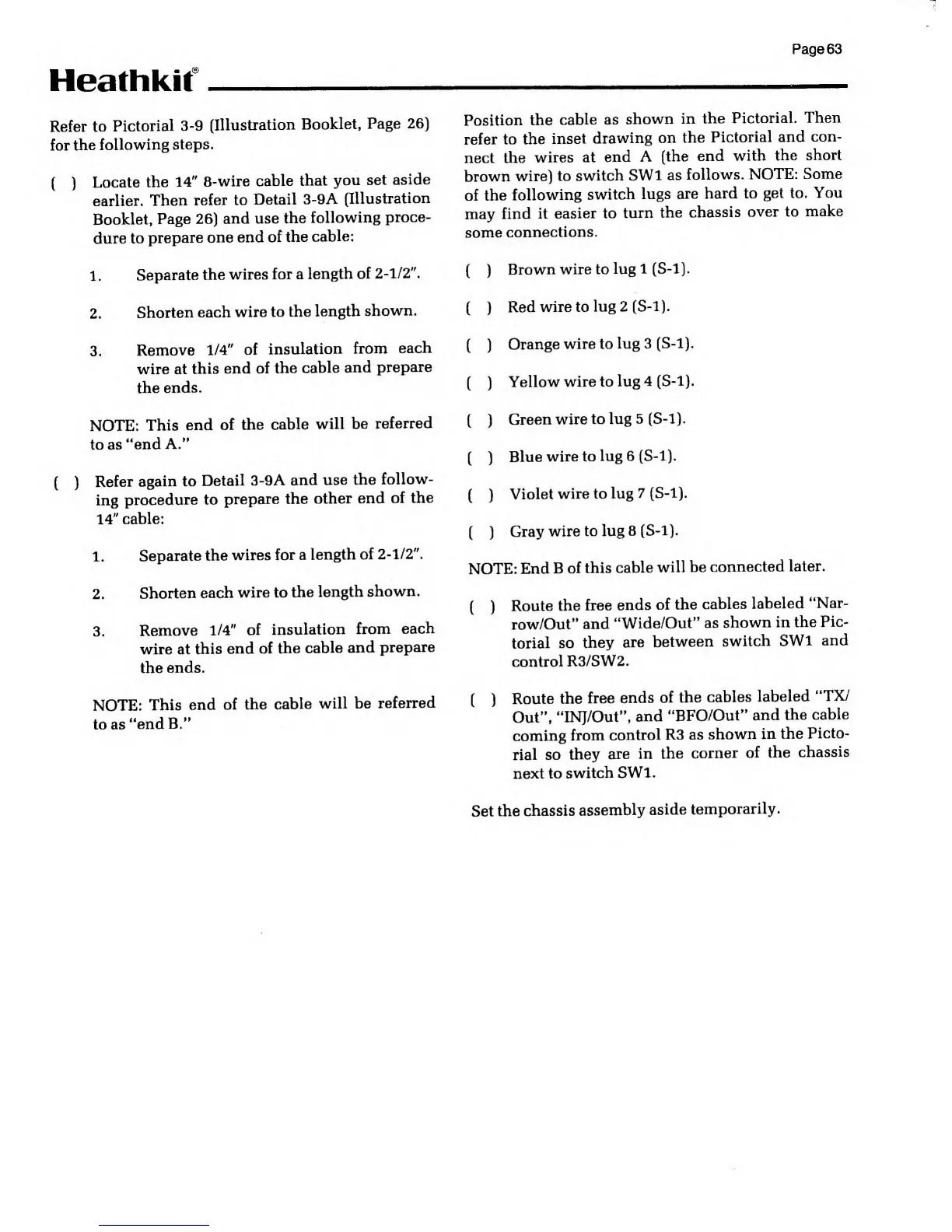

Page
63
Position the
cable as
shown
in
the
Pictorial.
Then
refer to the
inset
drawing on
the
Pictorial and
con-
nect the
wires at
end A
(the
end
with
the
short
brown
wire)
to
switch
SWl as
follows.
NOTE:
Some
of
the
following
switch
lugs
are
hard to
get to.
You
may find
it
easier to
turn
the
chassis
over to
make
some
connections.
(
)
Brown wire to
lug 1
(S-l).
(
)
Red
wire to
lug 2
(S-l).
(
)
Orange
wire to
lug 3
(S-l).
(
)
Yellow
wire to
lug 4
(S-l).
(
)
Green wire
to lug 5
(S-l).
(
)
Blue
wire to
lug 6
(S-l).
(
)
Violet
wire to lug
7
(S-l).
( )
Gray
wire
to lug
8
(S-l).
NOTE:
End
B of
this
cable
will be
connected
later.
(
)
Route the
free
ends
of the
cables
labeled
"Nar-
row/Out"
and
"Wide/Out"
as
shown in
the
Pic-
torial
so
they
are
between
switch
SWl
and
control
R3/SW2.
(
)
Route the
free
ends
of the
cables
labeled
"TX/
Out",
"INJ/Out",
and
"BFO/Out"
and
the
cable
coming
from
control R3
as
shown in
the
Picto-
rial so they
are in
the
corner
of the
chassis
next to
switch
SWl.
Set
the
chassis
assembly
aside
temporarily
