Heathkit

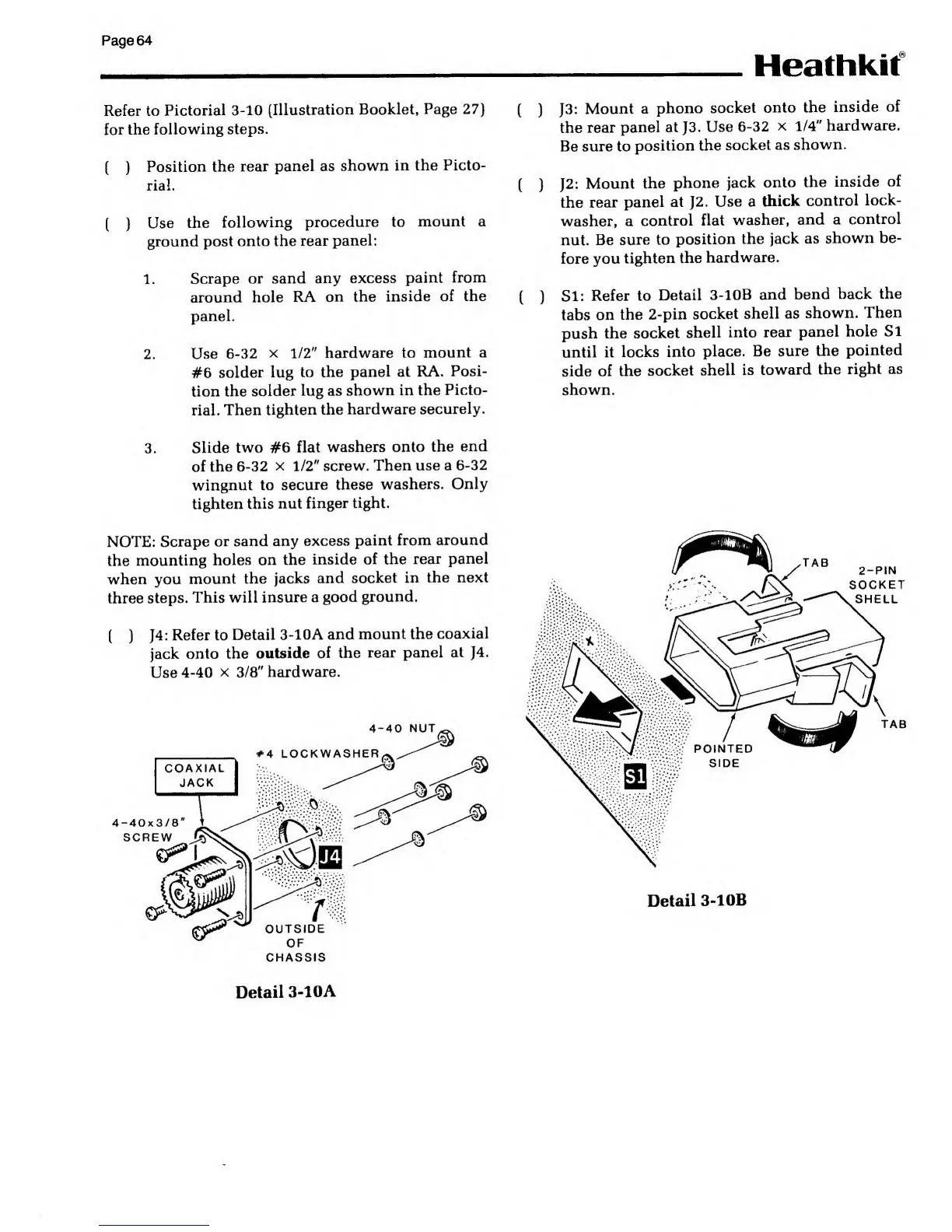

Refer to
Pictorial
3-10
(Illustration
Booklet,
Page
27)
( )
for the
following
steps.
(
)
Position
the rear
panel as
shown
in the Picto-
rial.
( )
Use the
following
procedure to
mount a
ground post
onto the
rear
panel:
2.
Use
6-32
x
1/2"
hardware
to
mount a
#6
solder
lug
to the
panel at RA.
Posi-
tion the
solder
lug as
shown in the
Picto-
rial.
Then
tighten the
hardware
securely.
3.
Slide
two #6 flat
washers onto
the
end
of the
6-32 X
1/2"
screw.
Then use a
6-32
wingnut to
secure these
washers. Only
tighten this
nut
finger tight.
NOTE:
Scrape
or sand any
excess
paint
from around
the
mounting
holes on the
inside
of
the
rear
panel
when you
mount the
jacks and
socket in
the next
three
steps.
This will
insure a good
ground.
( )
}4:
Refer to
Detail
3-10A and
mount the
coaxial
jack
onto the
outside
of the
rear panel
at
J4.
Use
4-40 x
3/8"
hardware.
CHASSIS
J3:
Mount a
phono
socket
onto the
inside of
the
rear
panel at
J3.
Use
6-32 x
1/4"
hardware.
Be sure to
position the
socket as
shown.
J2:
Mount
the
phone
jack
onto the
inside
of
the
rear
panel at
J2.
Use a
thick
control
lock-
washer, a
control
flat
washer,
and a
control
nut.
Be
sure to
position
the
jack as
shown be-
fore you
tighten the
hardware.
SI:
Refer to
Detail
3-10B
and
bend
back the
tabs
on the
2-pin
socket
shell as
shown.
Then
push the
socket
shell
into rear
panel
hole
Si
until it
locks
into
place. Be
sure the
pointed
side of the
socket
shell is
toward
the
right as
shown.
Detail
3-10B
1.
Scrape
or sand
any excess
paint
from
around hole
RA
on
the
inside of the
( )
panel.
Detail
3-10A
