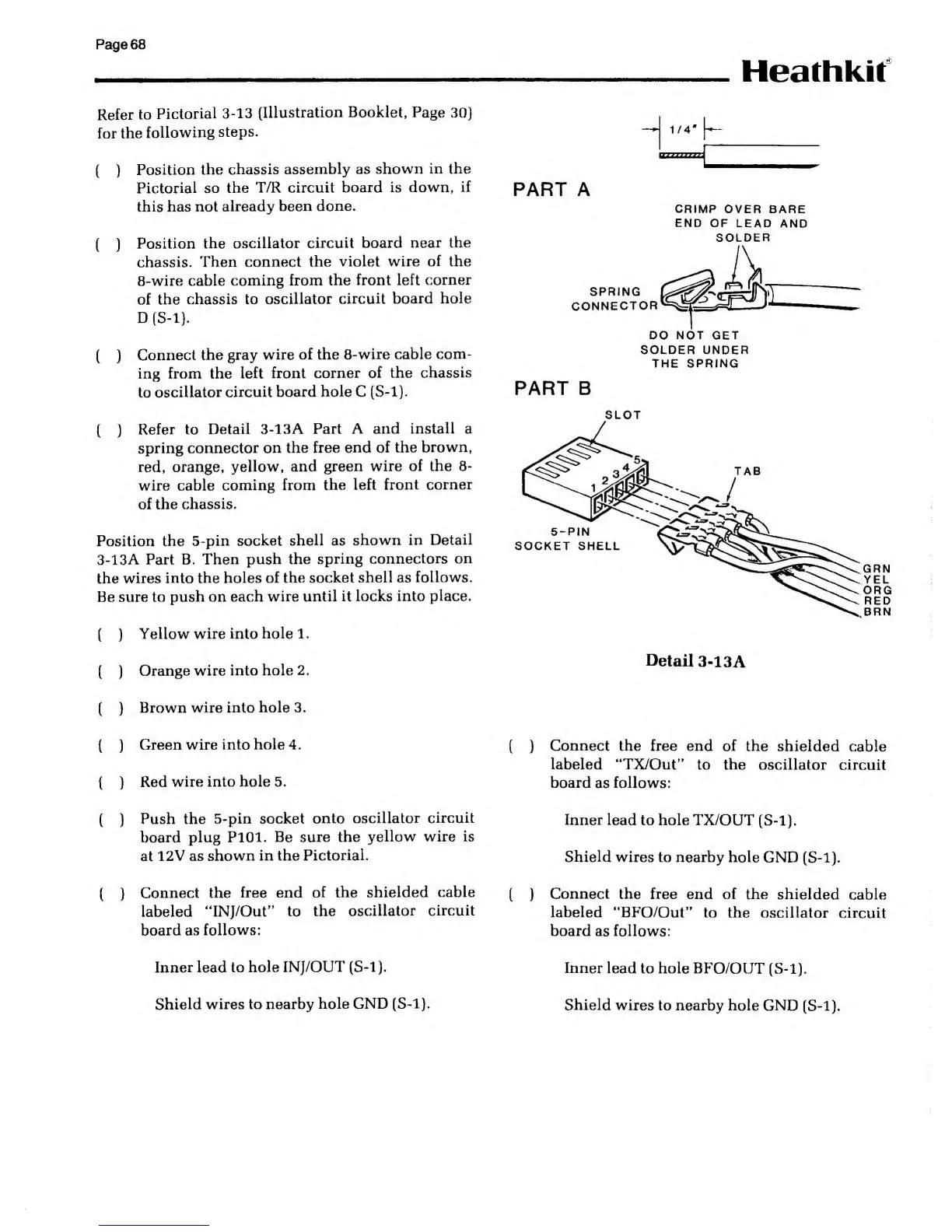

Page 68
Heathkif
Refer
to
Pictorial
3-13 (Illustration
Booklet, Page
30)
for
the
following
steps.
(
)
Position the
chassis
assembly as
shown in the
Pictorial so the
T/R circuit
board is
down,
if
this has not
already
been done.
(
)
Position the
oscillator
circuit board
near the
chassis.
Then
connect the
violet wire
of
the
8-wire cable
coming from
the front left
corner
of the
chassis to
oscillator
circuit board hole
D (S-l).
(
)
Connect
the gray
wire of the
8-wire cable
com-
ing
from the
left front
corner of the
chassis
to
oscillator
circuit board
hole
C
(S-l).
(
)
Refer
to
Detail
3-1
3A Part A
and install a
spring connector
on the free
end of the
brown,
red, orange,
yellow, and
green wire of the
8-
wire cable
coming from
the left
front corner
of the
chassis.
Position
the 5-pin
socket shell as
shown in
Detail
3-1
3A Part B. Then
push the
spring
connectors on
the
wires into the
holes of the
socket shell as
follows.
Be sure to
push on each
wire until it
locks into place.
(
)
Yellow wire into
hole 1
.
( )
Orange wire
into hole
2.
(
)
Brown wire into
hole 3.
(
)
Green wire
into hole 4.
(
)
Red
wire into hole 5.
(
)
Push the
5-pin socket
onto oscillator
circuit
board plug P101.
Be sure the
yellow wire is
at
12V as
shown in the
Pictorial.
(
)
Connect the
free end
of
the
shielded
cable
labeled "INJ/Out"
to
the
oscillator circuit
board
as follows:
Inner lead
to hole
INJ/OUT
(S-l).
Shield
wires to nearby
hole GND (S-l).
PART A
CRIMP
OVER BARE
END
OF LEAD
AND
SOLDER
SPRING
CONNECTOR
DO NOT GET
SOLDER UNDER
THE
SPRING
PART B
SLOT
GRN
YEL
ORG
RED
BRN
Detail
3-13A
(
)
Connect
the free end of
the shielded
cable
labeled "TX/Out"
to the oscillator circuit
board
as
follows:
Inner lead to hole TX/OUT
(S-l).
Shield
wires to nearby hole
GND (S-l).
(
)
Connect
the free end of the
shielded
cable
labeled "BFO/Out"
to the oscillator
circuit
board as follows:
Inner
lead to hole BFO/OUT
(S-l).
Shield wires
to nearby hole GND
(S-l).
