Heathkit HW-9 User Manual

Page 70
Heathkif
6-32
NUT

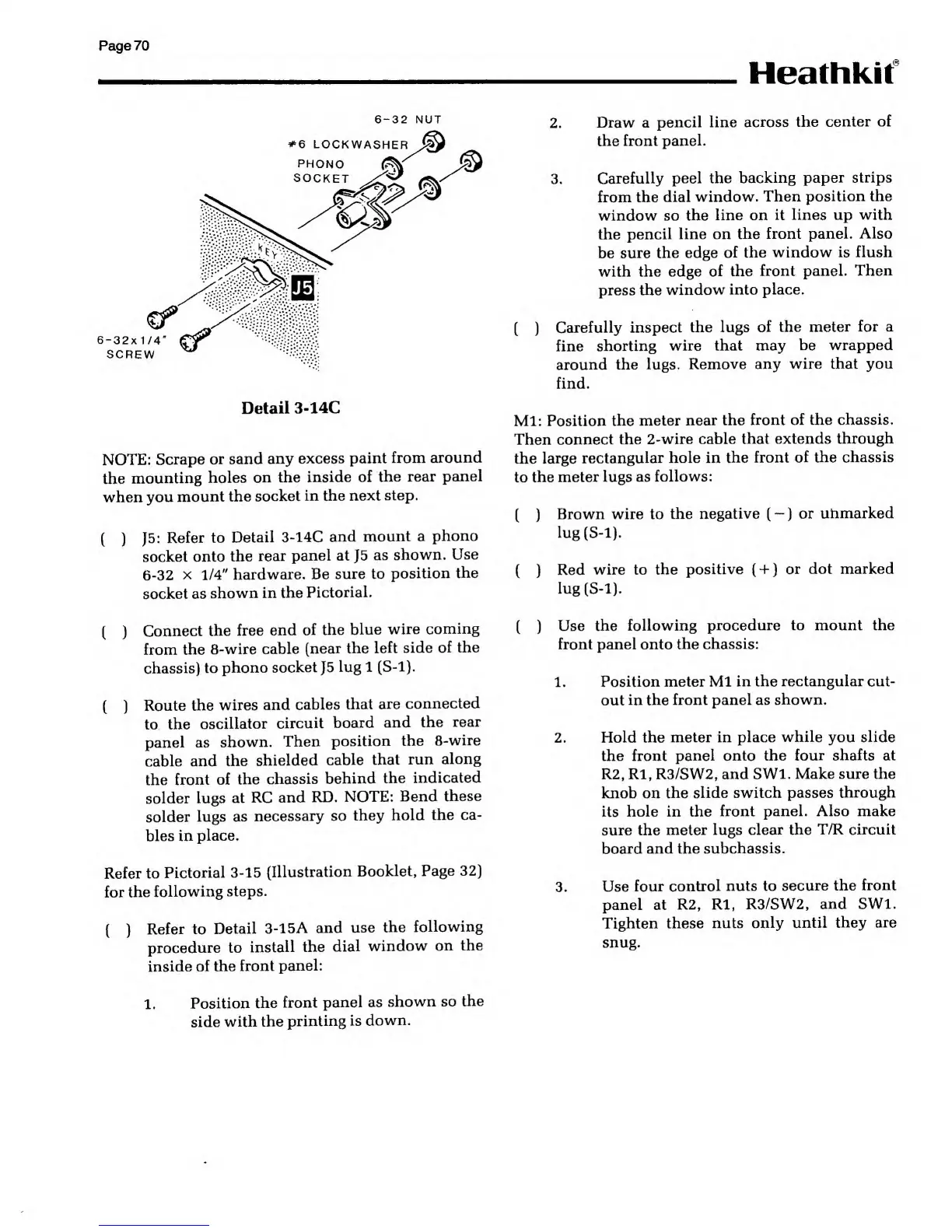

Detail 3-14C
NOTE:
Scrape
or sand
any
excess paint
from
around
the
mounting
holes
on the
inside of
the rear
panel
when you
mount the
socket
in the
next step.
( ) J5:
Refer to
Detail 3-14C
and
mount a
phono
socket onto
the
rear
panel at
J5
as
shown.
Use
6-32 x
1/4"
hardware. Be
sure to
position
the
socket as
shown in the
Pictorial.
(
)
Connect the
free
end
of the
blue
wire
coming
from the
8-wire
cable
(near the
left side
of the
chassis)
to
phono
socket
J5
lug
1
(S-l).
(
)
Route the
wires
and
cables
that
are
connected
to the
oscillator
circuit
board
and
the
rear
panel as
shown.
Then
position
the
8-wire
cable and
the
shielded
cable that
run
along
the
front of
the
chassis
behind
the
indicated
solder lugs
at
RC and
RD.
NOTE:
Bend
these
solder
lugs as
necessary so
they
hold
the ca-
bles in
place.
Refer to
Pictorial
3-15 (Illustration
Booklet,
Page
32)
for
the
following
steps.
(
)
Refer
to
Detail
3-1
5A
and
use
the
following
procedure to
install the
dial
window
on the
inside of
the
front
panel:
1.
Position
the
front
panel as
shown so
the
side
with the
printing is
down.
2.
Draw a
pencil line
across the
center of
the front
panel.
3.
Carefully
peel the
backing paper
strips
from the
dial
window. Then
position the
window so
the line on
it lines up with
the
pencil line on
the front panel.
Also
be sure
the edge
of the
window is flush
with the edge
of the
front panel.
Then
press the
window into place.
(
)
Carefully inspect
the lugs
of the
meter for a
fine
shorting wire
that may
be wrapped
around the lugs.
Remove
any wire that
you
find.
Ml: Position
the meter
near the
front of the chassis.
Then
connect the
2-wire cable
that extends
through
the
large
rectangular hole in
the front
of the chassis
to
the meter lugs as
follows:
(
)
Brown wire to
the
negative
(-)
or
unmarked
lug
(S-l).
(
)
Red
wire to the
positive
(
+
)
or dot marked
lug (S-l).
(
)
Use the
following
procedure to mount the
front panel onto the
chassis:
1.
Position meter Ml in the
rectangular cut-
out
in
the
front panel as
shown.
2. Hold the
meter in place
while
you
slide
the front
panel onto the
four shafts
at
R2,
Rl, R3/SW2, and
SWl. Make sure the
knob on the
slide switch passes
through
its
hole in the
front panel. Also make
sure the
meter lugs clear the
T/R circuit
board and the
subchassis.
3. Use
four control
nuts to
secure the
front
panel at
R2, Rl,
R3/SW2,
and SWl.
Tighten these
nuts
only until
they are
snug.
