METER
..........
3
LllG
TEKhilNAI
STRIP
I
-

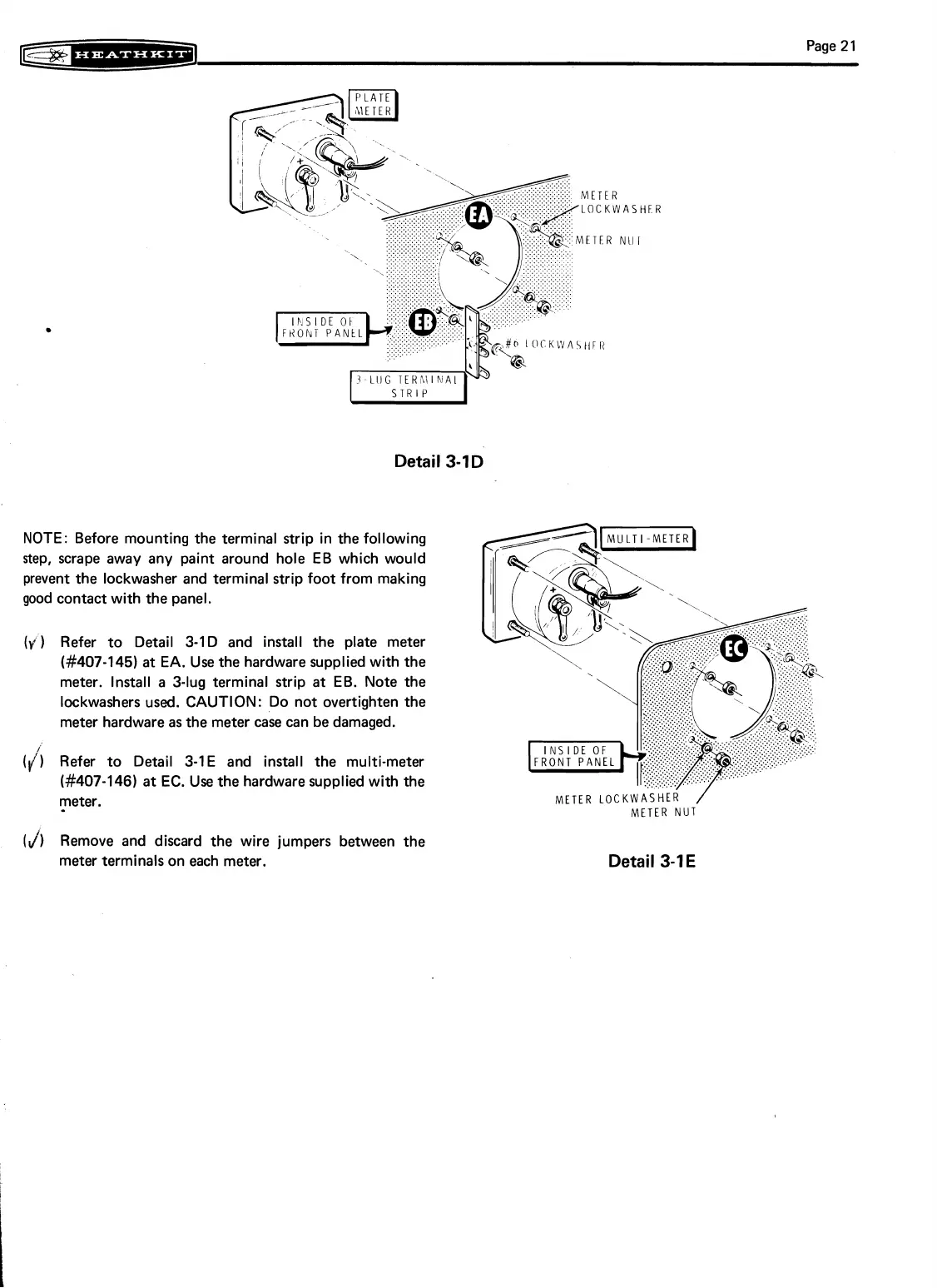

Detail 3-1D
NOTE: Before mounting the terminal strip in the following
step,
scrape away any paint around hole EB which would
prevent the lockwasher and terminal strip foot from making
good contact with the panel.
(y
)
Refer to Detail 3-ID and install the plate meter
(#407-145) at EA. Use the hardware supplied with the
meter. Install a 3-lug terminal strip at EB. Note the
lockwashers used. CAUTION: Do not overtighten the
meter hardware as the meter case can be damaged.
i
(dl
Refer to Detail 3-1E and install the multi-meter
(#407-146) at EC.
Use
the hardware supplied with the
(4)
Remove and discard the wire jumpers between the
meter terminals on each meter.
METER LOCKWASHER
/
METER
NUT
Detail 3-1E
To Next Page
