Heatmiser Touch Series - Wiring Diagram - Touch Carbon; Switch Live Output

32
Model: Touch Carbon

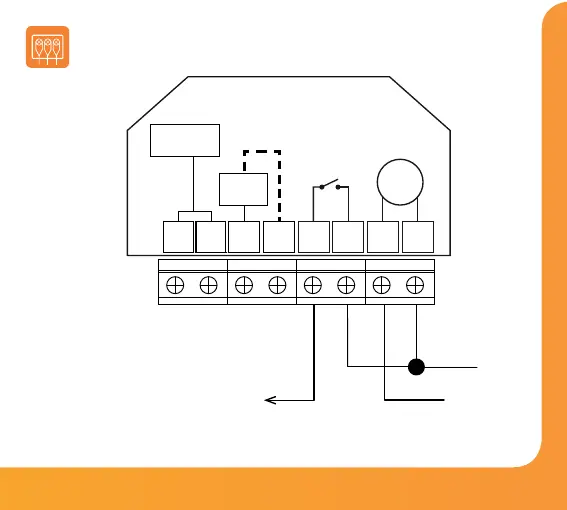

Wiring Diagram - Touch Carbon
Switch Live Output
NEUTRAL
MODBUS
INTERFACE
Model: Touch Carbon
LIVE
230V SUPPLY IN
SWITCHED LIVE TO BOILER
230VAC
RT1 - A2 A1 N L B
This product must only be installed by a qualied electrician
and comply with local installation regulations.
Floor
Sensor
A
