Heatmiser Touch Series - Switch Live to UH8

35

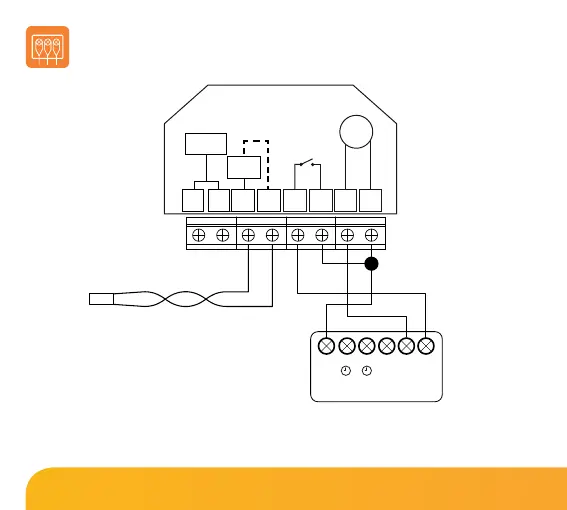

Wiring Diagram - Touch Carbon
Switch Live to UH8
This product must only be installed by a qualied electrician
and comply with local installation regulations.
MODBUS
INTERFACE
Model: Touch Carbon
230VAC
RT1 - A2 A1 N LA
FLOOR PROBE
LSE NL
1 2
UH8
Floor
Sensor
Touch Series
B
