!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!IPCAM User Manual
- 13 -
2.5.1 Multi-Device Settings
! Add cameras in LAN
In the Multi-Device Settings page,you can see all devices searched in LAN.The 1st Device
is this device deault.You can add more cameras list in LAN for monitoring. This Web
software supports up to 4 IP Cameras online simultaneously.Click “
The 2ND
Device”
and Double click the item in the “Device List in Lan”, Alias$Host and Http Port will fill in
automatically.Enter the correct username and password then click “add”.Add more
cameras in the same way.

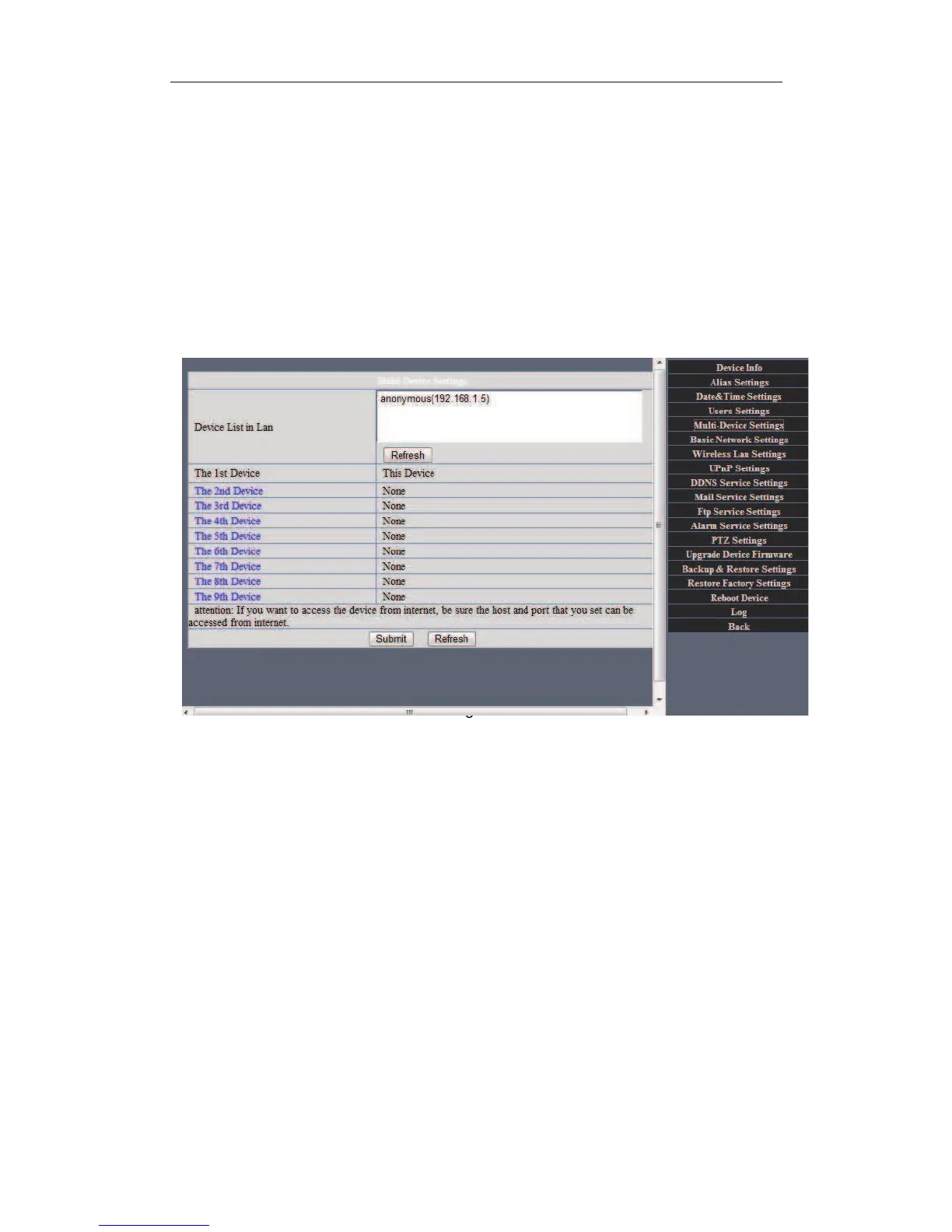

Figure 2.10
! Add cameras in the Internet
Firstly,make sure the camera added can access in the Internet with the IP address or
DDNS domain.like this:http:/219.133.200.165: 81 or http://IPCAM.dyndns.org:9008
You can enter the Host: 219.133.200.165 port: 81 or Host: IPCAM.dyndns.org port:
81.Enter the correct username and password then click “add”.Add more cameras in the
same way as shown in Figure 2.11.
