Operating Instructions • Overhead Suspension AT2000 CPK • 03/2020 • 106-29021
Operation
12
6 Operation
The AT2000CPKoverheadsuspension can only be
operated with the Autotool2000CPK tool.
6.1 Switching the tool on and off
f Observe the operating instructions for the
Autotool2000CPK.
à Operating instructions for Autotool2000 CPK
6.2 Inserting the band chain in the tool
f Observe the operating instructions for the
Autotool2000CPK.
à Operating instructions for Autotool2000 CPK
6.3 Putting the tool into working position
f Grab the tool by the handle and carefully pull into
working position using the balancer (cable pull).
; The tool is in working position.
6.4 Operating the tool
f Observe the operating instructions for the
Autotool2000CPK.
à Operating instructions for Autotool2000 CPK
6.5 Emptying the waste bin
The material waste falls into the integrated waste bin of
the Autotool2000CPK.
f Empty the waste bin of the tool regularly and dispose
of the wastes properly.
f Observe the operating instructions for the
Autotool2000CPK.
à Operating instructions for Autotool2000 CPK
6.6 Moving tool from working position
f Using the tension force of the balancer (cable pull),
carefully guide the tool upwards.
; The tool is in its starting position.

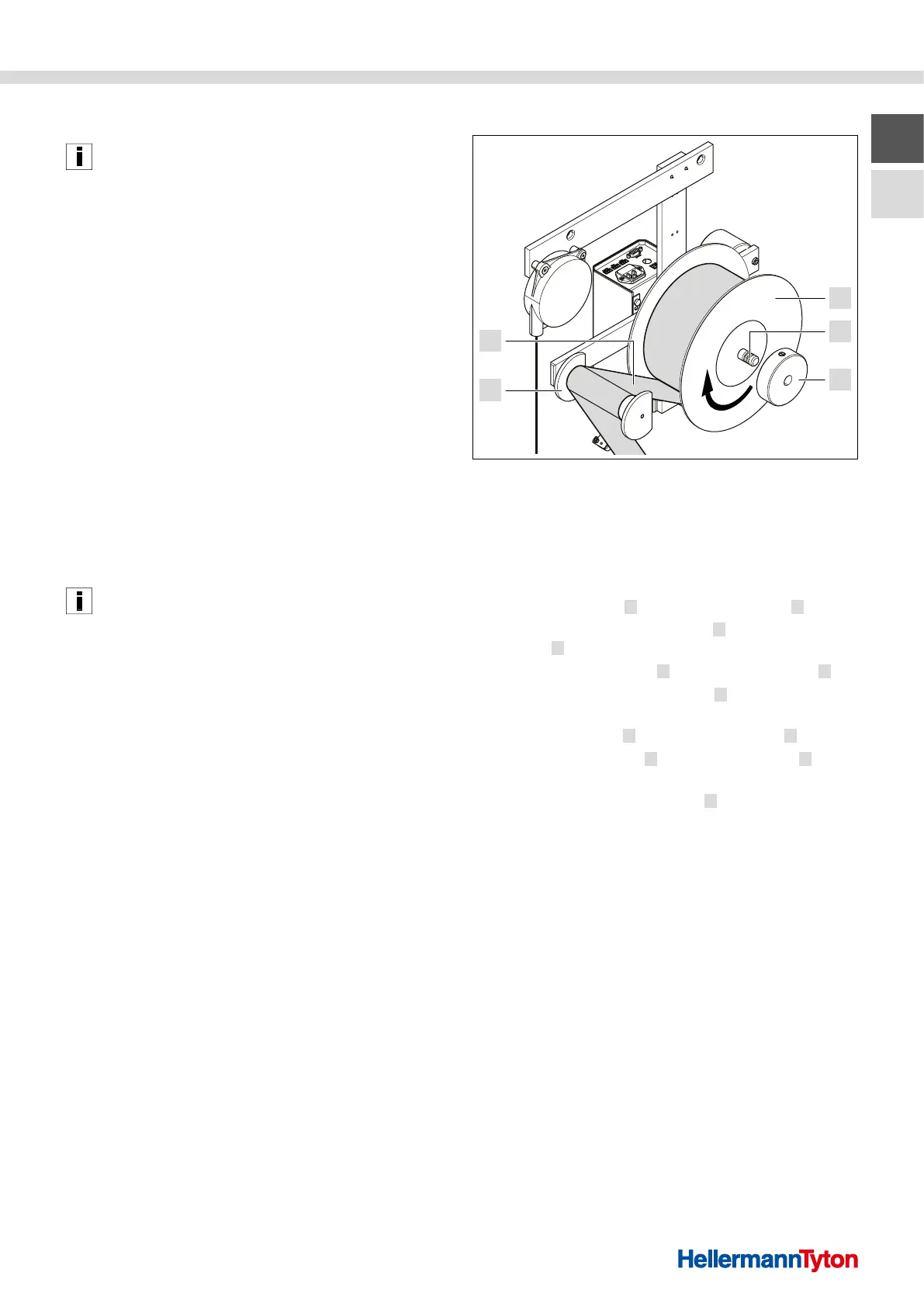

6.7 Replacing empty cable tie reels
4
5
3
1
2
Replacing empty cable tie reels
1 Cable tie reel
2 Reel retainer
3 Clamp ring
4 Guide roller
5 Band chain
1 Pull the clamp ring 3 off of the reel retainer 2 .
2 Remove the empty cable tie reel
1 from the reel
retainer 2 and store it properly.
3 Push a full cable tie reel
1 onto the reel retainer 2 .
f Make sure that the cable tie reel
1 can be unwound
clockwise.
4 Put the clamp ring
3 onto the reel retainer 2 .
5 Guide the band chain
5 over the guide roller 4 to
the tool.
f Make sure that the band chain
5 is not twisted.
; The cable tie reel is replaced.
