Users Manual for T4000+ Series 10

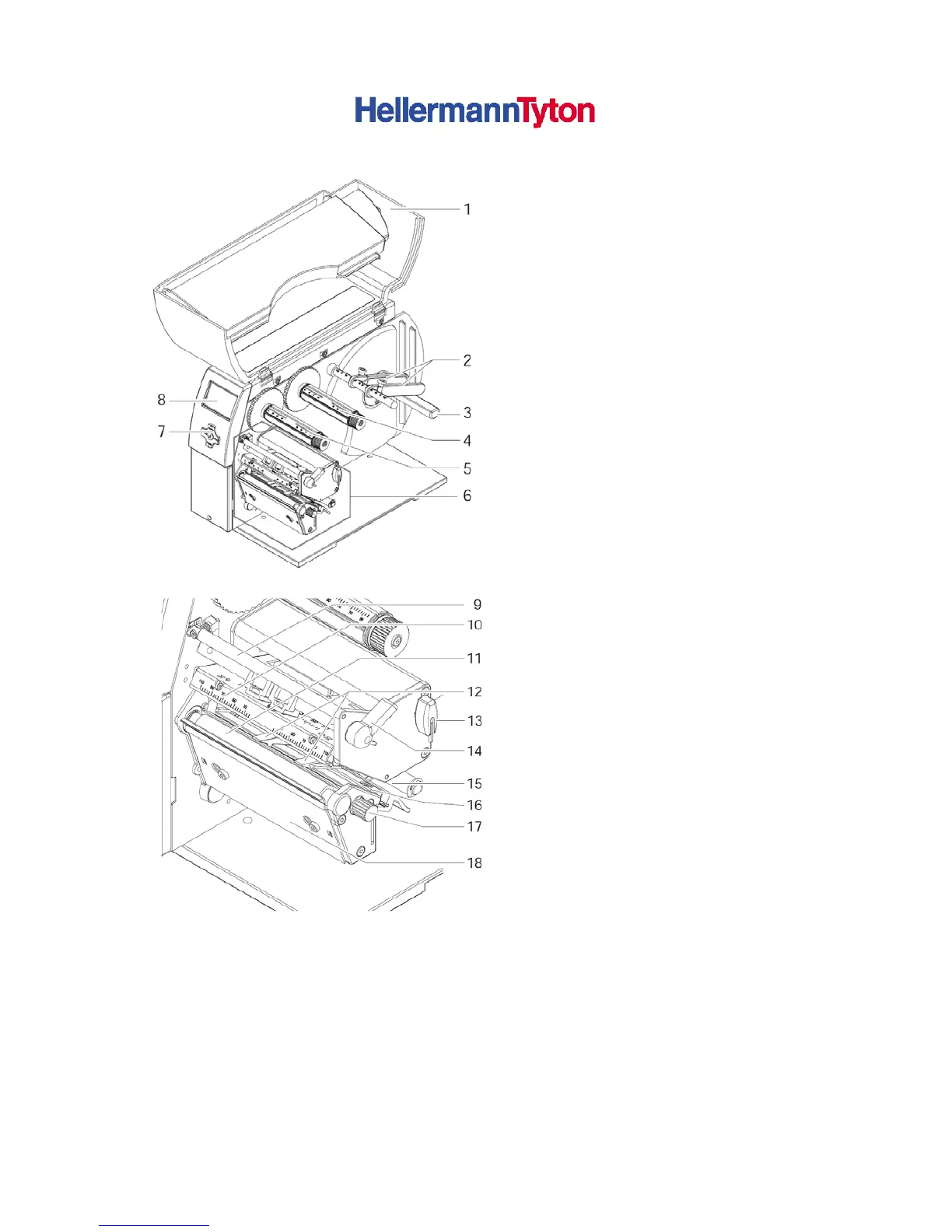

3.2.1. Printer overview
(1) Cover
(2) Margin Stops
(3) Roll Retainer
(4) Ribbon supply hub
(5) Ribbon take-up hub
(6) Print mechanics
(7) Navigator pad
(8) Display
Figure 2 Overview
(9) Ribbon deflection roller
(10) Print head retainer with print head
(11) Print roller
(12) Guides
(13) Allen Key
(14) Print head locking lever
(15) Guide roller
(16) Label sensor
(17) Knob for guide adjustment
(18) Tear-off plate
Figure 3 Print mechanics
