Users Manual for T4000+ Series 22
5.6. Removing and installing the rewind guide plate, dispense plate or
tear-off plate
To convert the printer for use in another operating mode, a rewind guide plate, a dispense
plate or a tear-off plate may need to be installed.
ATTENTION!
For printer versions with a locking system on the rewind assist roller, the locking system on
the rewind assist roller must be removed (see 5.7, page 21) for operation in Rewind mode
before installation of the rewind guide plate.
Removing a plate
1. Loosen screws (2) several turns.
2. Slide plate (1) to the right and remove it.
Installing a plate
3. Place plate (1) onto the screws (2) and
slide to the left completely
4. Tighten screws (2).

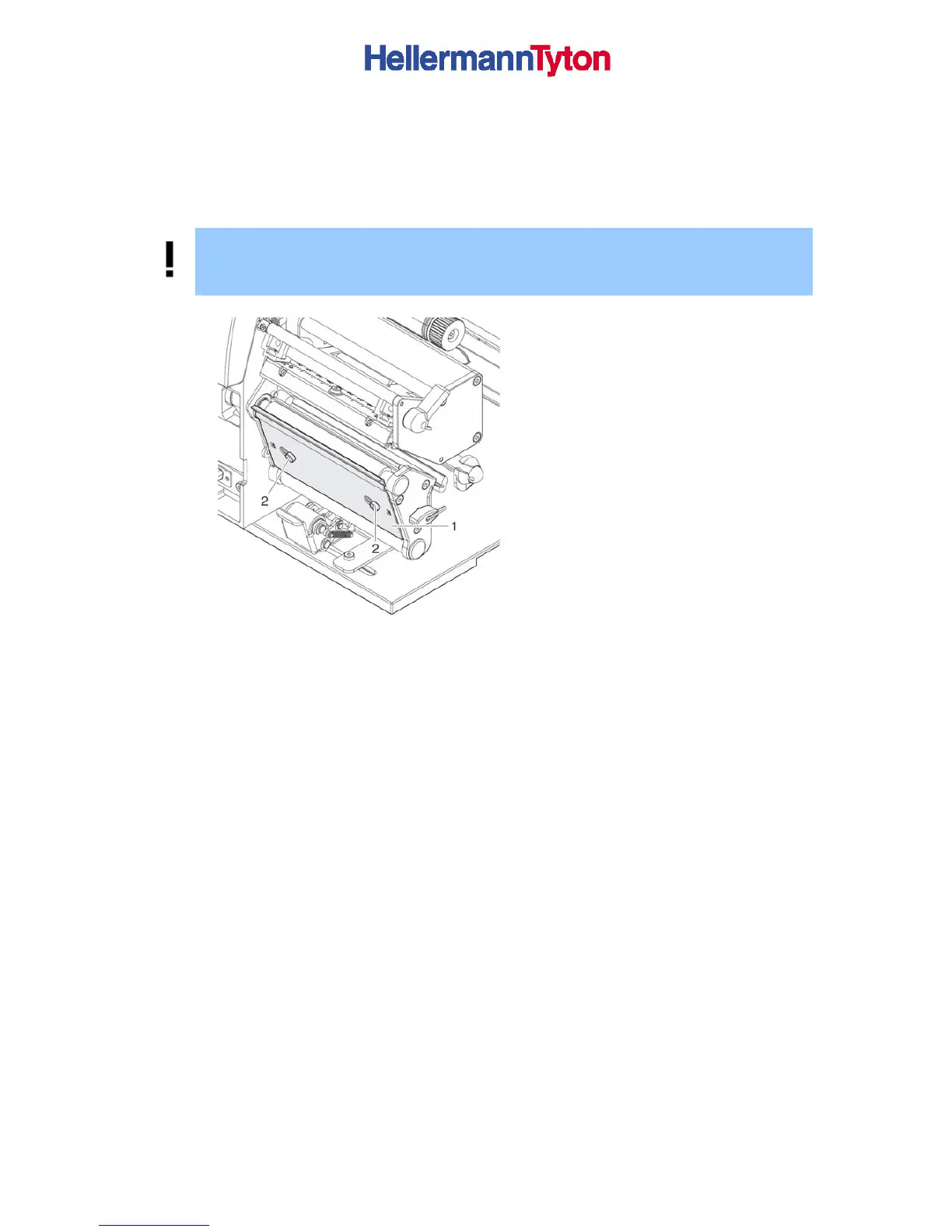

Figure 13 Removing and installing tear-off
plate
