Users Manual for T4000+ Series 21
5.4. Setting the Feed Path of the Transfer Ribbon
Transfer ribbon wrinkling can lead to print image errors. Transfer ribbon deflection can be
adjusted so as to prevent wrinkles.
NOTICE!
The adjustment is best carried out during printing.
1. Read current setting on the scale (1)
and record if necessary.
2. Turn screw (2) with Allen key and
observe the behaviour of the ribbon. In
the + direction, the inner edge of the
ribbon is tightened, and the outer edge
is tightened in the - direction.

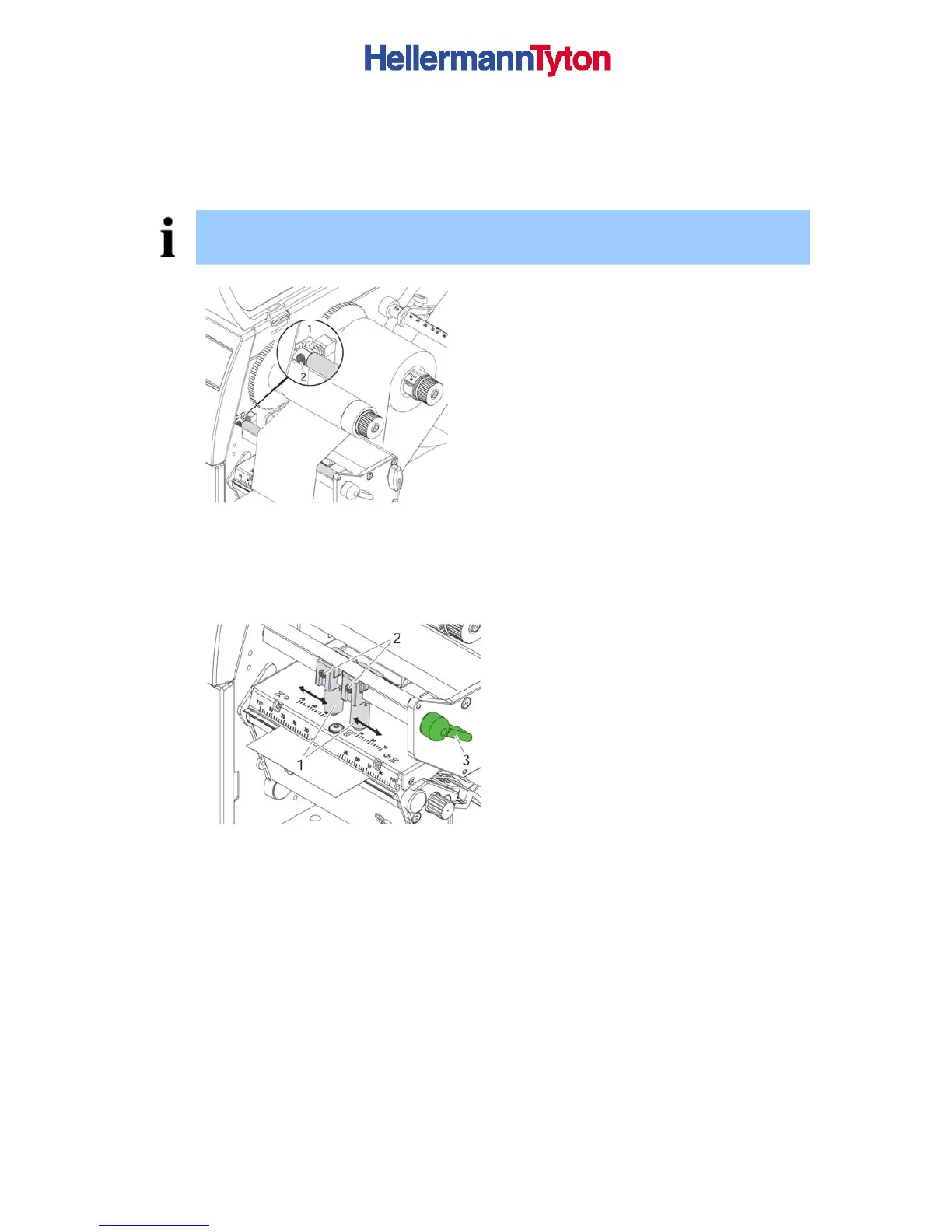

Figure 11 Setting the feed path of the transfer ribbon
5.5. Setting the Head Locking System
The print head is pushed on via two
plungers (1). In the basic setting the
plungers are set in the middle of the print
head retainer. This setting can be used for
the most applications.
3. If the print density decreases in the
outer areas when using very large
media, the plungers can be displaced :
4. Turn lever (3) clockwise to lock the print
head.
5. Loosen threaded pins (2) at the plungers
(1) with Allen key.
6. Displace plungers symmetrically as
necessary maximal to the scale value
70.
7. Tighten the threaded pins (2).
Figure 12 Setting the head locking system
