2-5
INFORMATION FOR PREPARATION

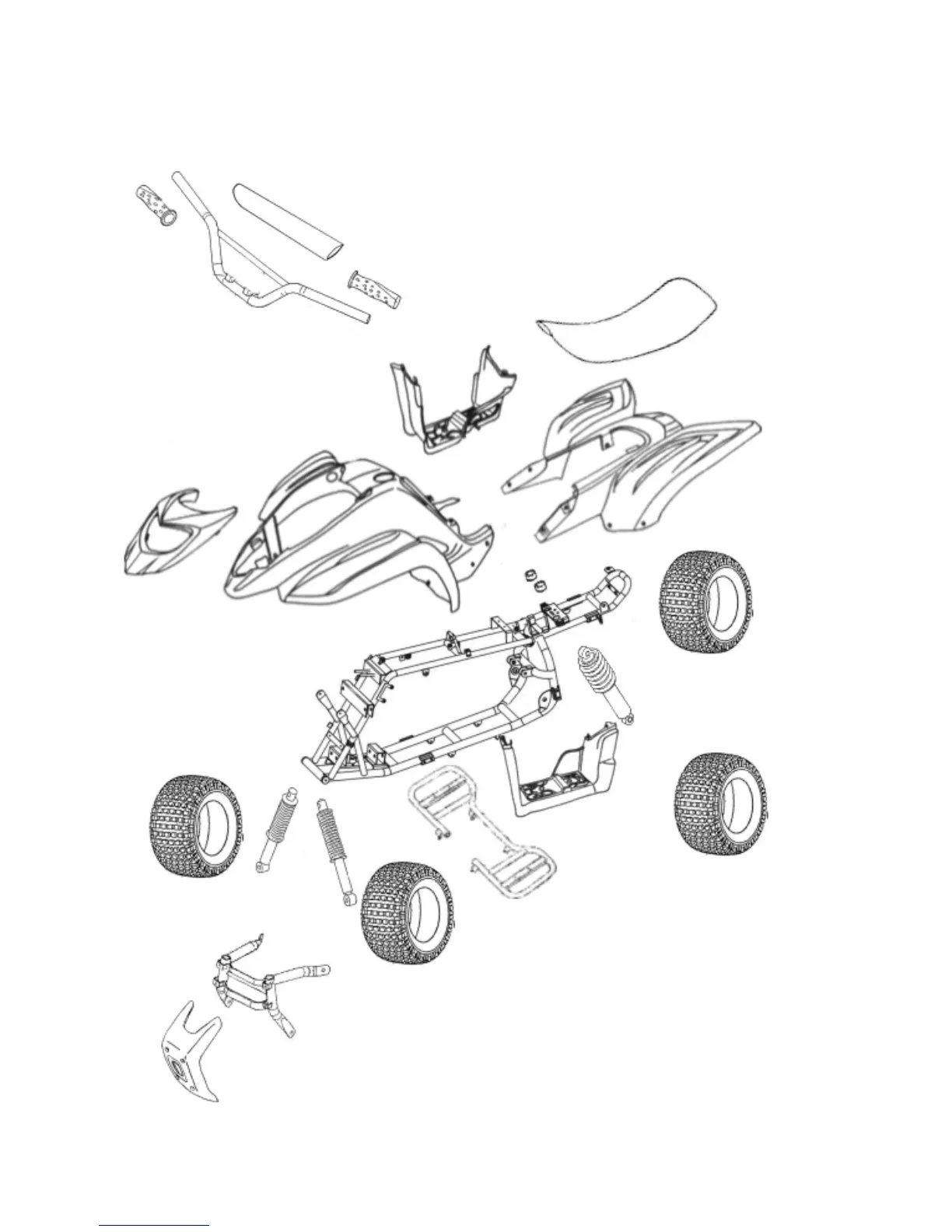

The following drawing that shows the disassembling situation of the cover parts for ATV-50/90/100.
