HER CHEE ATV-90 - Inlet Valve Disassembly

5－
7
FUEL SYSTEM

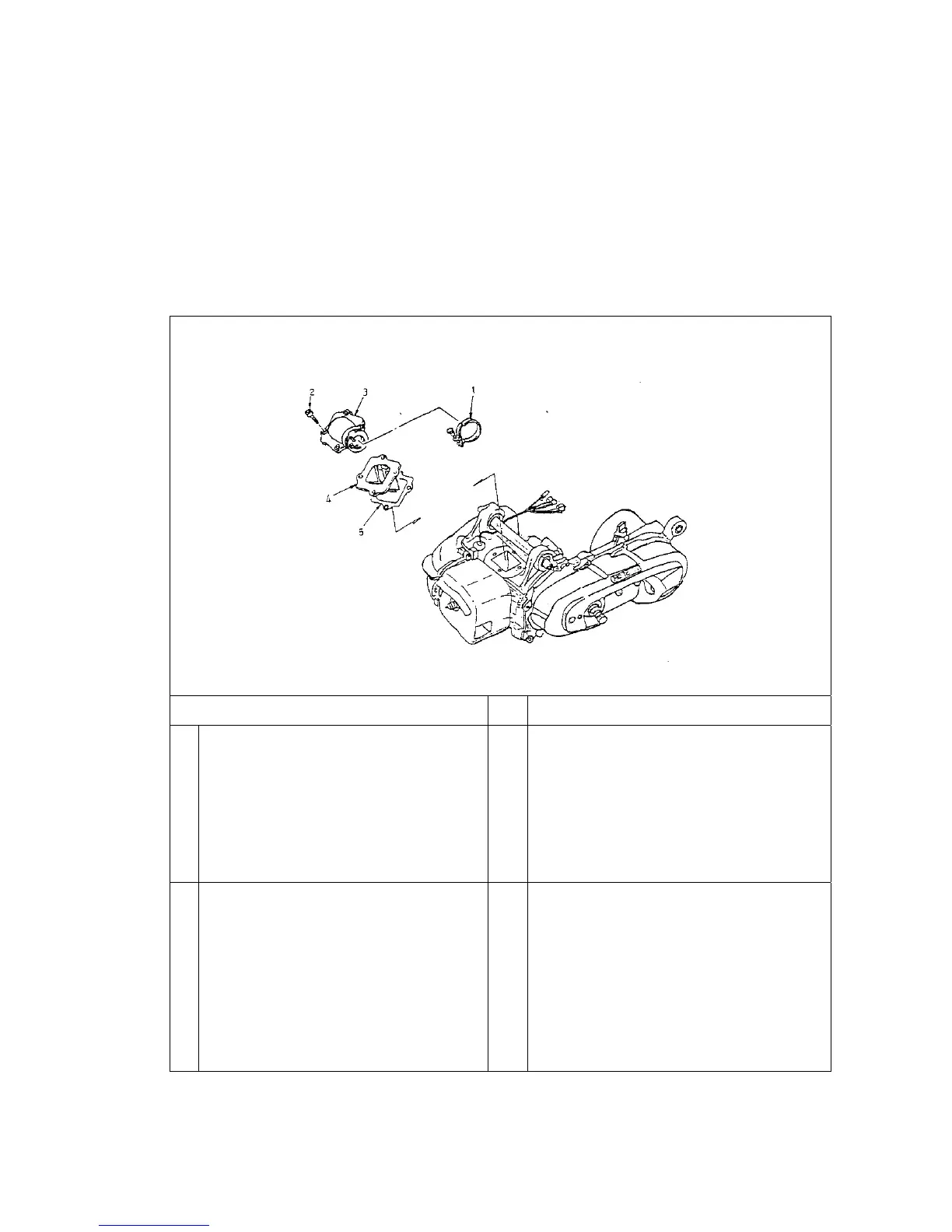

Disassembly of Inlet Valve
h Disassembly of handle bar & front cover.
h Disassembly of fuel tank
h Disassembly of carburetor.
Operation / Parts Name Q’ty Remarks
1
2
3
4
5
Disassembly
Intake manifold hose clamp
Hex washer face bolt
Intake manifold
Reed valve ass’y
Reed valve gasket
1
4
1
1
1
4
5
Assembly
5→1
Reed valve ass’y
Reed valve gasket
‧Assembling with sequence in reverse
of disassembly.
＊WARNING: Using new gasket , the
gasket must aim at hole of reed
valve.
＊WARNING: confirm no leaking of the
reed valve and manifold.
