HER CHEE ATV-90 - Kick Starter Disassembly

8-3
Starter / Driving Disc / Clutch / Transmission Disc

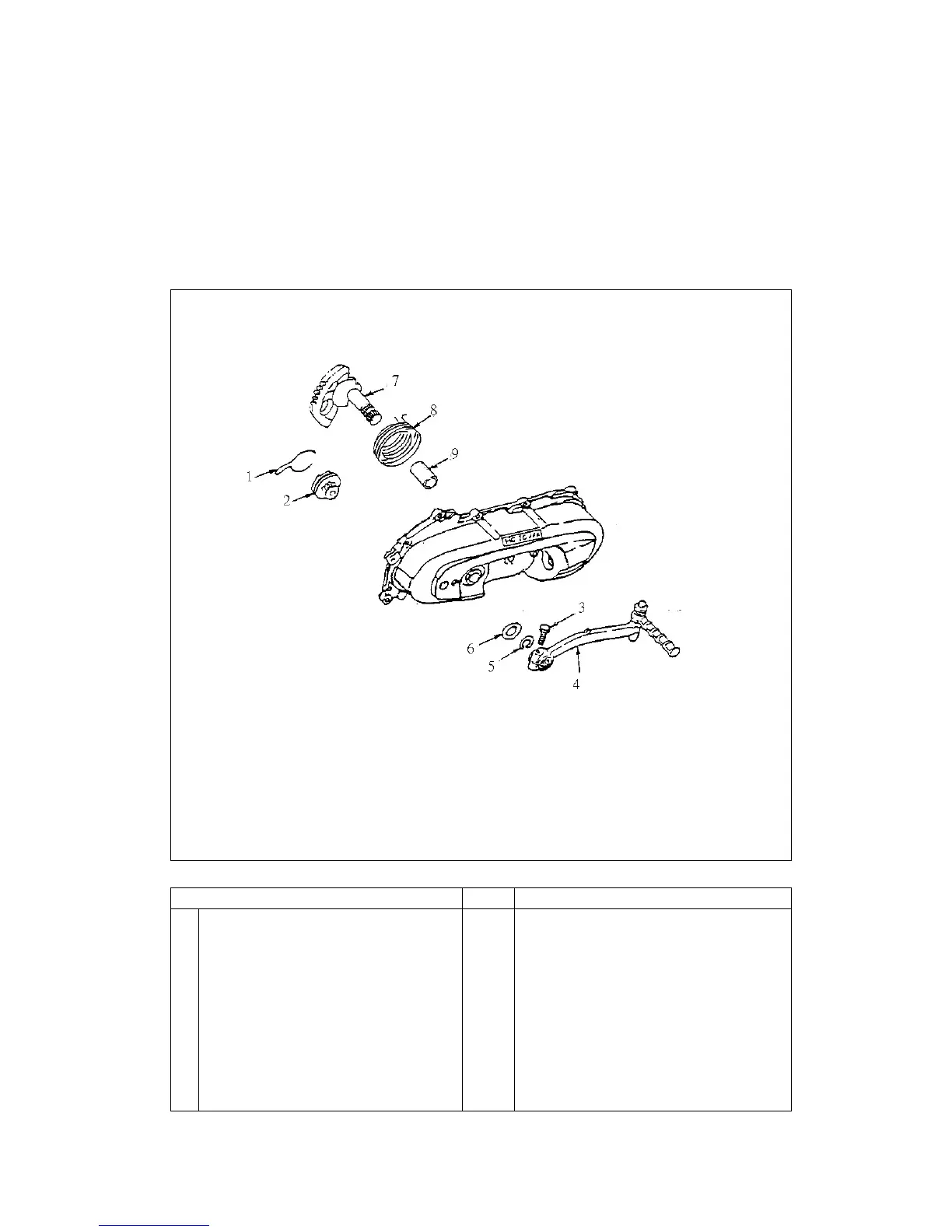

Disassembly of Kick Starter
z Disassembly of left crank case cover.
Operation / Parts name Q’ty Remark
1
2
3
4
5
6
7
8
9
Disassembly
Kick pinion spring clip
Kick pinion
Hex washer face bolt
Kick crank
External ring clamp
Plain washer
Starting shaft ass’y
Starting shaft reset spring
Bushing
1
1
1
1
1
1
1
1
1
＊WARNING: Rotating pedal kick to
crank and remove the case cover
assembly.
