HER CHEE ATV-90 - Air Filter Replacement

5－
9
FUEL SYSTEM
Replace Air filter
z Disassembly of oil tank.
z Remove 2 Hex Bolt and move to the rear of the Air Cleaner Ass’y.
z Remove 3 Tapping Screw Truss Head Phillips.
z Remove Air Cleaner case cap.
z Replace new Air filter.

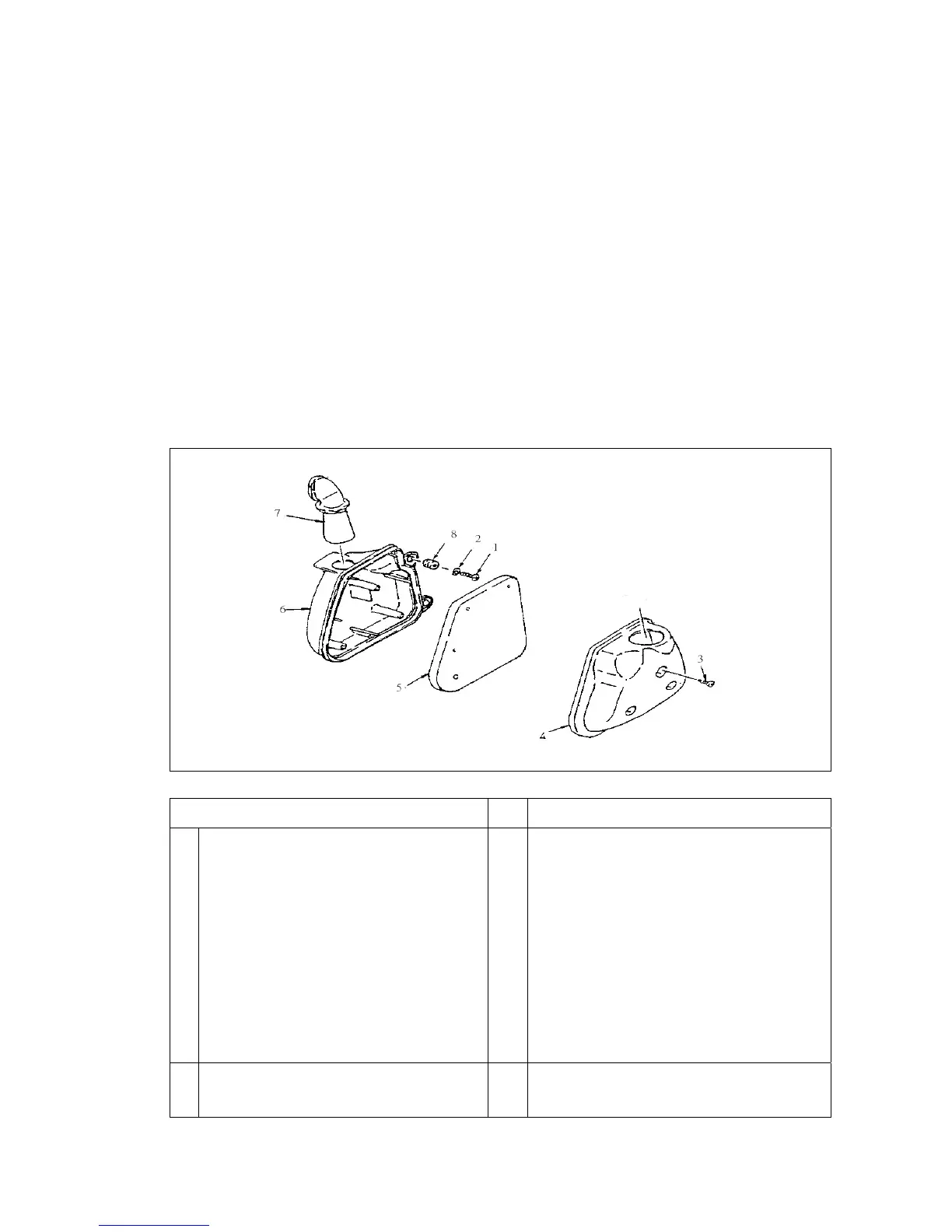

Disassembly of Air Cleaner Ass’y
z Disassembly of handle bar and front cover.
z Disassembly of oil tank.
Operation / Parts Name Q’ty Remarks
1
2
3
4
5
6
7
8
Disassembly
Hex socket bolt
Plain washer
Self-tapping screw
Air cleaner case cap
Air filter
Air cleaner case
Cleaner guide pipe
Grommet
2
1
3
1
4
1
2
1
Assembly
8→1
z Operating with sequence in reverse of
disassembly.
