z CHECK AND ADJUST

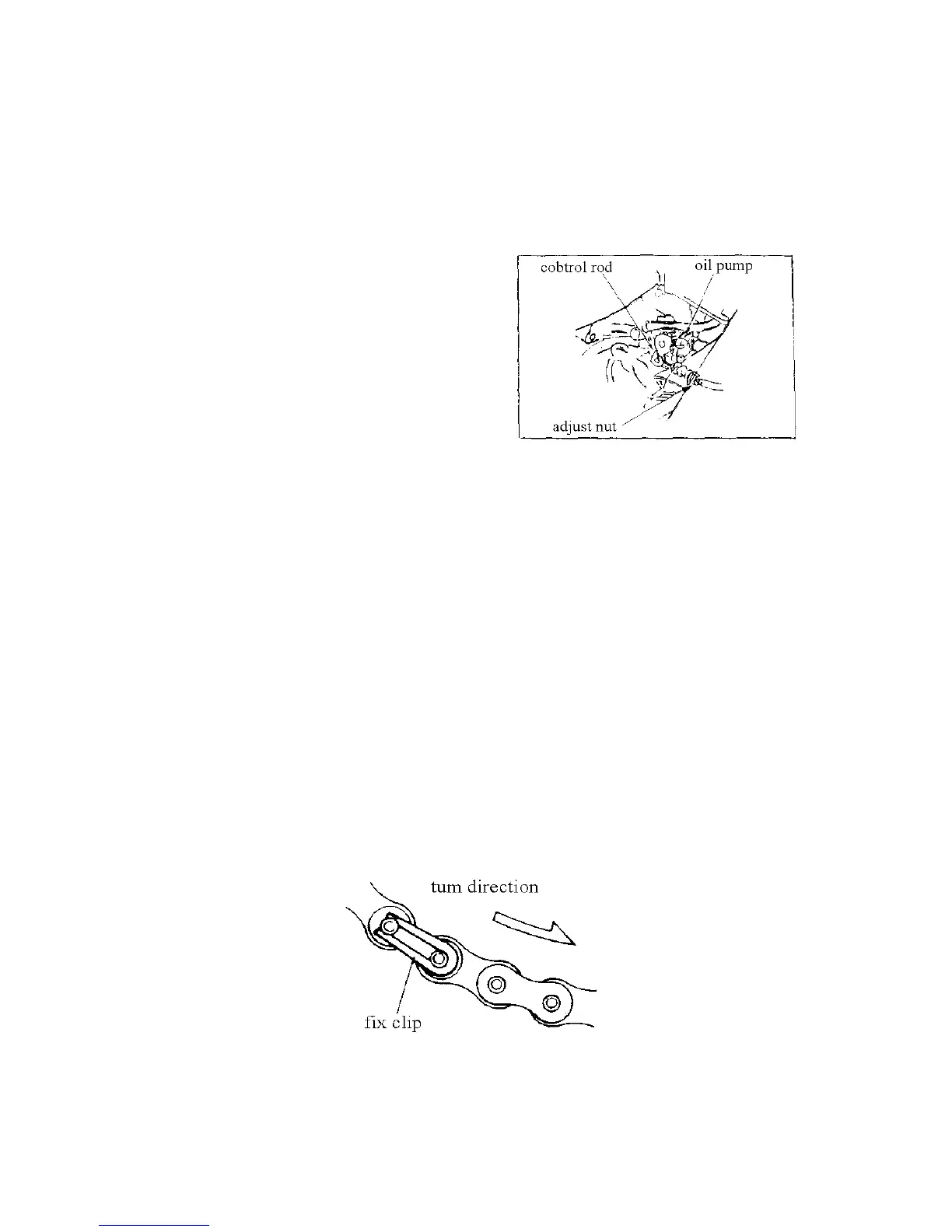

Adjustment of Oil Pump
＊WARNNING:
Going on this operation after adjusting
and checking the guide wiring of throttle.
• The tolerance within 1 mm of the oil
pump control cable is good. Starting
the engine, push slightly the throttle
to feed oil. At same time of rising the
engine rotation, confirm the function
of control rod.
• The condition will be appeared with bad synchronizing as follows :
＊ Starting difficult and having smoke when opening degree of oil pump’s control
rod is too big.
＊ Piston will be burnt when the opening degree of oil pump’s control rod is too
small.
Adjustment of Drive Chain
z Loose 4 Hex Bolts on Rear Brake Panel.
z Adjust the drive chain adjuster to proper chain tolerance 10 ~ 20 mm (unload).
z Tie up 4 Hex bolt on Rear Brake Panel.
z Lubricate the chain.
CANTION: Beware the direction of chain fix clip if disassembly the chain.
