Crank Case / Crank Shaft
Disassembly of Crank Case

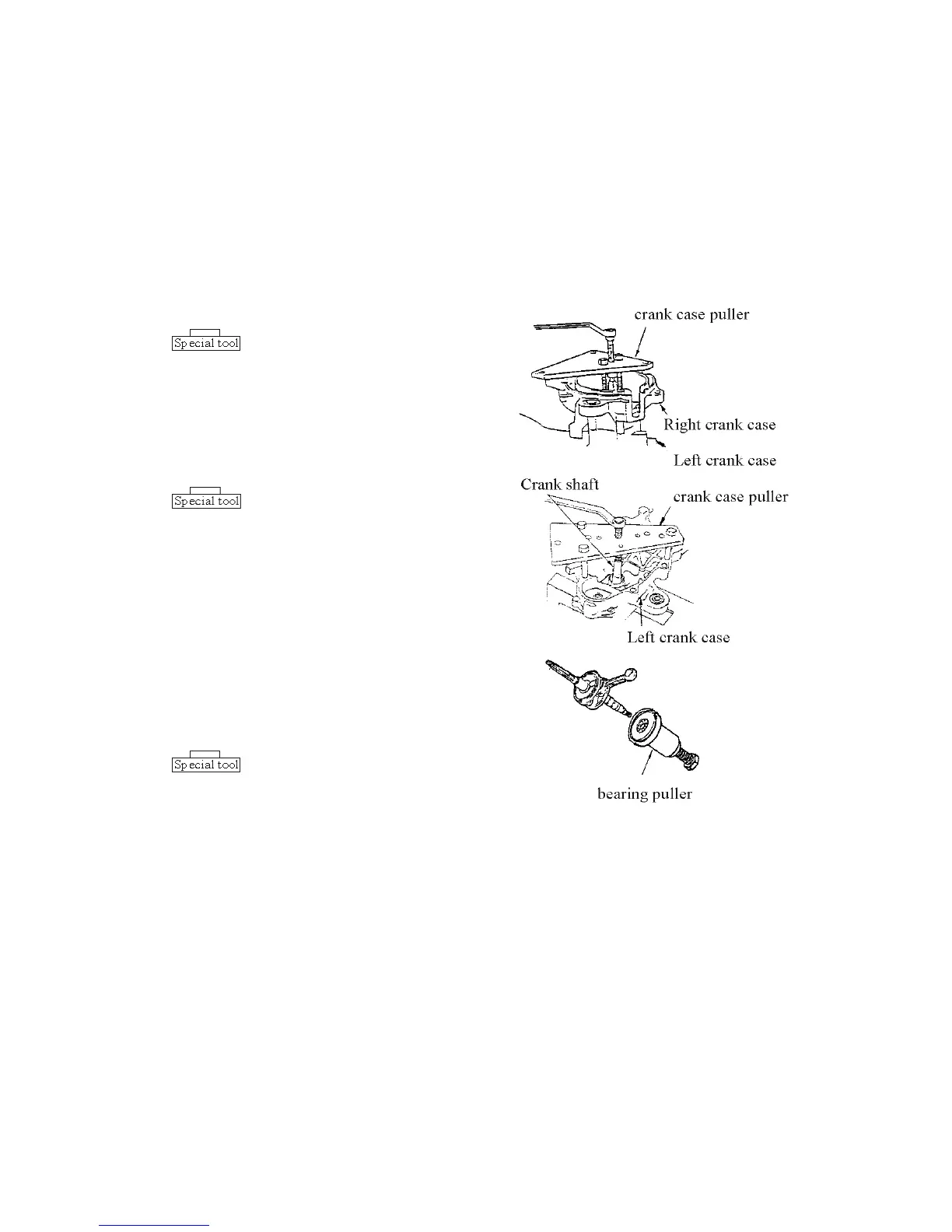

z Install the puller on right crank case,
separate the R. crank case and L.
crank case.
: Crank case puller (TLJT-03)
z Install the puller on left crank case,
remove the crank shaft from the
crank case.
: Crank case puller (TLJT-03)
＊WARNING:
Don’t knock the crank shaft when
disassembling.
z Use the bearing puller to remove the
crankshaft bearing from crank shaft,
then remove the R/L crank case.
: Bearing puller ( TLJT-00)
＊WARNING:
Must remove the oil seal when
separate the crank case, and never use the
old oil seal.
Assembly of Crank Case
z Clean the crank case with gasoline, and check each part whether damaged or
cracked.
＊WARNING:
z Smear of oil on sliding surface of each shaft in crank case after checking.
z Cleaning the washer dust of joint face, and amend the part damage with oil stone.
