HER CHEE ATV-90 - Fuel Tank Disassembly

5－
8
FUEL SYSTEM

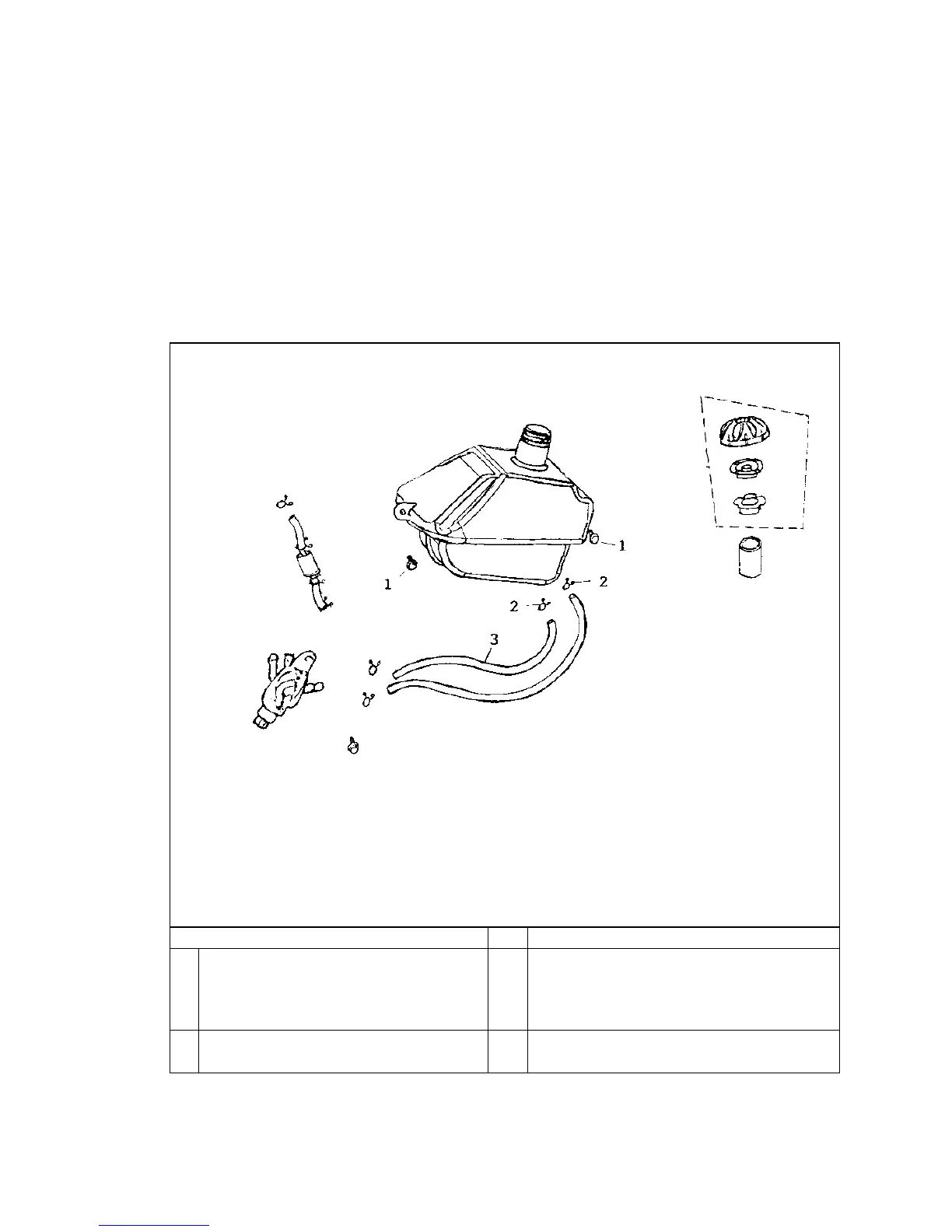

Disassembly of Fuel Tank
z Disassembly of handle bar and front cover.
＊ WARNING:
․No fire.
․Shall be wiped off when fuel overflowed.
Operation / Parts Name Q’ty Remarks
1
2
3
Disassembly
Hex bolt
Clip
Fuel Tube
2
2
2
Assembly
3→1
z Operating with sequence in reverse o
f
disassembly.
