3-4
CHECK AND ADJUST

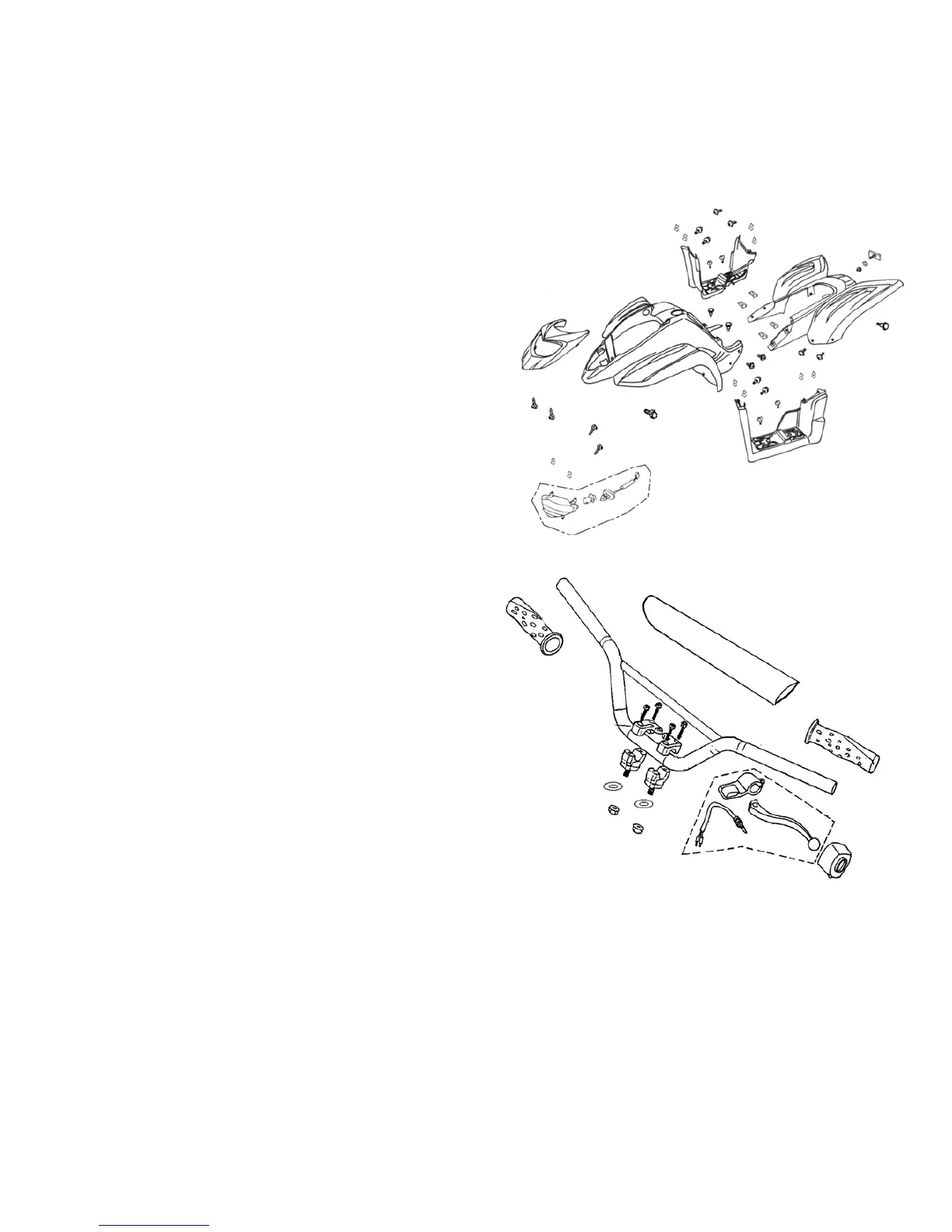

Disassembly of External Parts
z Remove the external parts for check
and adjustment.
Disassembly the Rear Cover:
z Pull the Seat Releaser Unit and take
off Seat Ass’y.
z Remove 4 Pan Flat Head Phillips
Bolt.
z Remove 2 Ladder Bolt.
z Remove 4 Nylon Nut, 2 Plain Washer
and 2 Rubber Washer.
Remove Floor Panel:
z Remove 4 Pan Flat Head Phillips
Bolt.
Disassembly the Handle Bar:
z Remove 2 Tapping Screw Truss Head
Phillips and take off Front Handle
Bar Cover.
z Remove 2 Handle Grip.
z Remove 4 Hex Socket Bolt and take
off the Handle Bar.
z Release 1 Hex Socket Bolt and take
off the R. Lever Ass’y.
z Release 2 Pan Flat Head Phillips Bolt
and take off the L. Handle Switch
Ass’y.
z Release 1 Hex Socket Bolt and take
off the L. Lever Ass’y.
Disassembly the Front Cover:
z Disassembly the Handle Bar.
z Remove the Fuel Tank Cap.
z Pull the Seat Releaser Unit and take
off Seat Ass’y.
z Remove 2 Ladder Bolt. and 4 Pan
Flat Head Phillips Bolt.
z Remove 2 Hex Washer Face Bolt and
4 Plain Washer And 2 Hex Flange
Nut With Serration.
WARNNING:
＊Do not damage & break the cover.
＊Before locking screws, please confirm
the matching is correct of all parts.
z Disconnect Main Switch Wire and
head light wire.
