HER CHEE ATV-90 - Front Wheel (ATV-50) Disassembly;Assembly

11－
2
FRONT WHEEL/FRONT SUSPENSION/ FRONT BRAKE

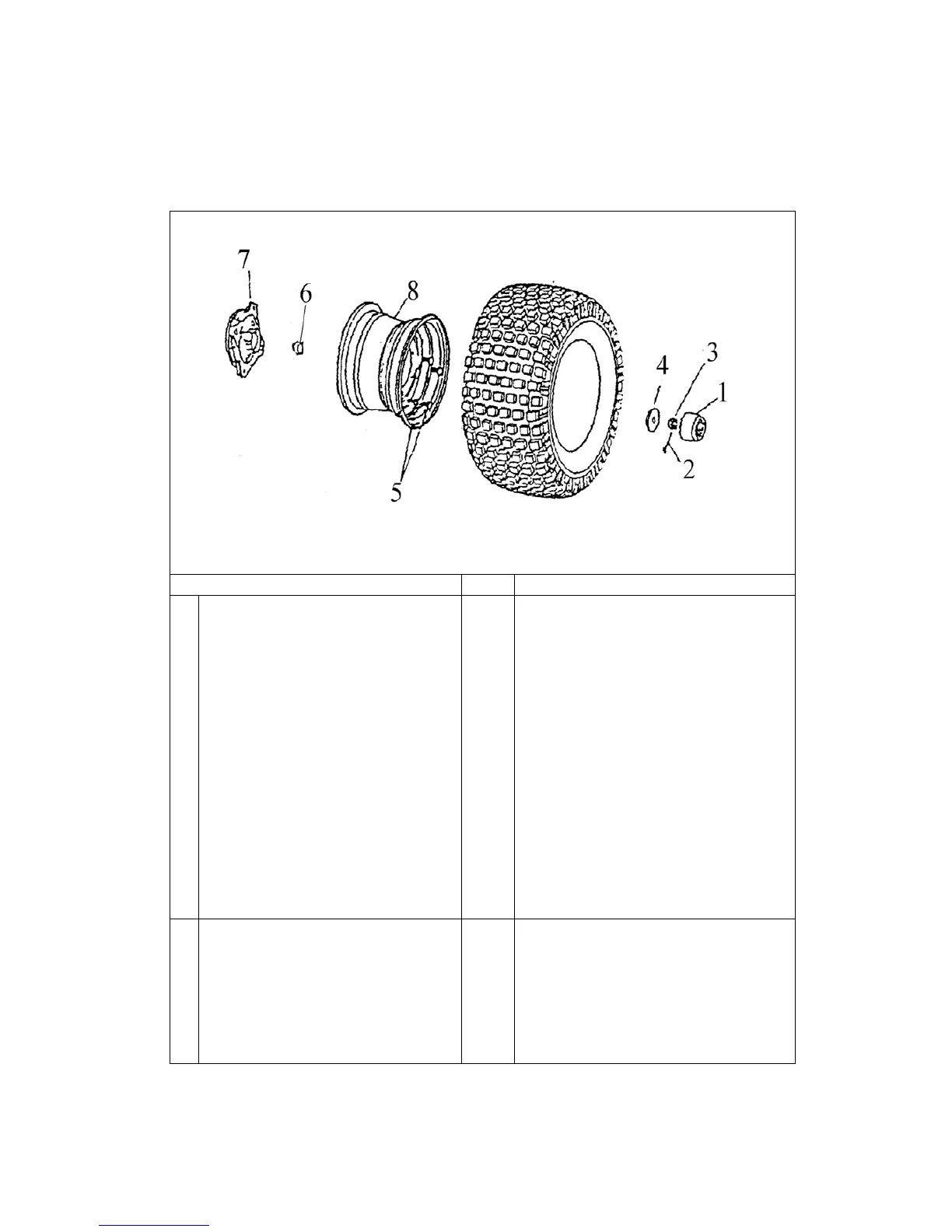

Disassembly of Front Wheels of ATV-50
Operation / Parts name Q’ty Remarks
1
2
3
4
5
6
7
8
Disassembly front wheels (L/R)
Rubber cover
Cotter pin
Scotch nut
Plain washer 12*40*4.5
Disassembly front brake drum
Hex washer face bolt
Front coller
Front brake drum
Rim
2
2
2
2
8
2
2
2
Assembly front brake drum
8→5
Assembly wheels
4→1
z Assembling with sequence
in reverse of disassembly.
＊WARNING:
Change the R/L bearing set
if necessary.
