HER CHEE ATV-90 - Clutch; Transmission Belt Disc Disassembly

8-4
Starter / Driving Disc / Clutch / Transmission Disc

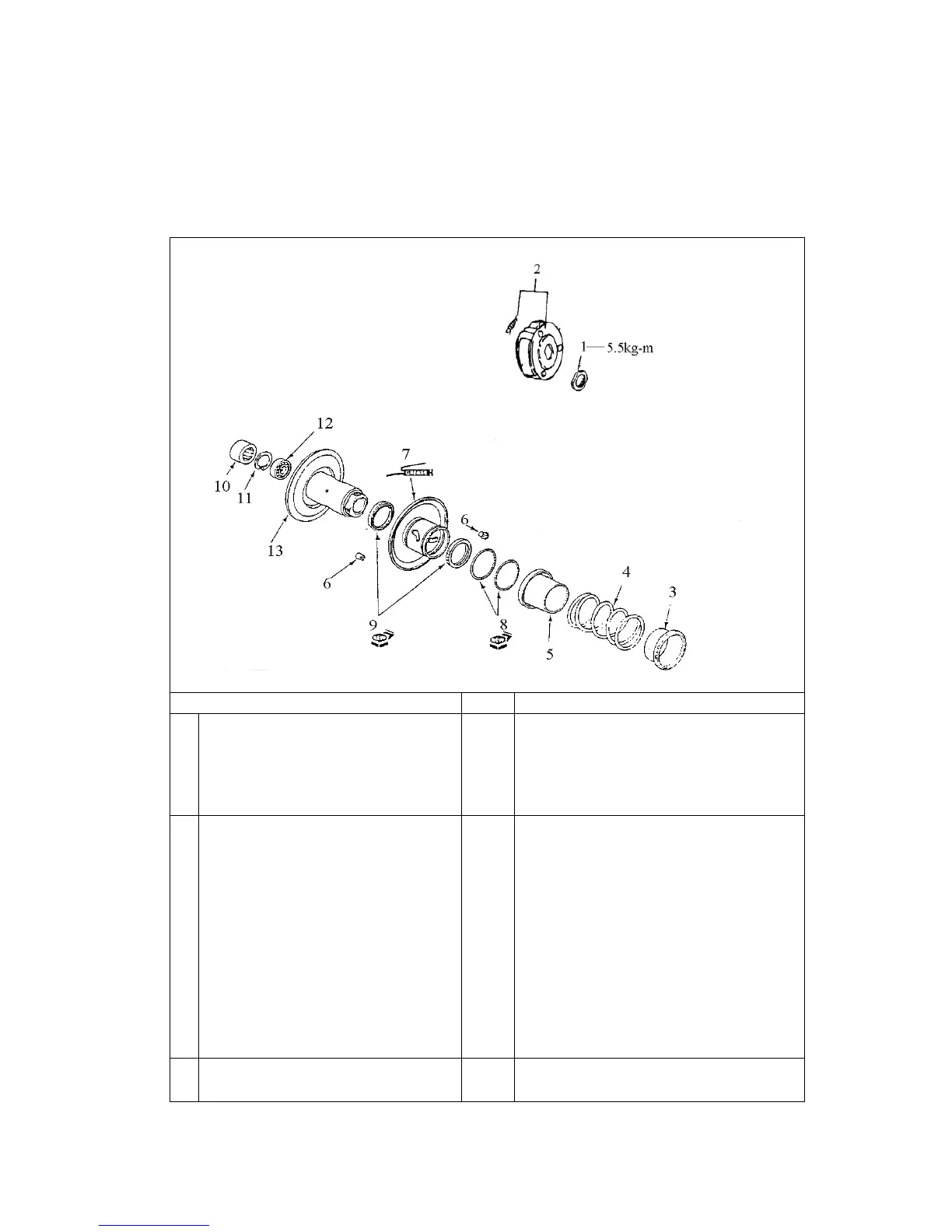

Disassembly of Clutch / Transmission Belt Disc
Operation / Parts name Q’ty Remark
1
2
Disassembly
Clutch
Nut
Clutch Weight Set
1
1
3
4
5
6
7
8
9
10
11
12
13
Drive face ass’y
Axle ring of spring
Compression spring
Secondary spring seat
Guide pin
Secondary sliding slot wheel
Oil ring
Oil seal
Needle bearing
Internal circle clip
Radial ball bearing
Secondary fix slot wheel
1
1
1
2
1
2
2
1
1
1
1
Assembly
13→1
‧Operation with sequence in reverse
of separating.
