HER CHEE ATV-90 - Carburetor Removal

5－
4
FUEL SYSTEM

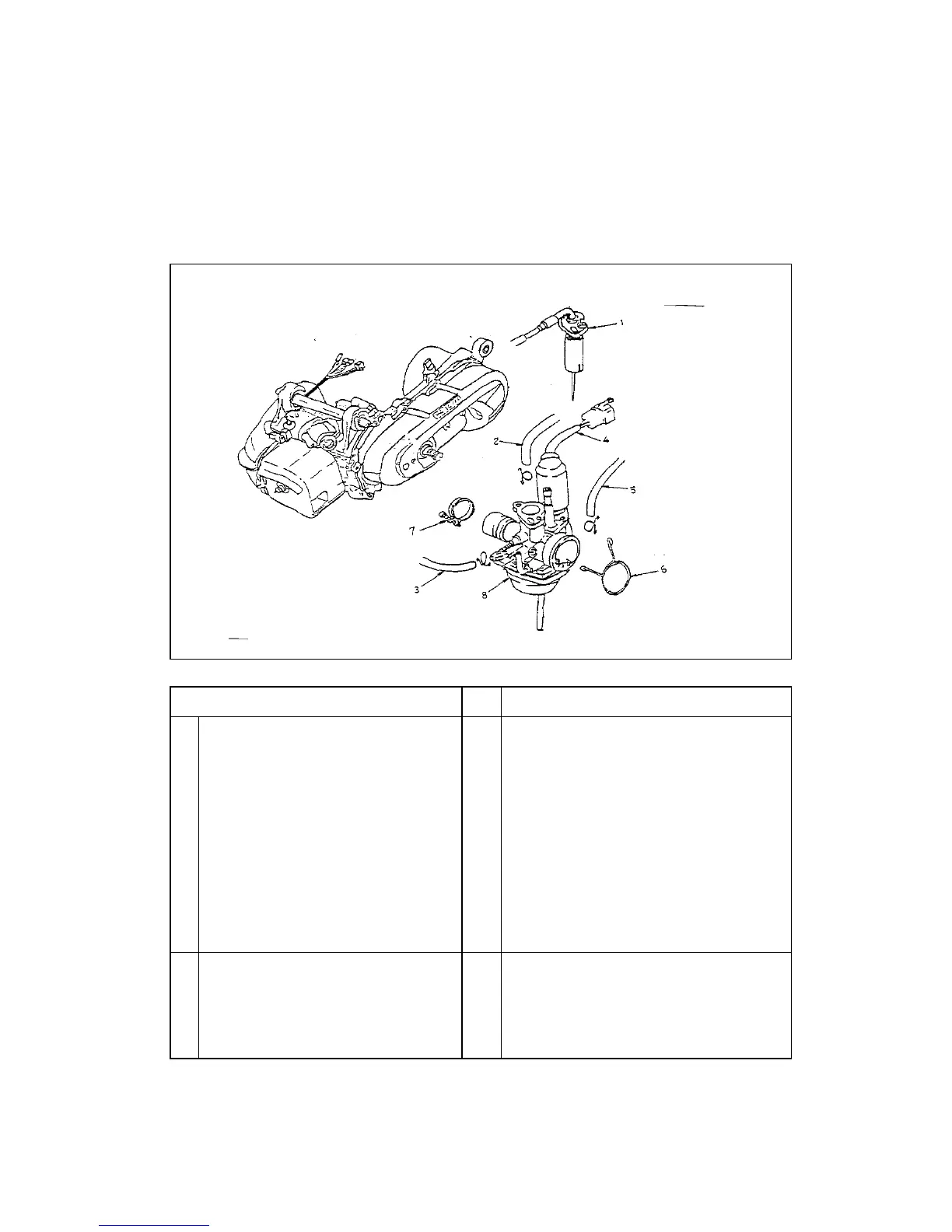

Remove Carburetor
z Turn the arrow of fuel valve pointed at “OFF”.
Operation / Parts Name Q’ty Remarks
1
2
3
4
5
6
7
8
Disassembly
Throttle valve set
Gasoline tube
Engine oil tube
Auto-side plunger wire of carburetor
Vacuum pressure tube
Clip
Intake manifold hose clamp
Carburetor
1
1
1
1
1
1
1
1
3
Assembly
8→1
Motor oil joint
＊WARNING: Don’t let dust enter
into carburetor.
＊WARNING: Release air.
