Section 4 - Mains Connection

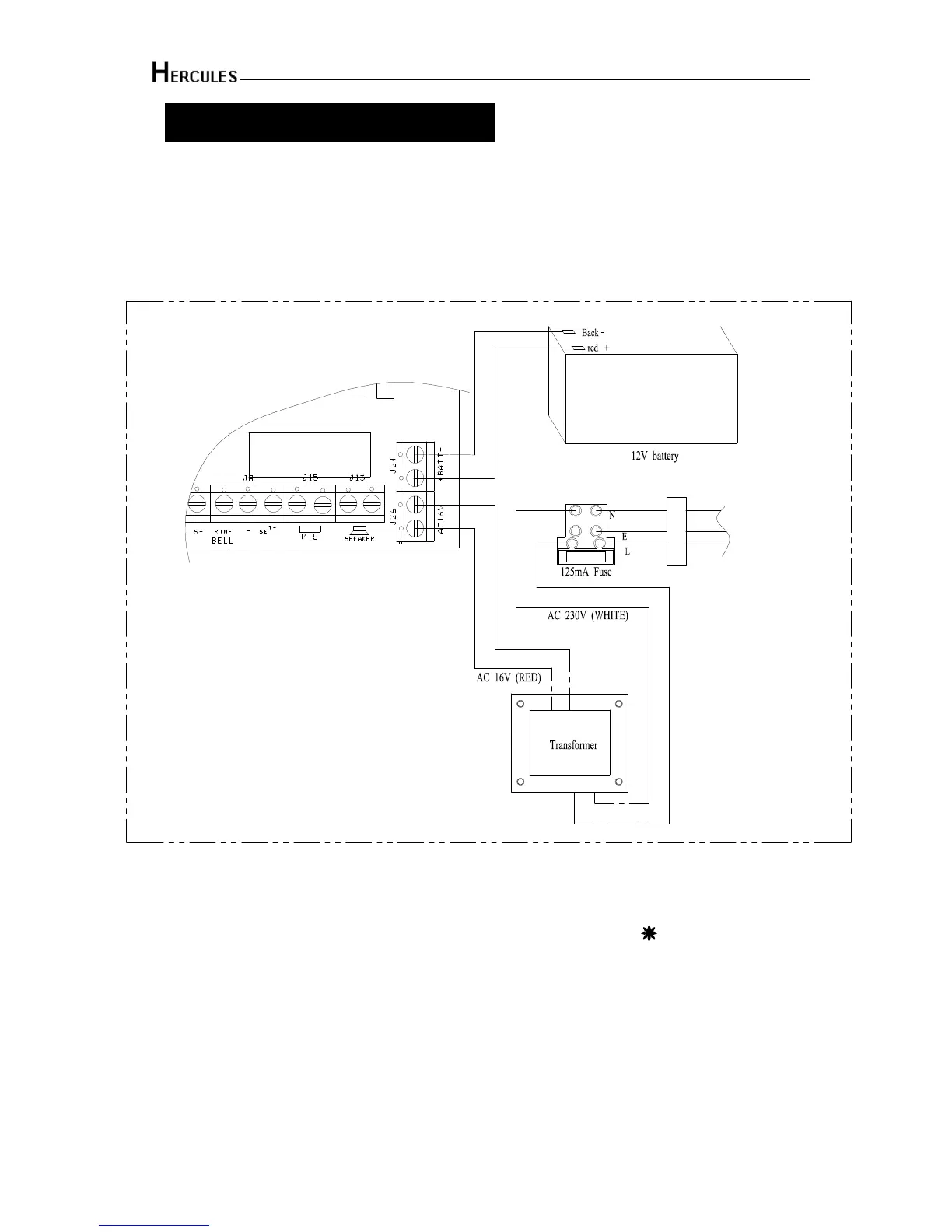

The mains power should be connected using a 3 core cable of not less than 1mm sq. from a fused
spur to the mains connector inside the control panel.
NOTE: The mains supply must be connected by a technically competent person and according
to current IEE regulations.
CAUTION: To avoid the risk of electrical shock you must always totally isolate the mains
supply before opening the control panel cover(s).
Mains input fuse rating: 125mA, 250V type.
On connecting the mains supply to the panel the power indicator is lit. Power
Testing the System
Complete the wiring of the system and then:
• Fully test the system and ensure it is fault free.
• Fully program the system.
• Fill in the installation log at the back of the manual and retain if for future reference.
• Finally explain the operation of the system to then end user.
