Section 2 – Installing your System
In choosing a suitable location you should bear in mind:
The need to reach the CU easily, within the 30 seconds, when entering and leaving the
premises, ideally passing only one detector.
The CU should not be visible from the exterior of the protected premises.

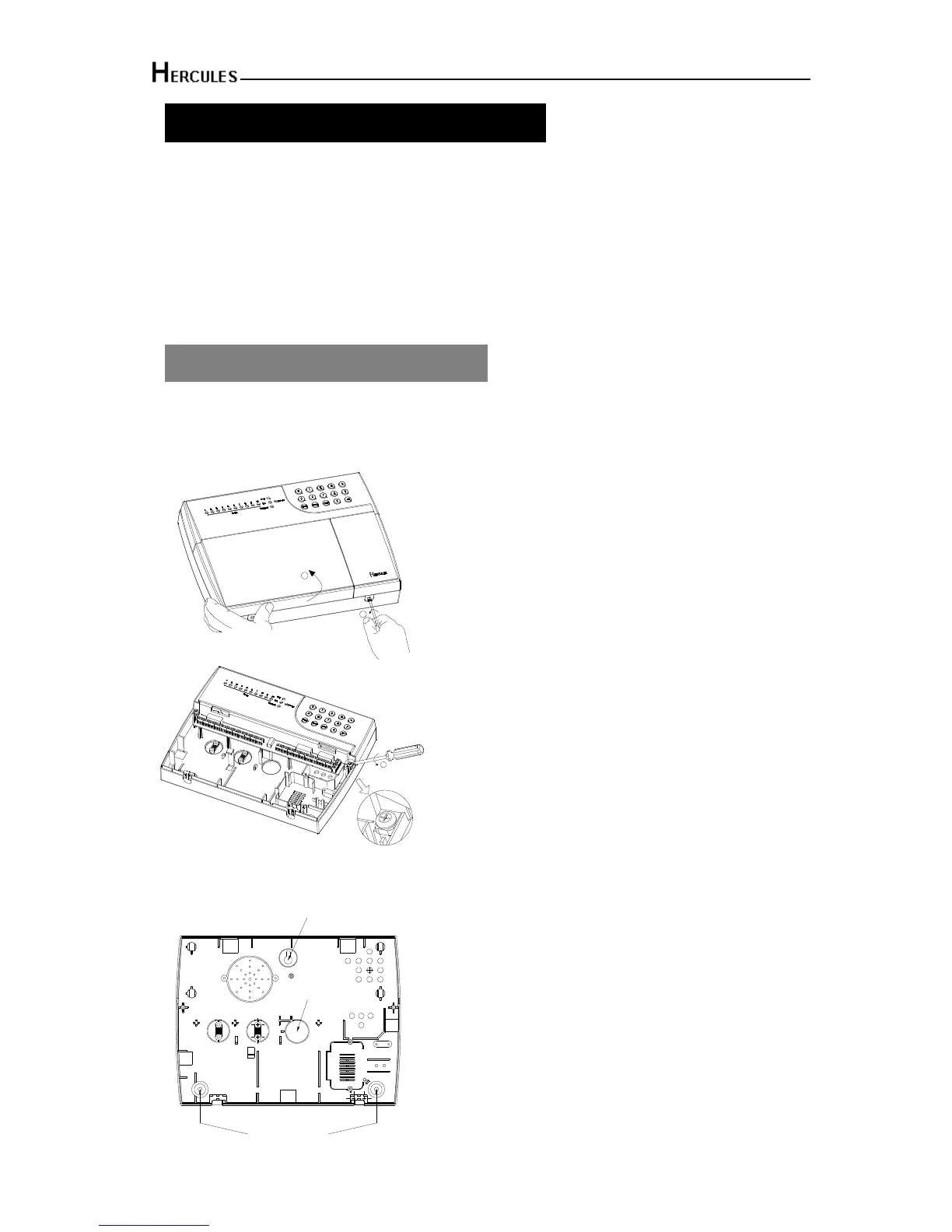

2.1 - Fixing the Control Panel
CAUTION: When positioning the control panel ensure that it is located in a dry place
away from damp areas.
Step 1. Remove the front cover(s) from the base
assembly.
Disconnect the transformer wires from the board,
these are marked AC. Carefully remove the board by
gently pushing the holding clips on the bottom edge
of the board and with draw it from the base.
Step 2. Fit the panel to wall with suitable fixings.
Ensure the wall surface is flat to prevent base
distortion. There are cable entry holes provided in
the rear of the base and around the outside edges
through the thinned out plastic sections which may
be cut away as required.
Step 3.The hole provided adjacent to the mains
transformer is a dedicated mains cable entry point.
To Next Page
