Parameter of the ethernet interface
The unit is connected to the customer network via a 10/100BaseT Ethernet interface.
The DHCP (Dynamic Host Configuration Protocol) is activated on delivery.
If there is not a DHCP server available in your network, a random IP address is set from the ZeroConf
range (169.254.0.0/16) and operations must still be performed to obtain an IP address. If an IP address
could be obtained or with a static IP address, the device can be connected via TCP / IP port 3241 in the
delivery state.

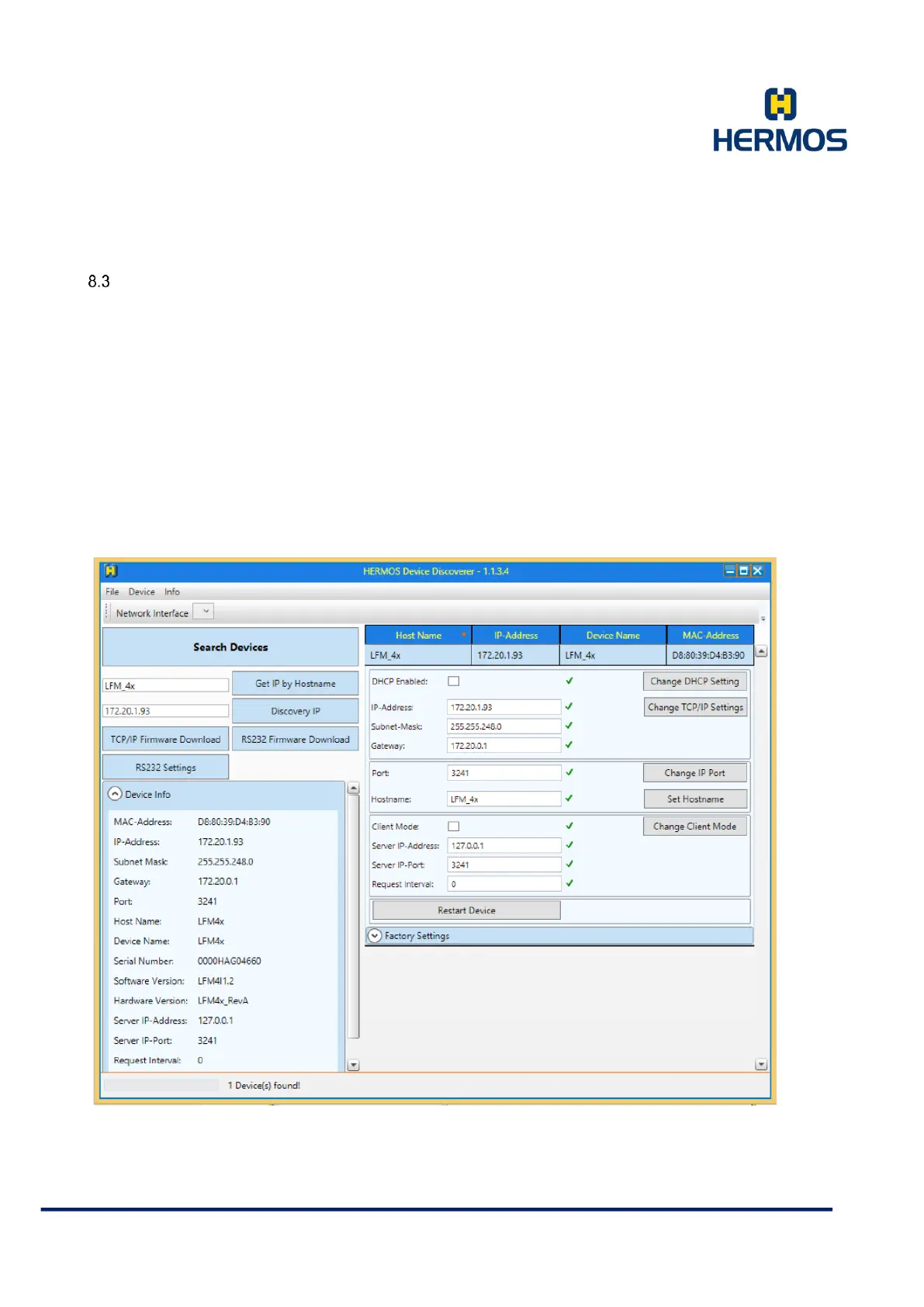

The HERMOS "Device Discoverer" is available for configuring the network setting. HERMOS components
can be found in the LAN network and settings can be easily changed using the "Device Discoverer".
