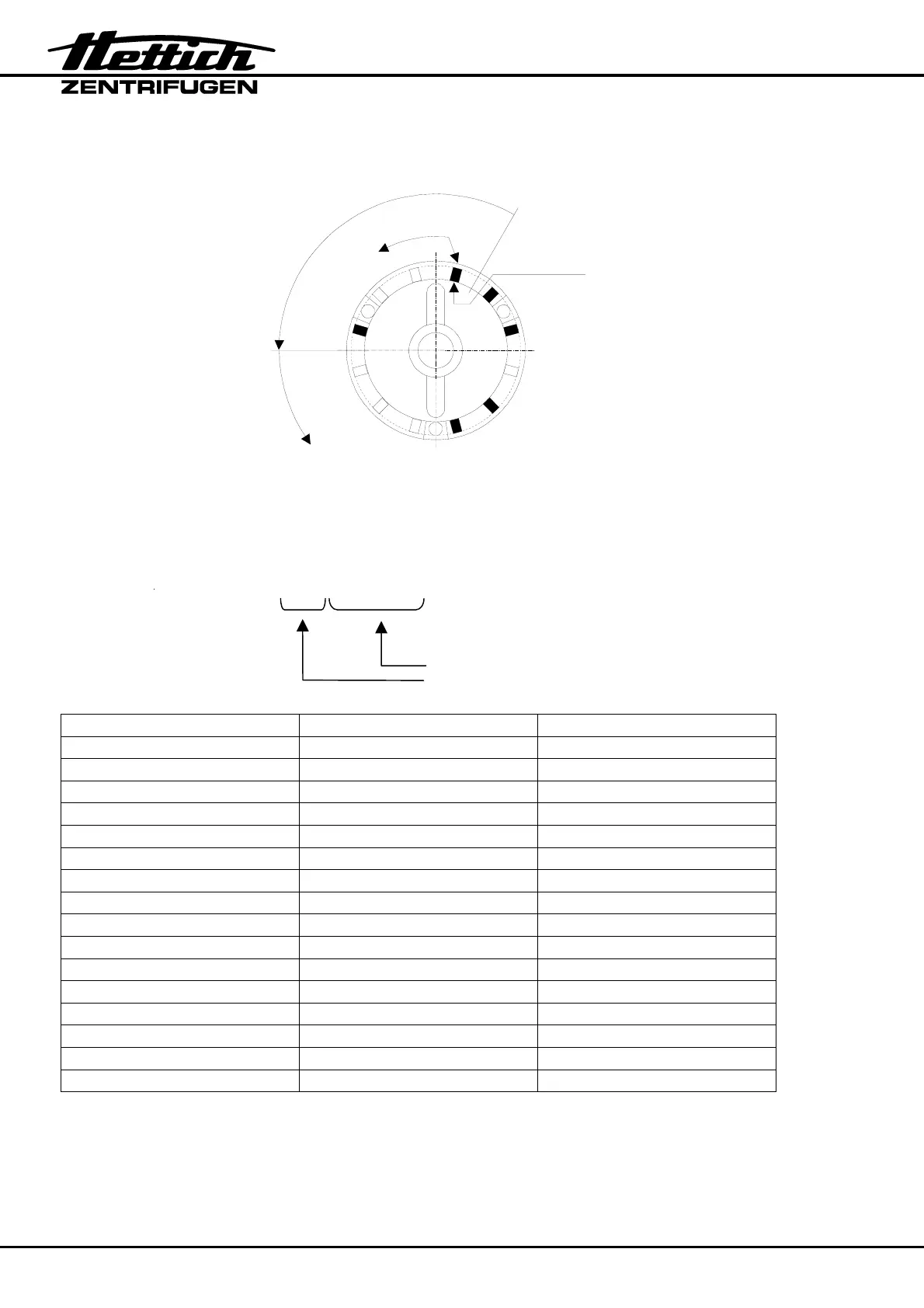

7 Speedometer-code-position of the rotor
Example: tachometer code no. 2
tachometer code determines:
1. maximum speed of rotor
2. run up and braking ramps
3. control response of electronics
START-STOP
combination
Information
START
North Pole
Rotor viewed from underneat
h
.
Rotor 1001 0001 1011
Rotor code
Start / Stop Combination
Tacho code-Nr. Position occupied Rotor
0 1001 0000 1111
1 1001 0001 0111 1624, 1626, 1619, 1611
2 1001 0001 1011 1628, 1617
3 1001 0001 1101 1613
4 1001 0001 1110 1620A
5 1001 0100 0111
6 1001 0101 0101
7 1001 0101 0110 1648
8 1001 0101 1010
9 1001 0110 0011
10 1001 0111 0001
11 1001 1000 0111
12 1001 1000 1011
13 1001 1000 1101
14 1001 1000 0011
15 1001 1100 0011
The tacho code can be measured on plug S502, see also section 9.2
