Hettich ROTOFIX 32 - 11 Skeleton Construction of ROTOFIX

32/34

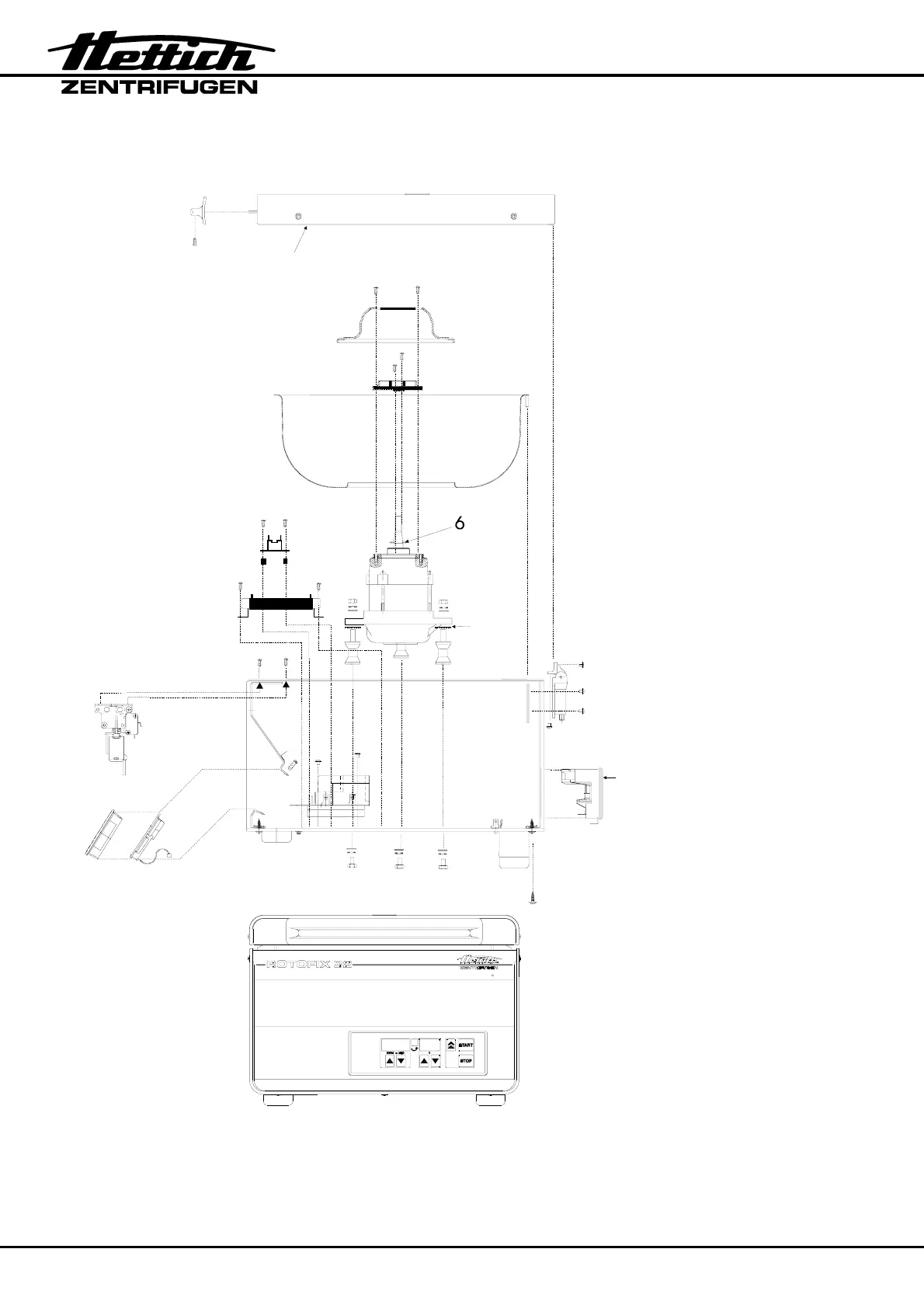

11 Skeleton construction of ROTOFIX 32
1 Viewing window
2 Lid complete
3 Motor hood
4 Speed sensor
(Tacho)
5 Chamber
6 Carrier pin
7 Motor
8 Anti-twist device
9 Rubber-metal
bearing
10 Hinge
11 Fuse insert
12 Appliance plug
13 Rubber foot
14 Power board
15 Electronic control
panel
16 Control panel
complete
17 Housing
18 lid lock with magnet
19 Brake resistor
20 Overtemperature
fuse
21 Lid insert
19
20
3x
2x
1
2
3
4
5
7
8
9
1
0
13
15
16
17
18
21
22
14
22 Handle for lid lock
