V30 GNSS RTK System Manual
9
Control Panel

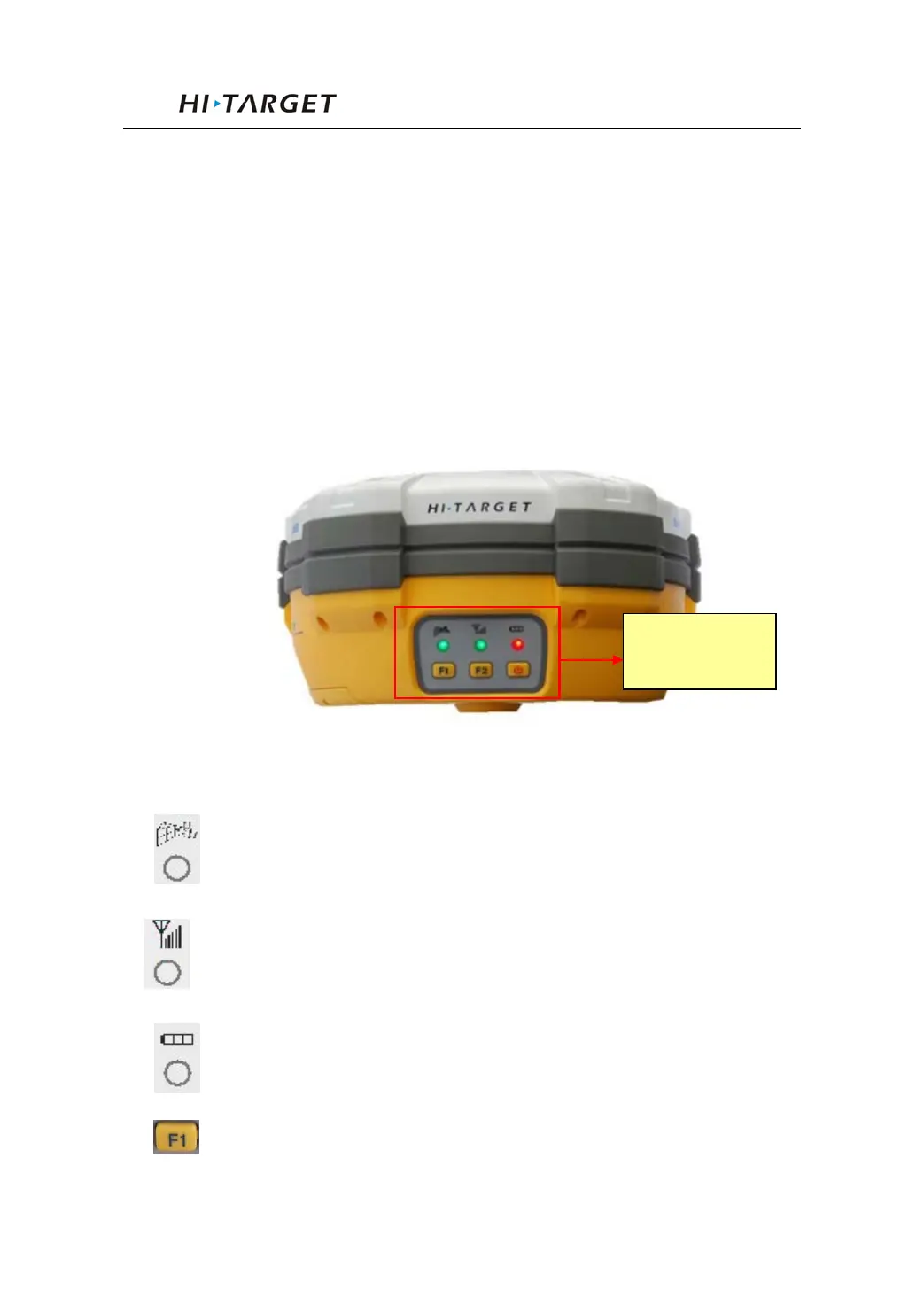

Figure 3-2, in the middle of red frame of V30 receiver is
control panel. And the control panel contains the F1 key
(function key 1), F2 key (function key 2) and the power button,
3 indicator leds which are respectively satellite led, the status
led (dual-color led ), the power led (dual-color led). The
simple three buttons include all the features setting of the v30
receiver.
Figure 3-2 Control Panel
Satellite led（green led）
Status led（red-green dual-color led）
Power led(red-green dual-color led)
Function Key: settings of working mode, UHF radio
Control Panel
