Lower Cover
As figure 3-4, lower cover of V30 includes communication
module slot, battery groove, five-pin port, eight-pin port,
loudspeaker and so on.

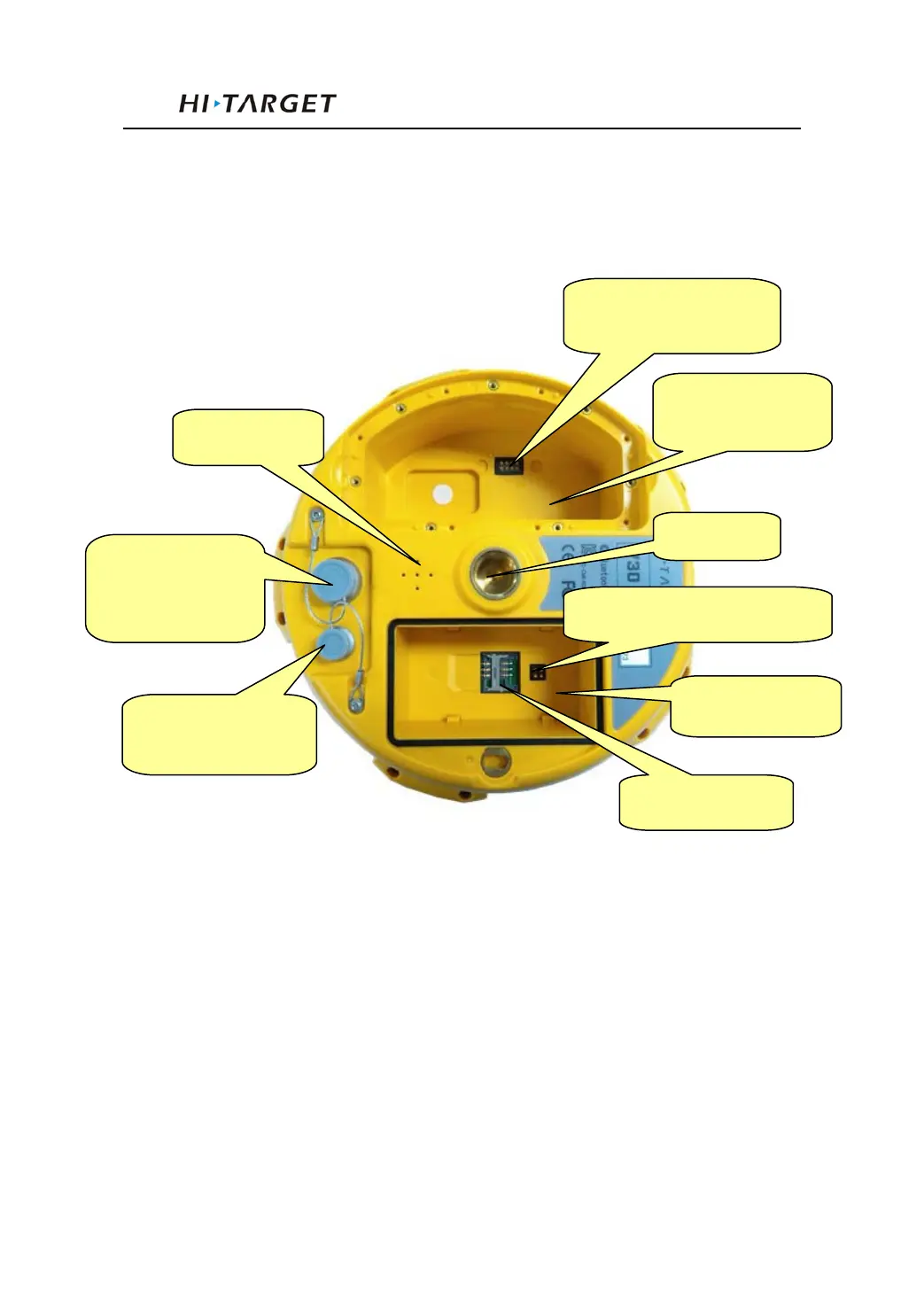

Figure 3-4 Lower Cover
 Communication Module: according to different
requirements, traditional UHF radio, GPRS and 3G
communication module can be chosen
 Communication module connector: connect
communication module and mainframe
 Battery Groove: install 4400mAh lithium battery
 Five-pin port: connect mainframe with external data link or
Five-pin Port and
Protection Plug
Eight-pin Port
and Protection
Plug
Loudspeaker
Communication
Module position
Battery Groove
SIM Card Slot
Communication
Module Connector
SLC Power Supply Block
Joint Nut
