V30 GNSS RTK System Manual
47

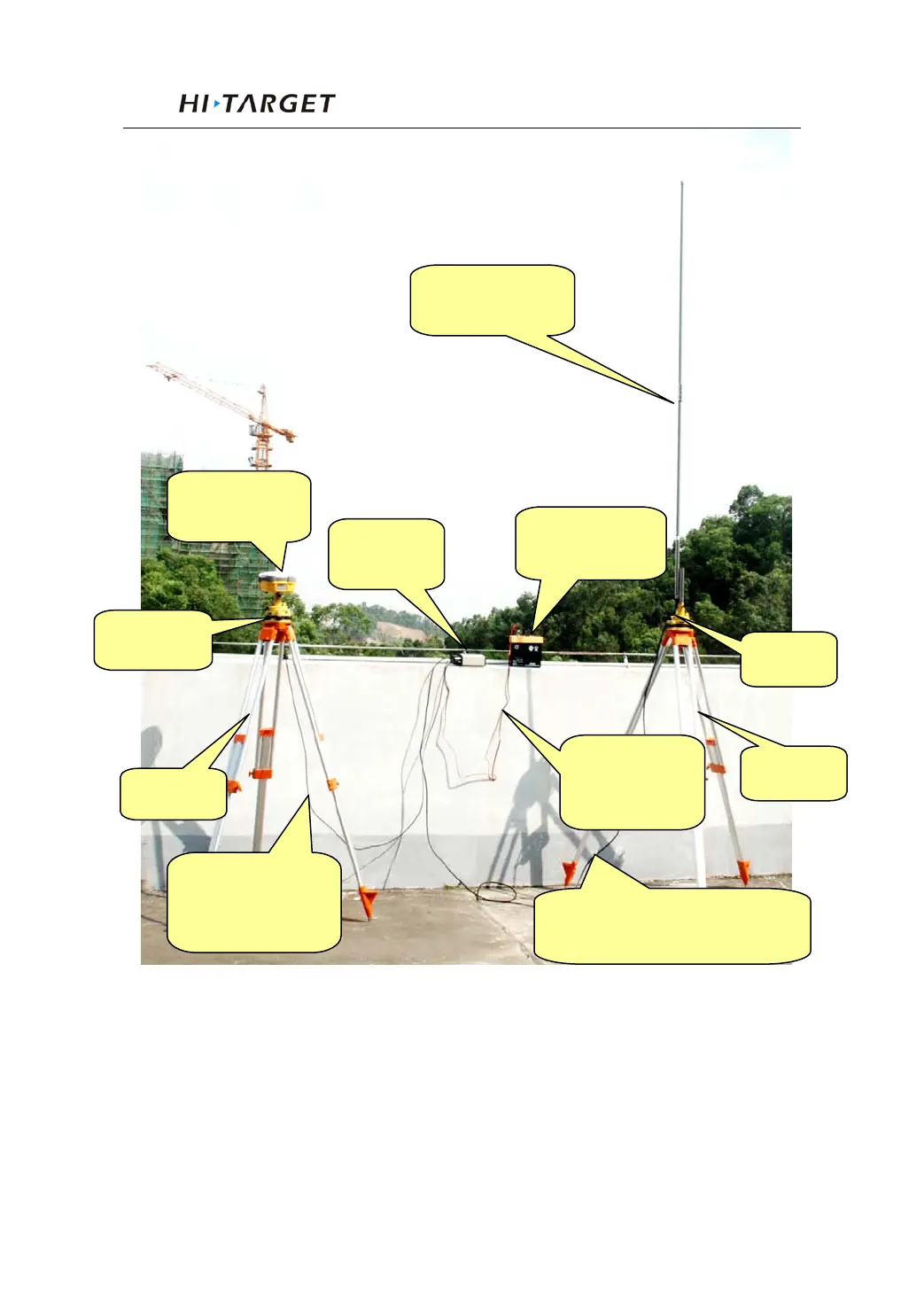

Figure 5-3 working mode for base with external radio
Base receiver
mainframe
External radio
connecting cable
with receiver
Tribrach
Tripod
Tripod
Tribach
External
radio
External power
supply
Power supply
connecting
cable
Transmitting
antenna
Radio antenna connecting
cable
