HiDew DCS 040 - Functional Diagram

rev00 – Installation, use and maintenance manual
DDS-DCS – Dehumidifier for small swimming pools
26 - 48

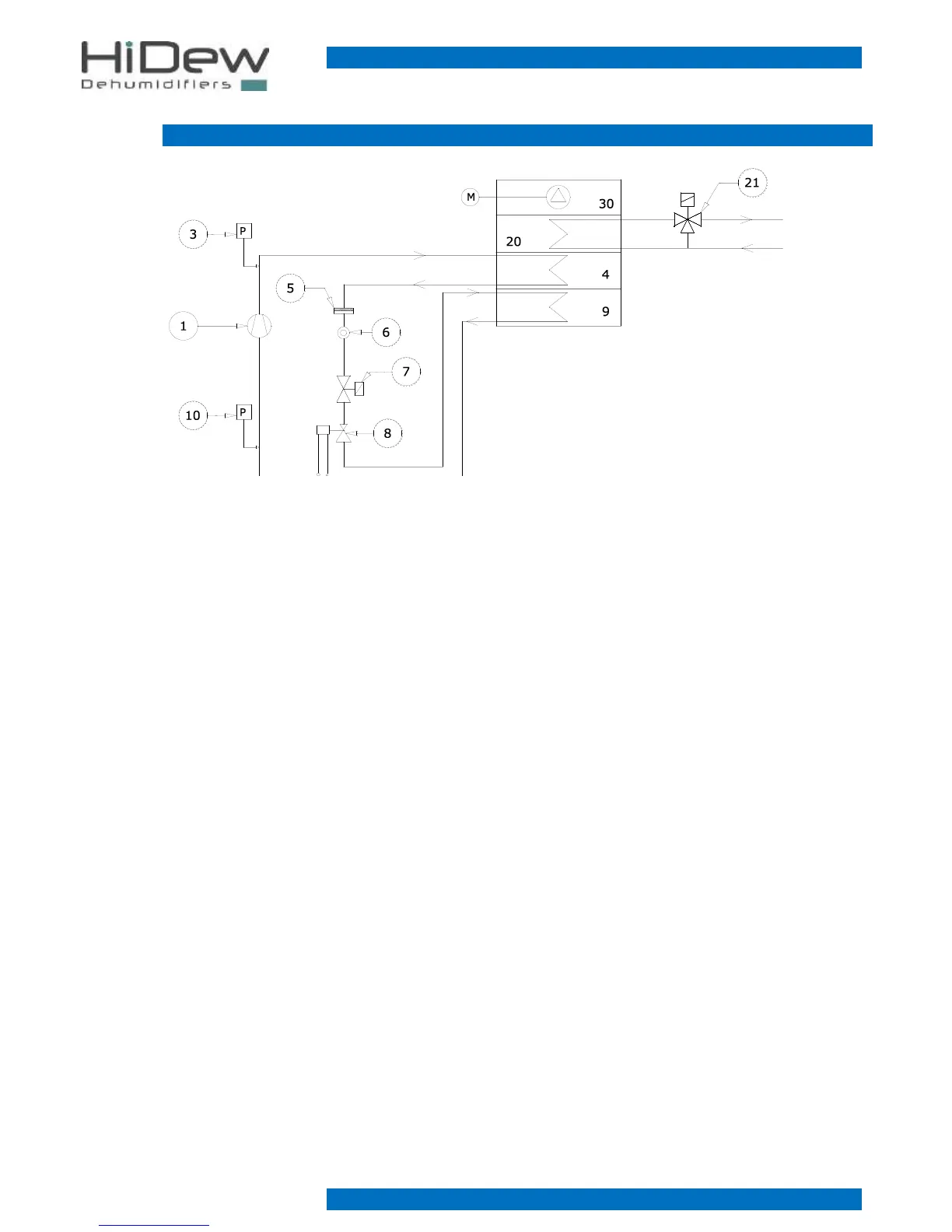

4.2 FUNCTIONAL DIAGRAM
1 compressor
3 high pressure manostat
4 condensing coil
5 fde-hydrator filter
6 flux light
7 electro-valve
8 thermal expansion valve (or similar)
9 evaporative coil
10 low pressure probe
20 post-heating water coil [optional]
21 3-ways water valve [optional]
30 fan
