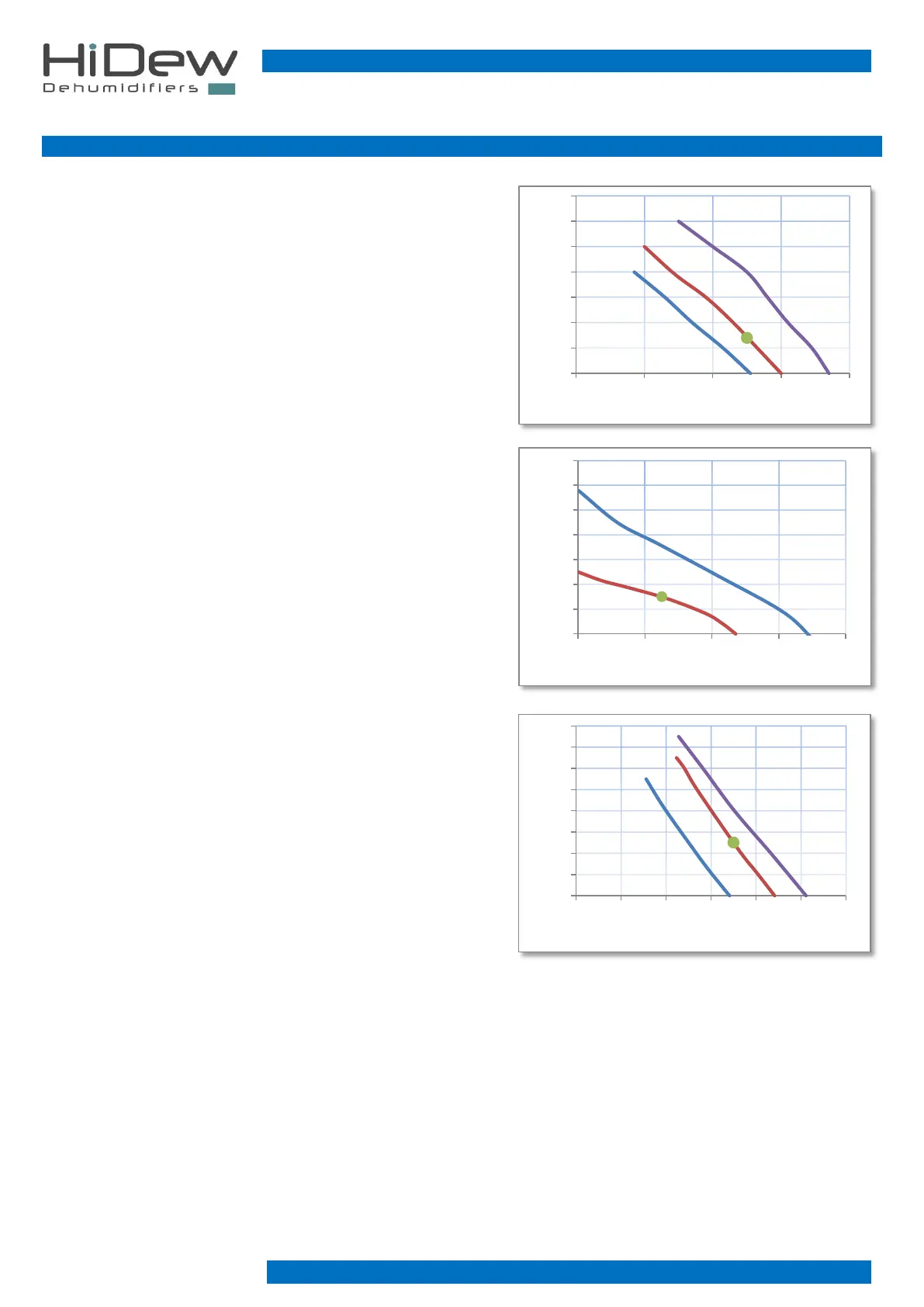

6.1 AIRFLOW AND STATIC PRESSURE
6.1.1 RSO e RSV 020 – 3 velocities
Units install a three velocities fan; medium velocity is set as default.
Refers to “Installation” paragraph for velocity change.
CURVE A = high velocity
CURVE B = medium velocity
CURVE C = low velocity
6.1.2 RSE e RSVE 020 – potentiometer
Units install an electronic fan with inverter and brushless motor
controlled by a potentiometer. A default velocity is set in factory.
Refers to “Installation” paragraph for velocity change.
CURVE A = maximum limit
CURVE B = suggested curve
6.1.3 RSO e RSV 035 – 3 velocities
Units install a three velocities fan; medium velocity is set as default.
Refers to “Installation” paragraph for velocity change.
CURVE A = high velocity
CURVE B = medium velocity
CURVE C = low velocity
