HiDew RSO - 10.2 RSV - RSVE 020

rev 10 – USER MANUAL
RS Dehumidifiers for radiant systems
38 - 52
10.2 RSV – RSVE 020

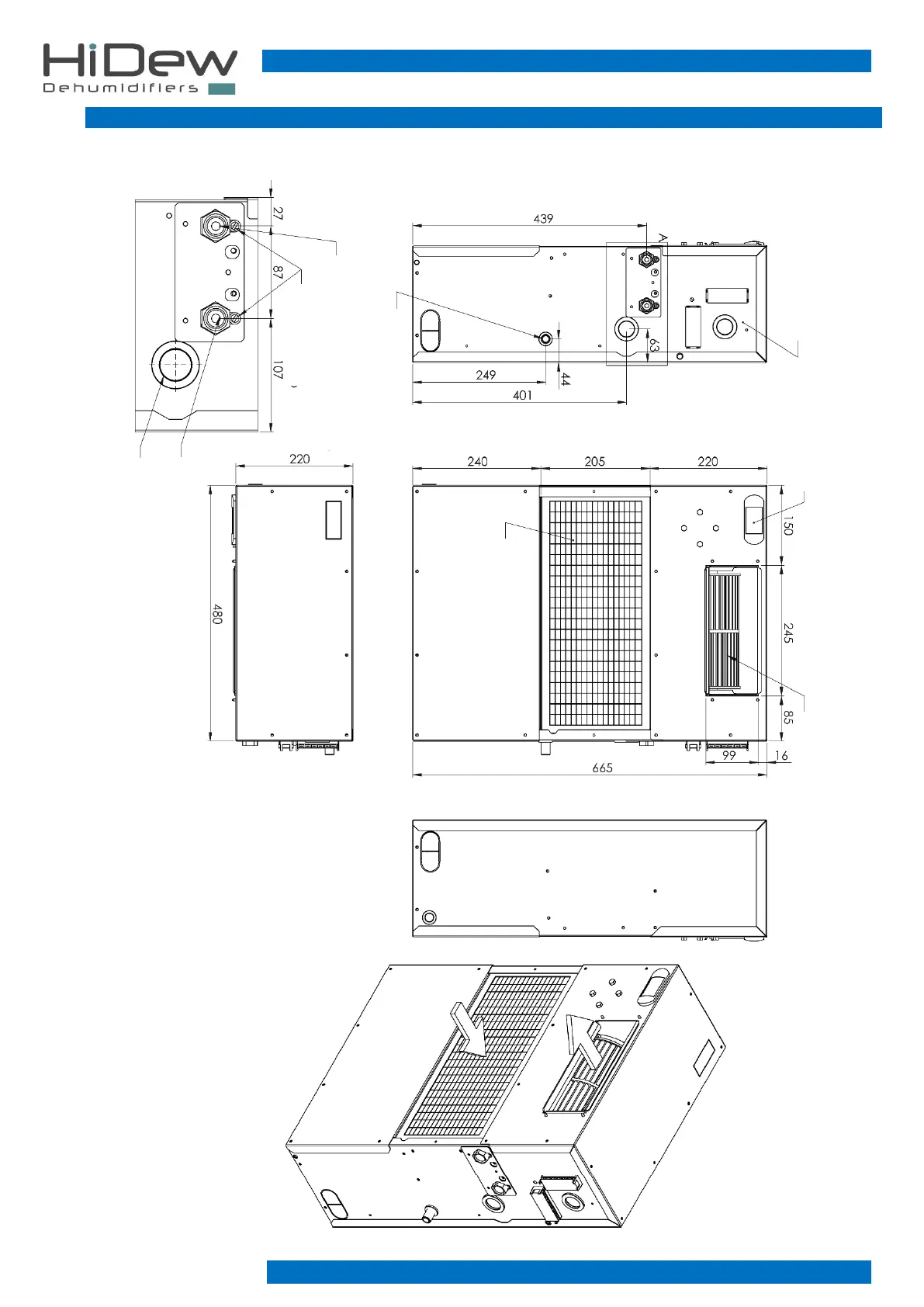

10.2.1 RSV 020 in line supply (all versions)
Condensate drain
Control
Electrical Supply
Air supply
Air return filter
Water inlet from radiant system 1/2"
Gas female (A-I)
Hydraulic circuit air
vent valve
Water outlet to radiant system 1/2" Gas female
(isothermal version A)
Water outlet to radiant system 1/2" Gas female
(hybrid version I)
DETAIL A
Optional configuration
with in line supply
