HiDew RSO - Page 37

USER MANUAL - rev 10
RS Dehumidifiers for radiant systems
37 - 52

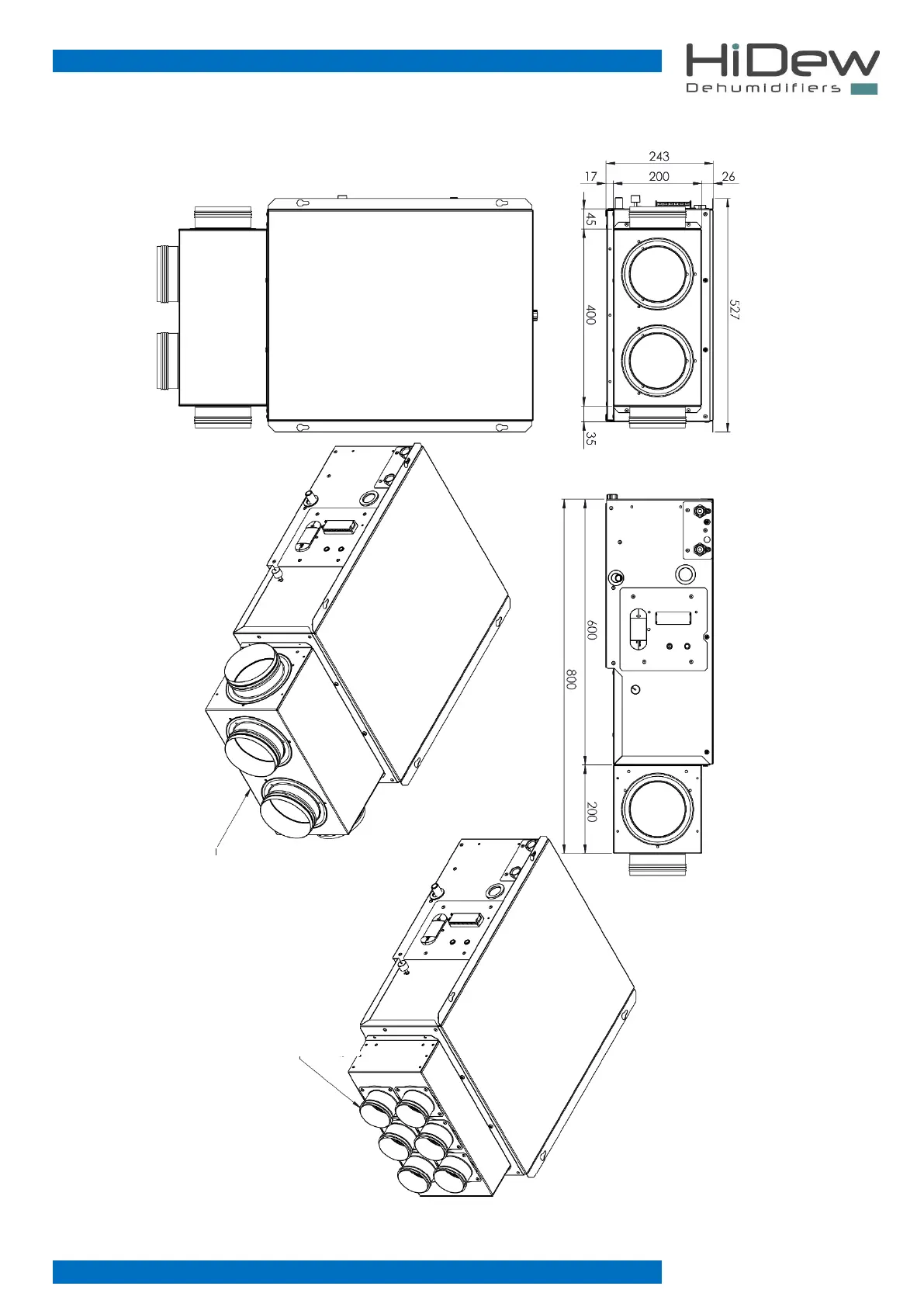

10.1.3 Supply plenum RSO – RSE 020
Optional configuration with supply plenum
Supply plenum Nozzle diameter available in the
version with 6 nozzles - ø63 (pipe ø75) - ø75 (pipe ø90)
Supply plenum Nozzle diameter available in the versions from 2 to 4 nozzles
- Ø125 - Ø150
- Ø160 -
