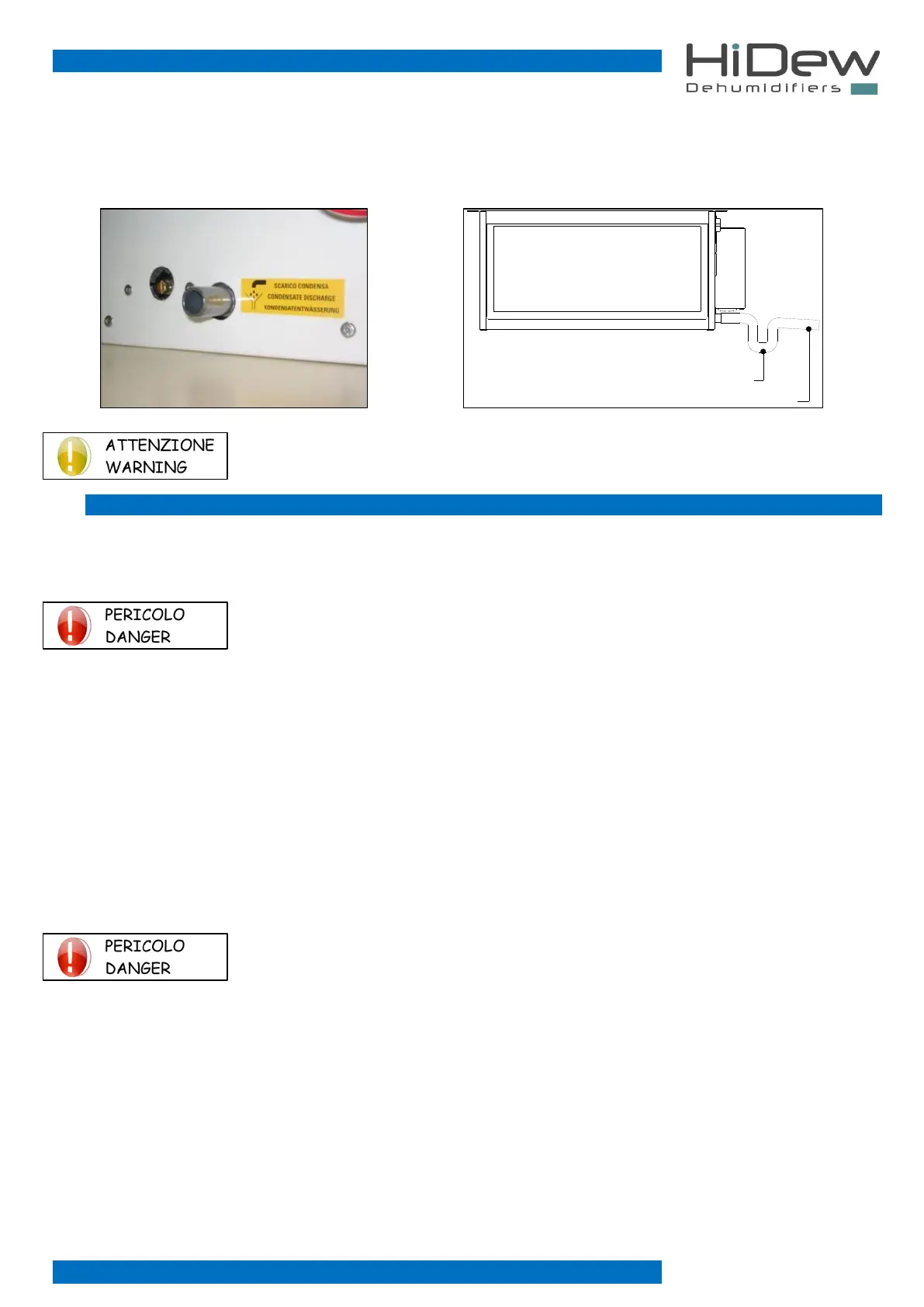

9.4.2 CONDENSE DISCHARGE CONNECTION
Realize the connection with a flexible rubber pipe, internal diameter 16 mm. On the discharge pipe a siphon has to be done, with a
shutter of a diameter, at least, equal to the prevalence of the inlet fan, as indicated in the pictures below.
The inclination of the discharge pipe should ensure, in every case, the pouring out of water
towards the external. If this is not granted, condense can overflow from the unit.
9.5 ELECTRICAL CONNECTIONS
Open the electrical panel, introduce the supply cable and the other necessary cables on the dedicated holes, realize the connections
on the clamps and close the panel.
The ground lead is compulsory. The installer should provide the grounding wire with the dedicated
clamp located within the electrical panel, labelled with the indication.
Electric connection, supply cables and protections have to be realized according to the wiring diagram attached and by following the
current local and international dispositions.
Suggested protection to be inserted: models 020 = switch MGT – C6
models 035 = switch MGT – C10
models 050 = switch MGT – C16
models 100 = switch MGT – C20
Suggested supply line: models 020 = cable FROR - 3G1,5
models 035 = cable FROR - 3G1,5
models 050 = cable FROR - 3G2,5
models 100 = cable FROR - 3G2,5
The wiring and the modification of the fan speed have to be done when there is no tension.
DEATH DANGER
Sifone
Tubo scarico condensa
Siphon
Condensate discharge pipe
