HiDew RSO - 10.3 RSO - RSE 035

rev 10 – USER MANUAL
RS Dehumidifiers for radiant systems
40 - 52
10.3 RSO – RSE 035
10.3.1 RSO – RSE 035 (all versions)
RSE Air supply
RSO Air supply

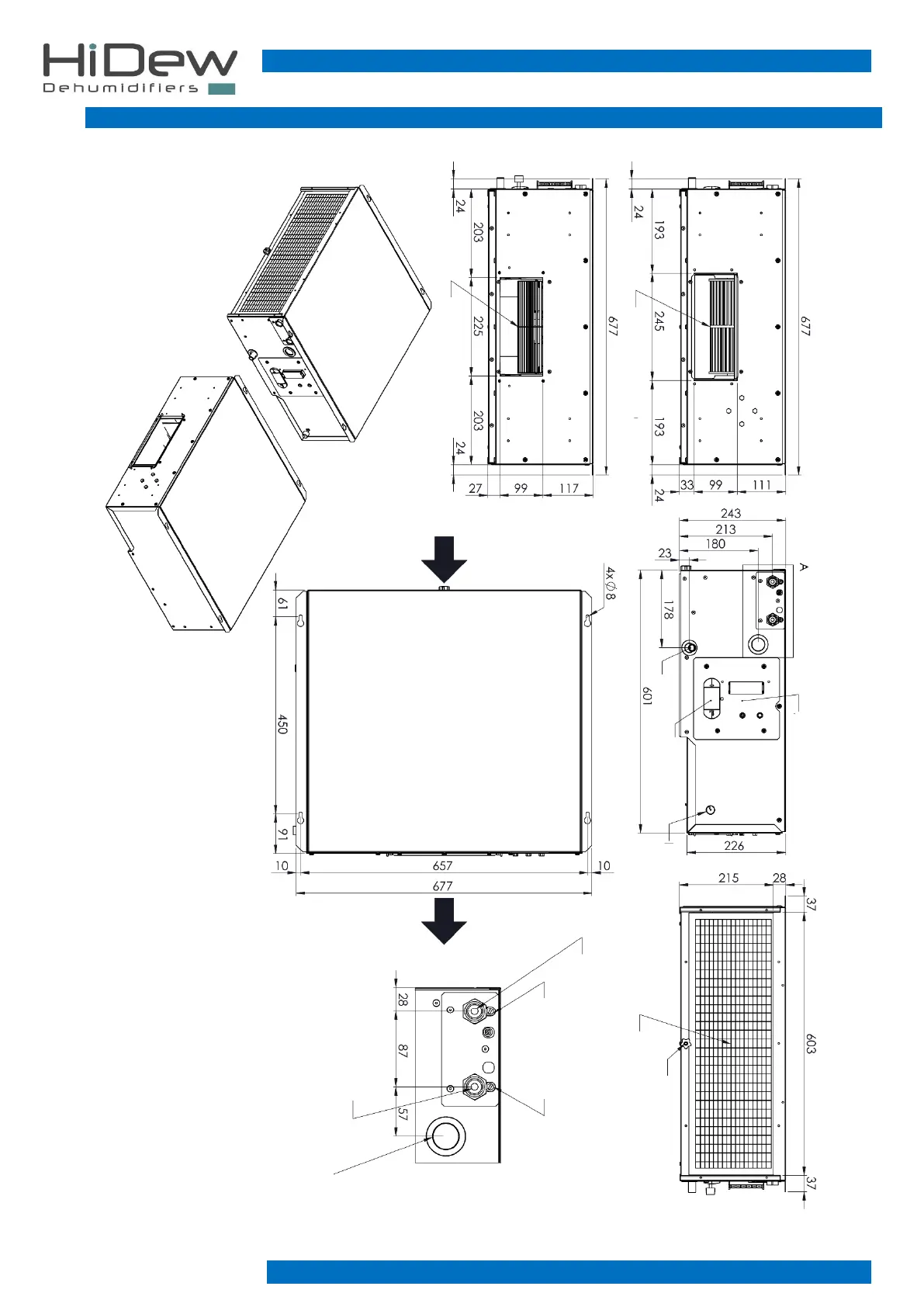

TOP VIEW
Control
Condensate drain
Power supply
Potentiometer (only on RSE)
Handwheel for filter removal
Air return filter
Water inlet from radiant system 1/2" Gas female (A-I)
Hydraulic circuit air vent valve
DETAIL A SCALE 1:3
Water outlet to radiant
system 1/2" Gas female
(isothermal version A)
Water outlet to radiant system
1/2" Gas female (hybrid version I)
