HiDew RSO - 10.9 Carter RSV - RSVE 020; 10.10 Carter RSV - RSVE 035

rev 10 – USER MANUAL
RS Dehumidifiers for radiant systems
50 - 52

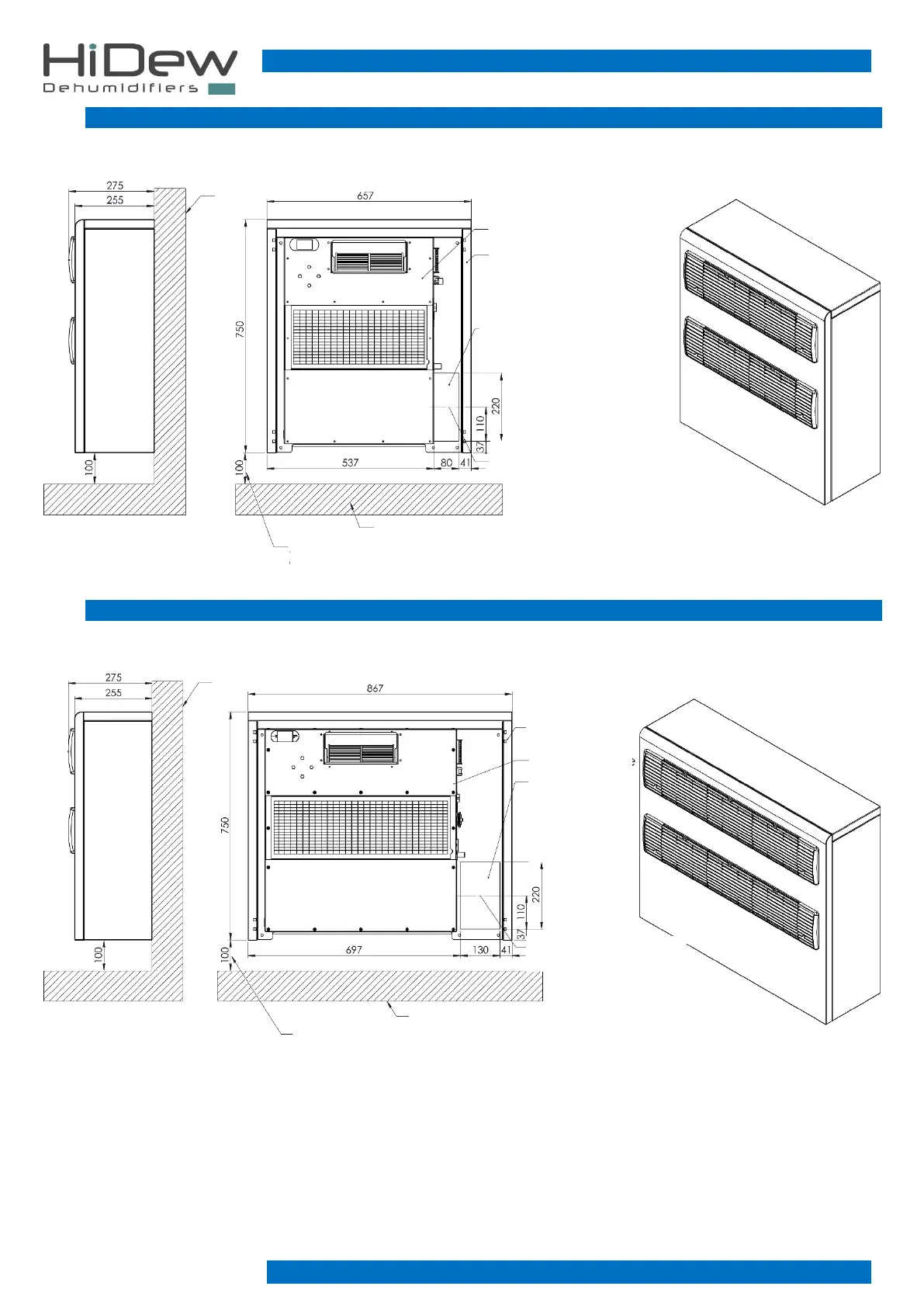

10.9 CARTER RSV – RSVE 020
10.9.1 Carter and painted steel panel RSV – RSVE 020
10.10 CARTER RSV – RSVE 035
10.10.1 Carter and painted steel panel RSV – RSVE 035
Wall
Containment carter
Inlet area for hydraulic and
electrical connections and for
condensate drain
Maximum height for condensate
drain pipe
Floor
Minimum height recommended
from the floor
Dehumidifier
Dehumidifier
Wall
Inlet area for
hydraulic and
electrical
connections and for
condensate drain
pipe
Containment
carter
Floor
Minimum height recommended
from the floor
Maximum height for
condensate drain pipe
