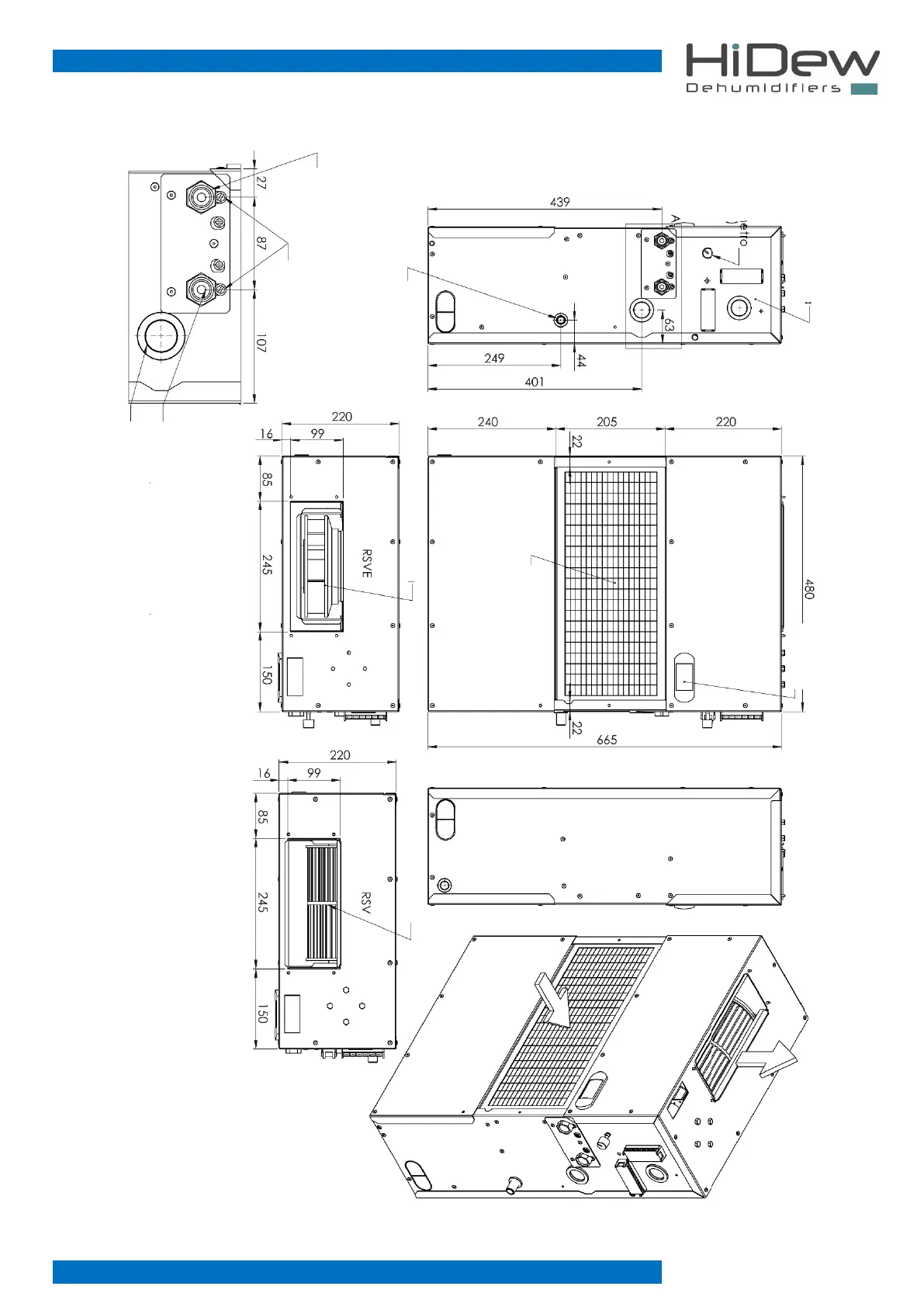

10.2.2 RSV – RSVE 020 top supply (all versions)
Potentiometer
(only RSE)
Condensate drain
Control
Air supply
Air return filter
Water inlet from radiant system 1/2"
Gas female (A-I)
Hydraulic circuit air
vent valve
Water outlet to radiant system 1/2" Gas female
(isothermal version A)
Water outlet to radiant system 1/2" Gas female
(hybrid version I)
DETAIL A
Air supply
Electrical Supply
Optional configuration
with top supply
