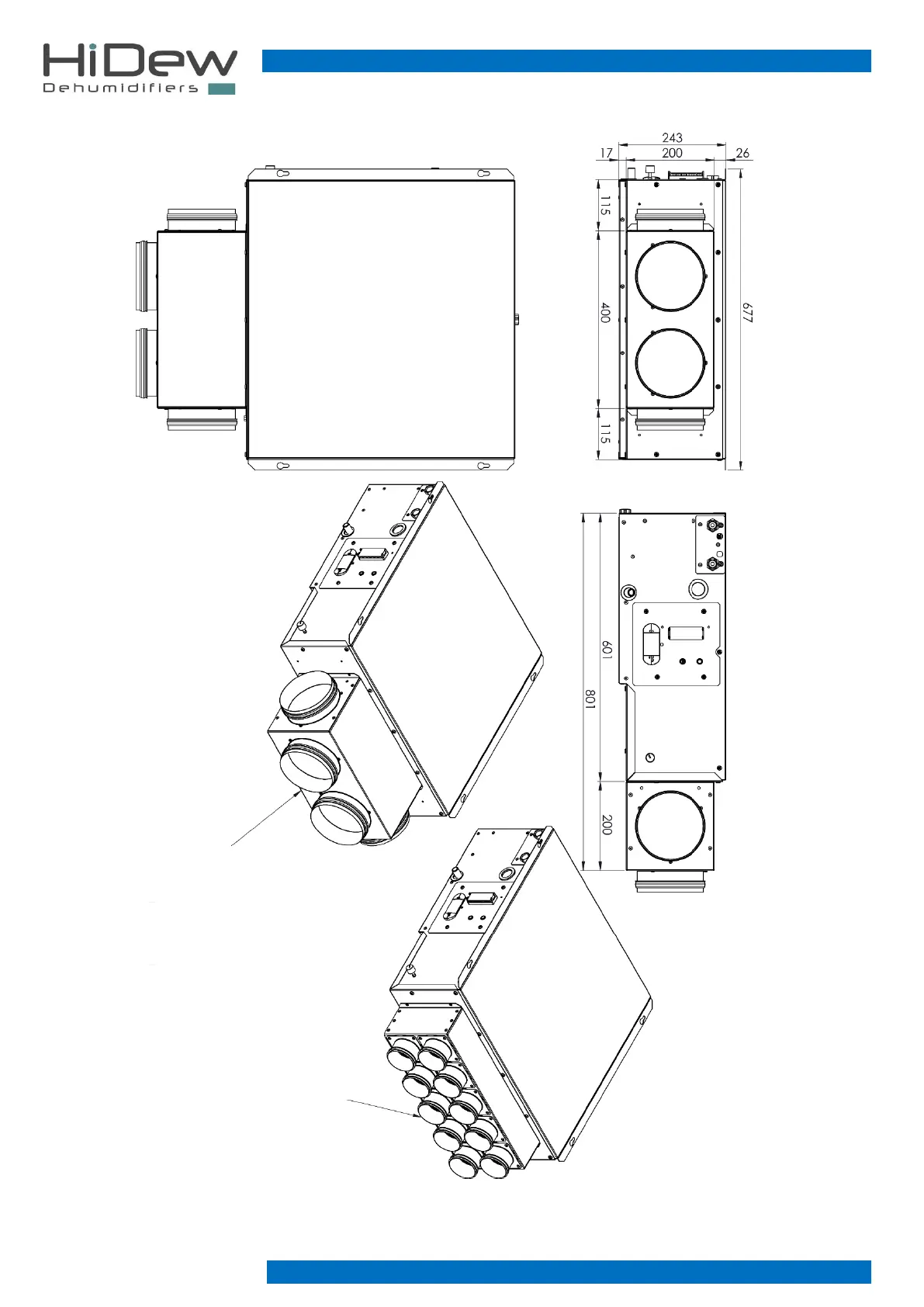

10.3.3 Supply plenum RSO – RSE 035
Optional configuration with supply plenum
Supply plenum Nozzle diameter available in the
version with 10 nozzles - ø63 (pipe ø75) - ø75 (pipe ø90)
Supply plenum Nozzle diameter available in the versions from 2 to 4 nozzles
- Ø
125 (minimum 3 nozzles
for this measure)
- Ø150
- Ø160
