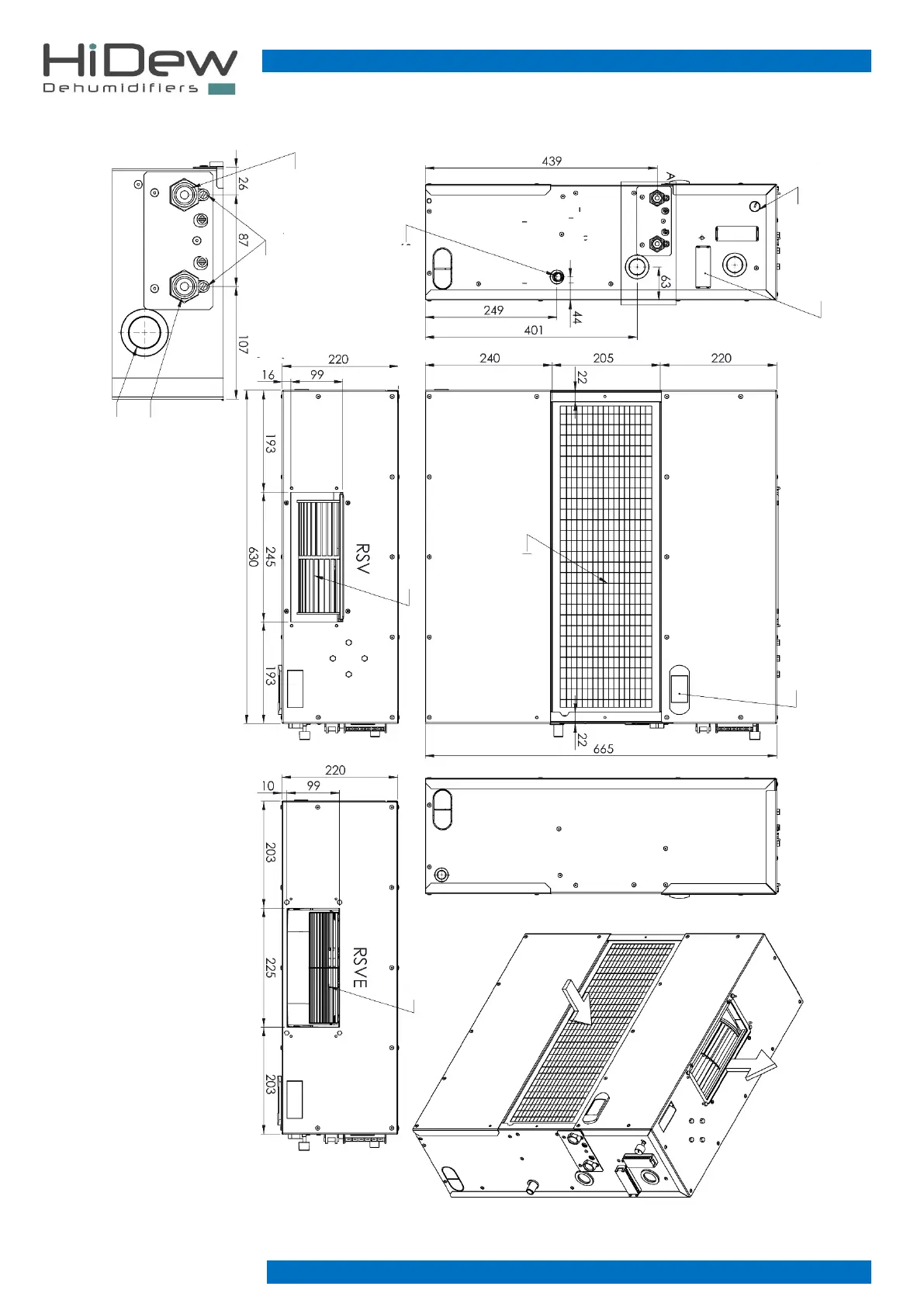

10.4.2 RSV – RSVE 035 top supply (all versions)
Water inlet from radiant system 1/2" Gas female (A-I)
Hydraulic circuit air vent valve
Water outlet to radiant system 1/2" Gas female (isothermal version A)
Water outlet to radiant system 1/2" Gas female (hybrid version I)
DETAIL A
Optional configuration
with top supply
Electrical Supply
Potentiometer (only RSVE)
Control
Condensate drain
Air supply
Air return filter
Air supply
