ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 33

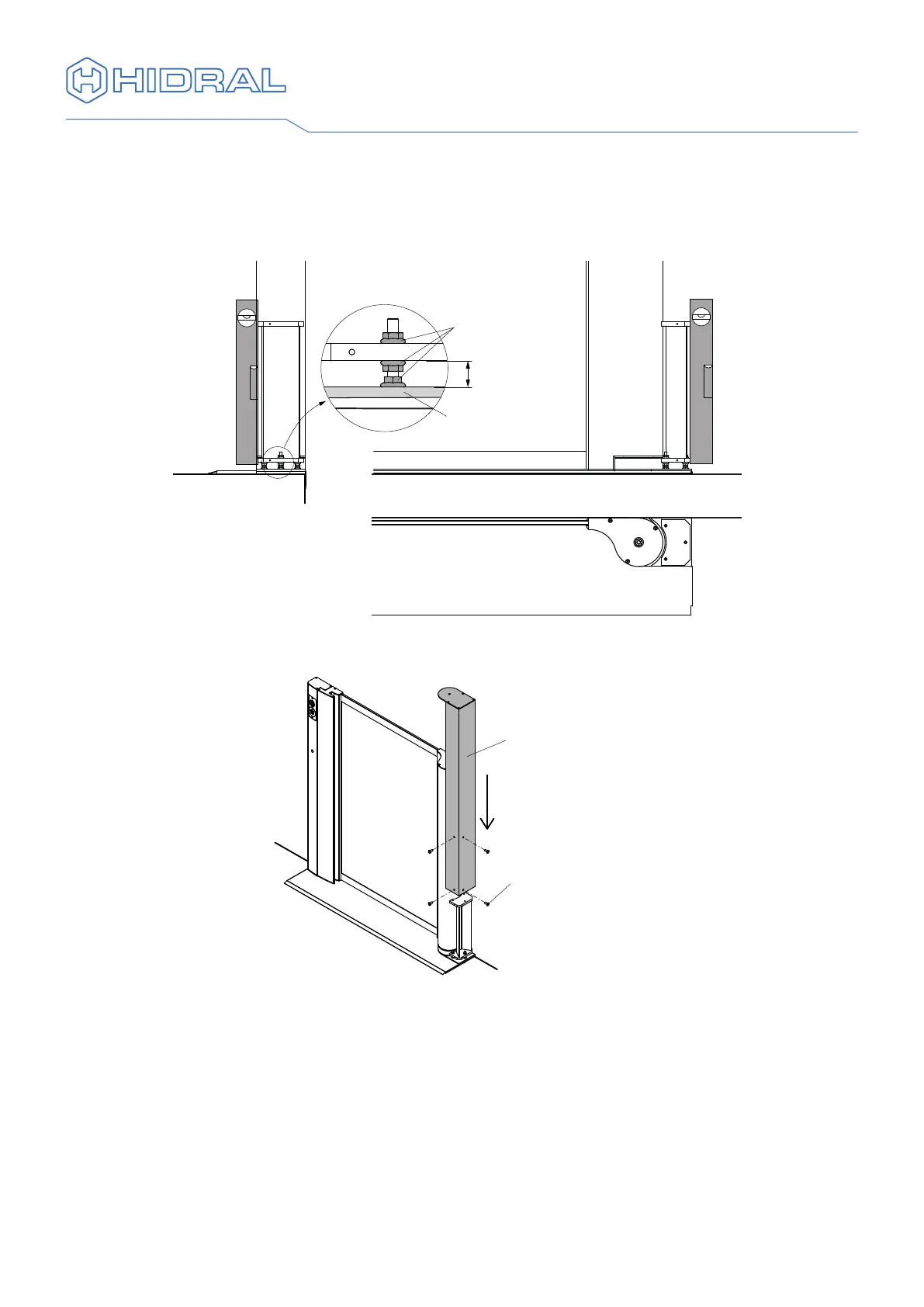

14 Attach the reinforcement post base to its xing plate using the three M6 studs, nut
and lock nut, leaving it as vertical as possible. To do this, screw one nut on each
stud with the bevelled collar facing upwards, place the base of the locking post and
check its verticality. Adjust, if necessary, and secure using another three bevelled-
collar nuts.
IM5600_0919
1:10
Bevelled
collar nut
Reinforcement
post fixing plate
15
15 Place the reinforcement post on the base and secure it using six M4 countersunk
screws.
Reinforcement post
M4x10
countersunk screw
IM560_0920
1:5
