IM-560en
Vers. 05
Page 4
ASSEMBLY INSTRUCTIONS
VERTICAL LIFTING PLATFORM PH-300

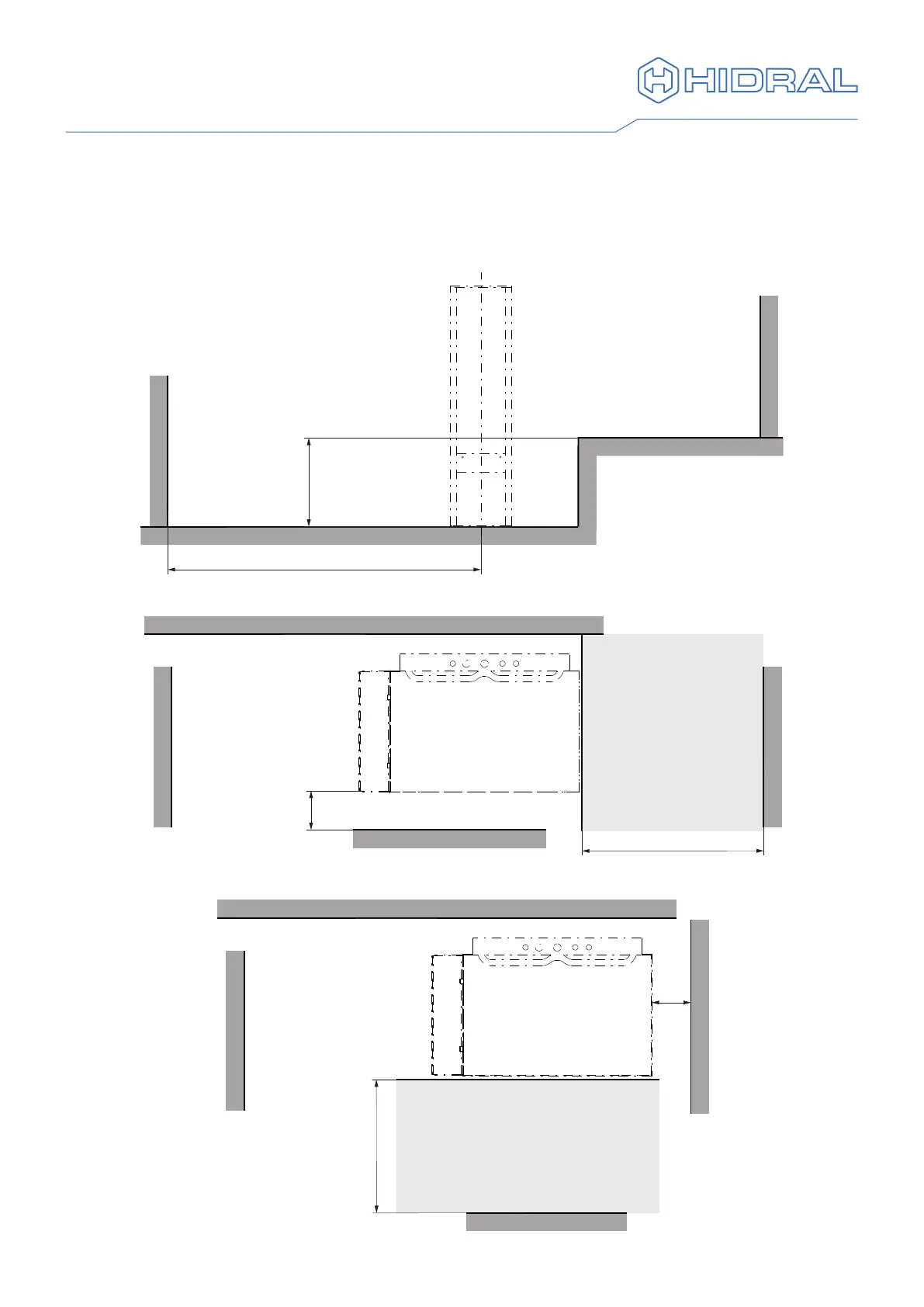

4 Check that the following dimensions are within the specied limits. Should this not
be case, get in touch with our aftersales department.
- R Platform travel. Permissible deviation of ± 50 mm
- E0 Minimum space for access on lower level: ≥2040
Upper
level
Lower
level
R
E0
- E1 Minimum space on upper level with 180º access: ≥1200
Upper levelLower level
E1
d
- E1 Minimum space on upper level with 90º access: ≥1200
Upper level
Lower level
E1
d
