ASSEMBLY INSTRUCTIONS
PH-300 VERTICAL LIFTING PLATFORM
IM-560en
Vers. 05
Page 5

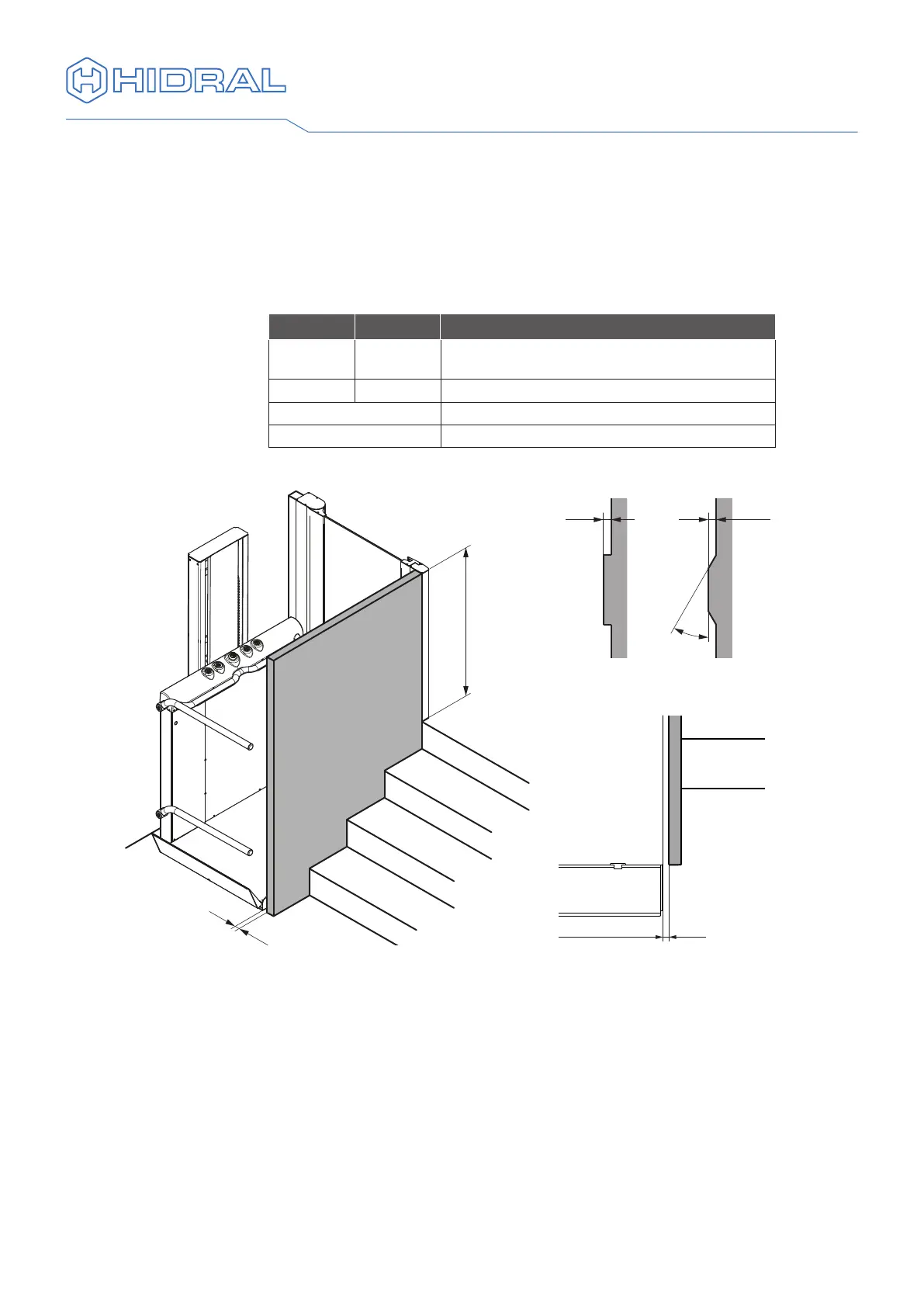

5 Check adjacent surface requirements:
- Upper access side. Vertical, continuous, solid and without projections; throughout
the dimension of the platform
- Guide side. Vertical, continuous, solid and without projections
- Side without access. According to the value of the travel (R) and the distance to the
platform (d):
R≤500 R>500 Surface
- d=20
Vertical, continuous, solid and without projections;
throughout the dimension of the platform
20≤d<120 80≤d<120 Vertical, continuous, solid and without projections
120≤d<400 Vertical, continuous and solid
d≥400 No specic requirements
Vertical, continuous and solid, throughout the dimension of the platform, for R>500 (d=20)
Permitted projection dimensions for
wall without projections
d=20A
1100
d=20
1.5÷5≤1.5
≤15º
