Hidrostal A2Q - Design and Functions; Overview

4 | Design and functions
18 / 49 Hidrostal AG
4 Design and functions
4.1 Overview
1
2
3
4
5
6

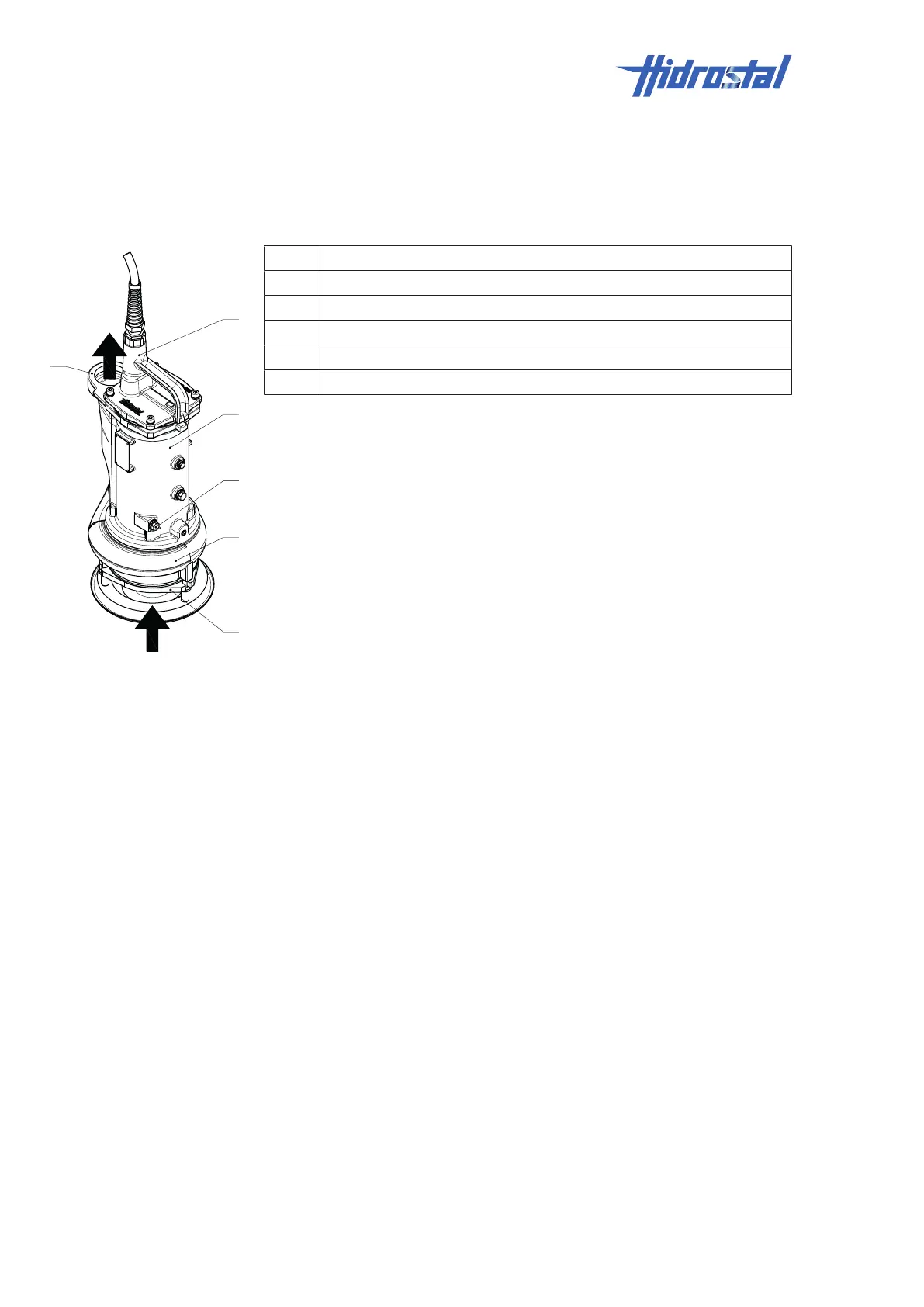

1 Cable cover
2 Electric motor
3 Oil chamber
4 Hydraulic part
5 Suction flange
6 Pressure flange
The impeller of the hydraulic part (3) sucks in the conveyed medium via the
suction flange (4) and conveys it to the pressure flange (5).
