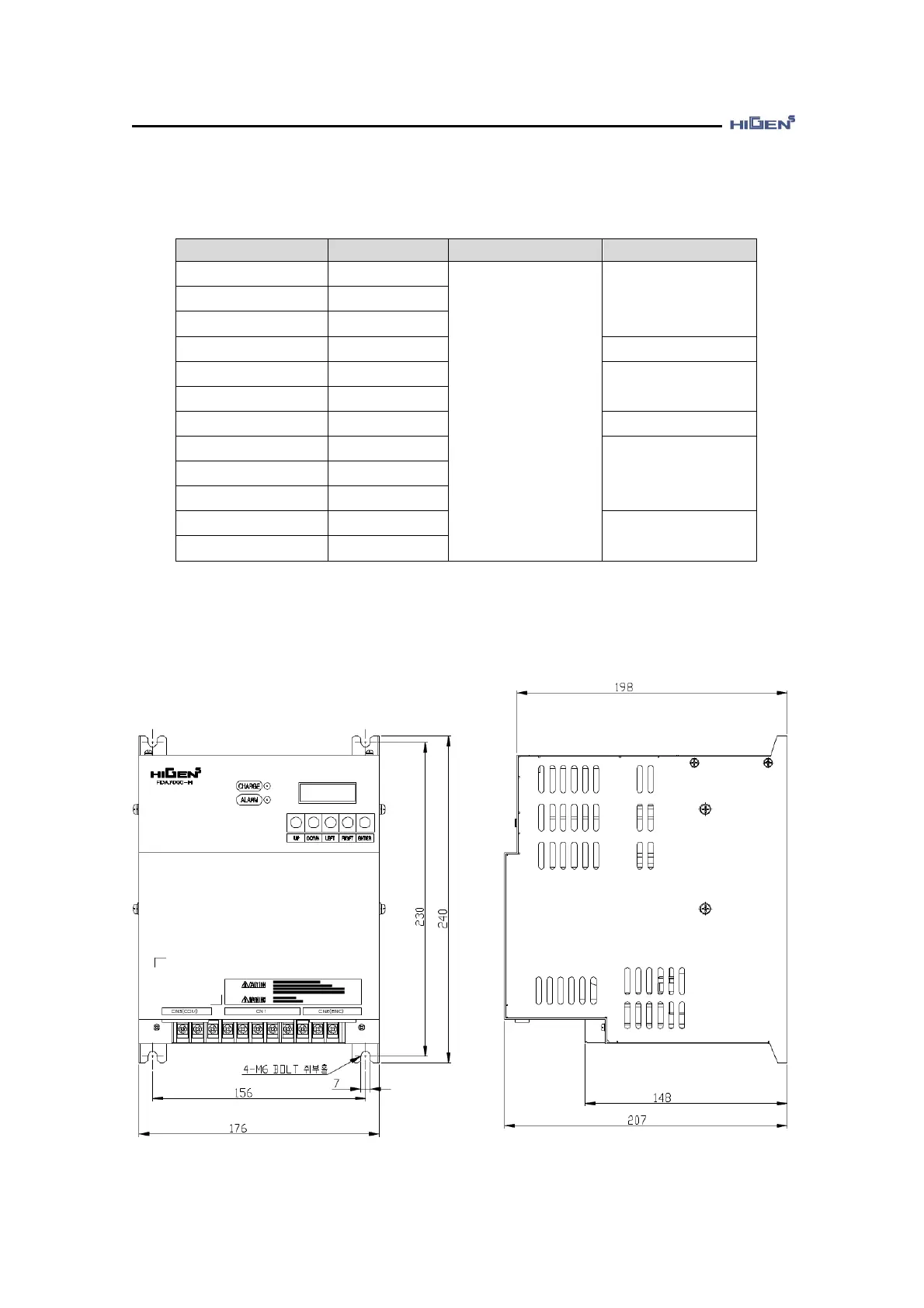

8. External view
8-5
8.2. External view of AC380V model servo drive
Servo Drive
Weight [Kg]
Cooling
External view
FDA7020-H□
6.0
Forced cooling
(FAN)
External view H
FDA7030-H□
6.2
FDA7045-H□
6.4
FDA7075-H□
15
External view I
FDA7110-H□
23
External view J
FDA7150-H□
24
FDA7220-H□
35.4
External view K
FDA7300-H□
51.7
External view L
FDA7370-H□
52.3
FDA7450-H□
52.3
FDA7550-H□
55.0
External view M
FDA7550-H□
55.0
* The FDA7000EX / EXD series is the same size as the FDA7000 series.
[External view H ]
