2. Wiring and connection
2-5
※ For the wiring of small/medium capacity socket, execute in the following order.
ⓐ After checking the wire thickness indicated in 2.2.1, remove the wire coating.
- The coating of the wire to be used should be 8 ~ 9mm or less.
- The thickness of the wire permitted by the socket is as follows.
Wire type Permitted wire thickness
Single wire
φ0.5 ~ φ0.8[mm]
Twisted wire AWG28 ~ AWG12
ⓑ Even though you can use the wire as is after removing the coating, for safety purposes put
a ferrule end to press with the crimping tool for ferrules insulated.

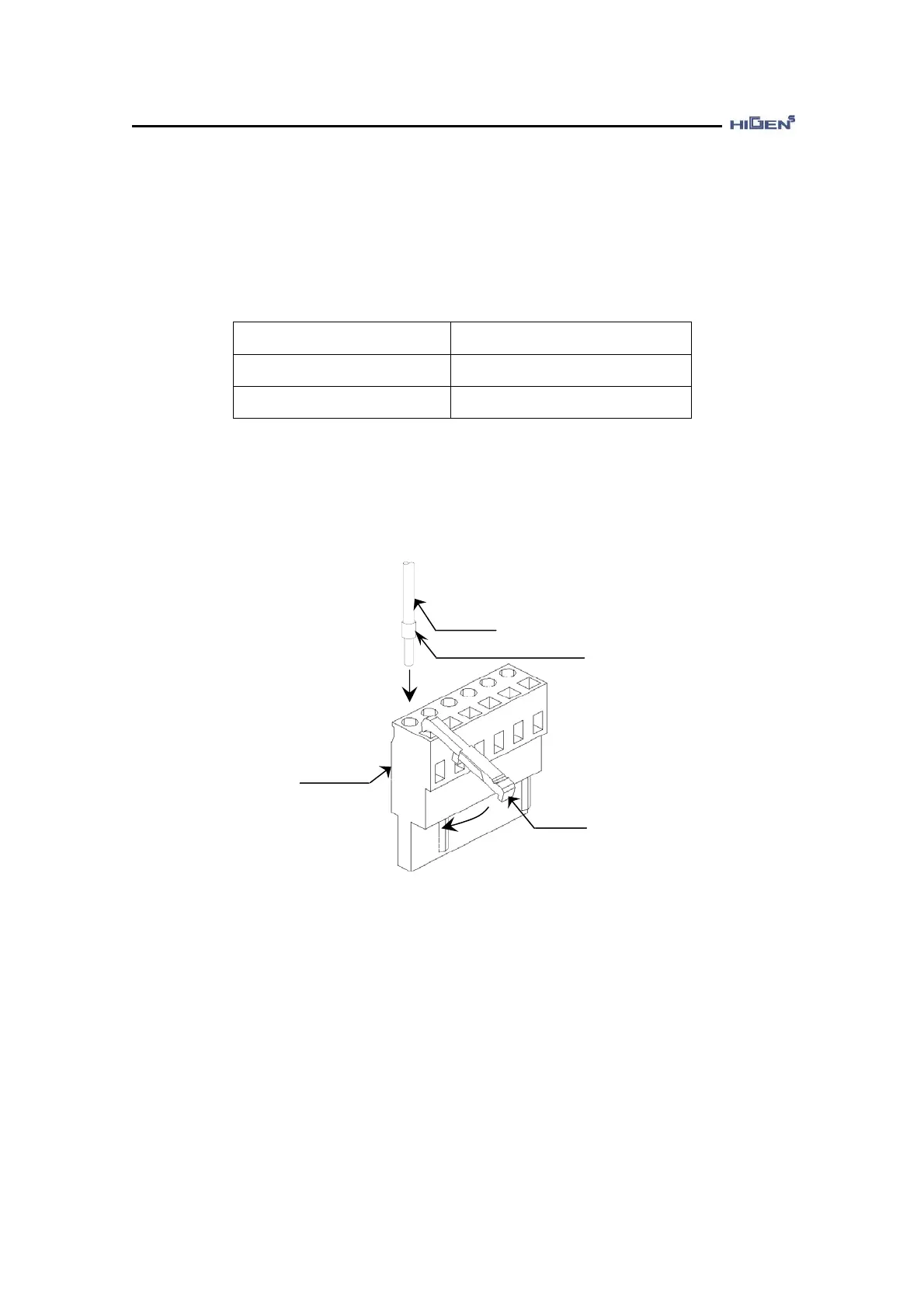

ⓒ Open the terminal (plug) wire inserting hole with the lever as shown in the following picture.
ⓓ Insert the core part of the wire to the opening part. Release the lever after inserting the wire.
ⓔ Lightly pull it out to see whether there is any problem in the connected condition of the
socket and the wire.
ⓕ When the coating of the wire is not completely inserted, it can cause electric shock.
Therefore check whether there are any exposed core wires.
Insulated Ferrule
Wire
Socket
Lever
