Higen FDA7015 User Manual

2. Wiring and connection
2-6
2.2.3 Large type terminal connection
UV
W
S
T
R
BP
rt

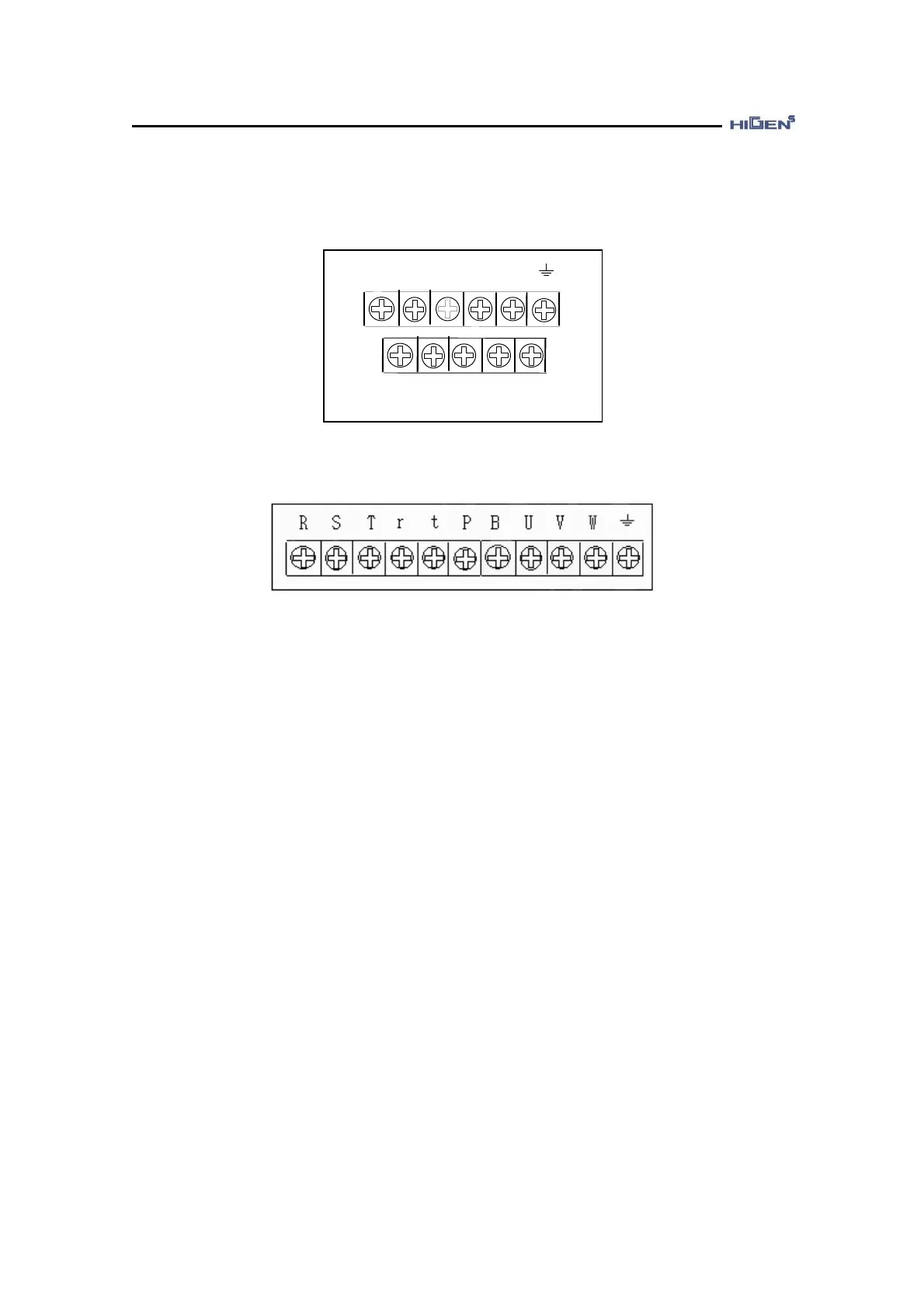

[ FDA7015 ~ FDA7045 connection terminal ]
[ FDA7015B ~ FDA7030B connection terminal ]
The usage and wiring method of FDA7015~FDA7045, FDA7015B~FDA7030B are as follows.
1) As the main power of the power circuit, connect the R,S and T terminal to 3 phase
AC200~230[V].
2) As the auxiliary power of the power circuit, connect the r and t terminal to single
phase AC200 ~ 230[V].
3) Connect the regenerated resistance between the terminals P and B.
4) At the U, V and W terminal, connect the U, V and W phase of the servo motor.
5) Ground the FG terminal. Connect the grounding wire of the servo motor with this
terminal.
