Higen FDA7030 User Manual

3. Parameter setting
3-12
P02-19
Inertia Ratio
Unit
-
Display range
1.0 ~ 50.0
Manufactured
default
2.0
Speed/Torque/
Position control
P02-20
Gain ADJ Speed 1
Unit
rpm
Display range
100.0 ~ 5000.0
Manufactured
default
800.0
Speed/Torque/
Position control
P02-21
Gain ADJ Speed 2
Unit
rpm
Display range
10.0 ~ 500.0
Manufactured
default
100.0
Speed/Torque/
Position control

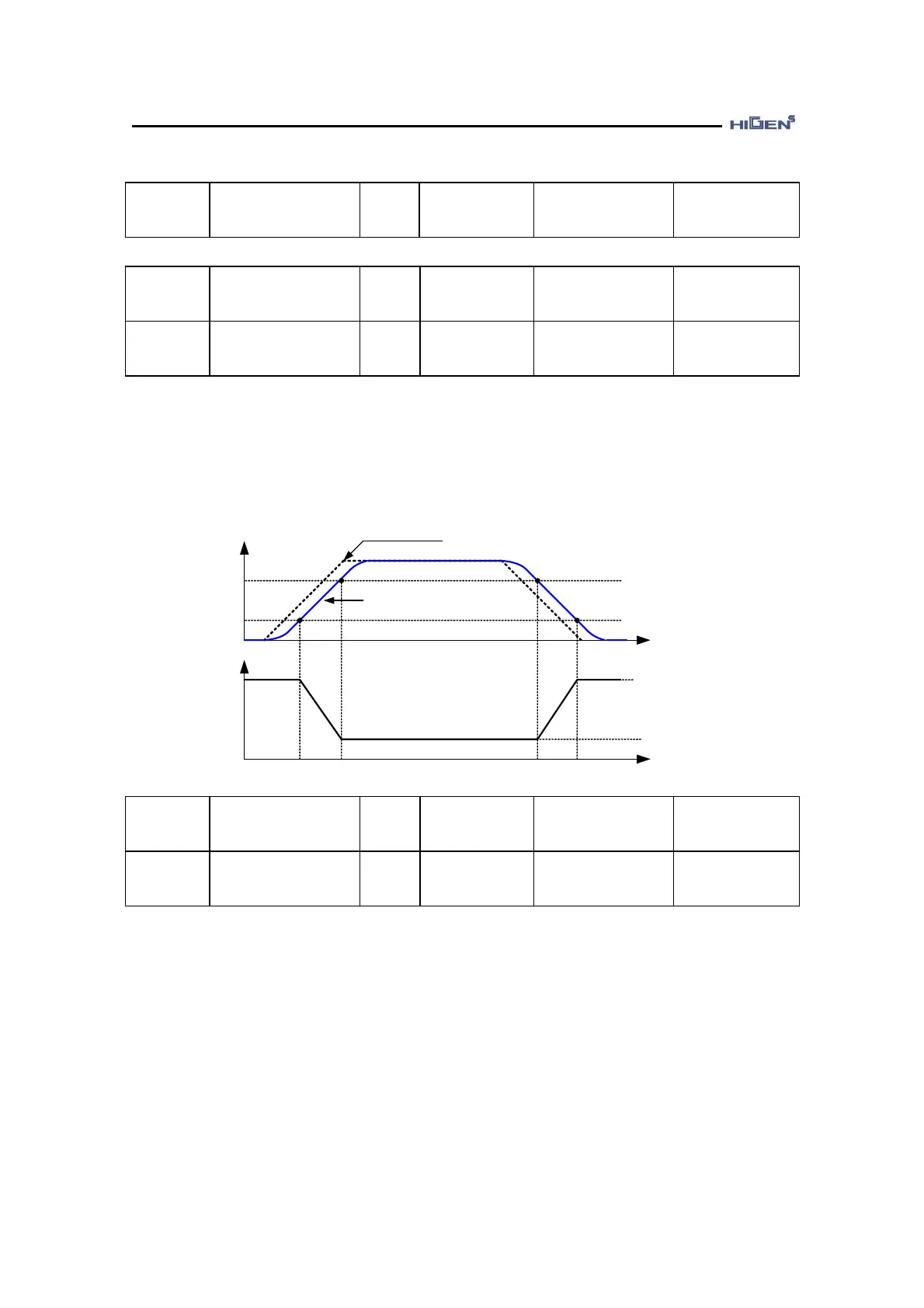

When executing the control gain conversion by operation speed of the servo motor, it decides
the speed converted by the control gain.
Speed
P02-20
P02-21
Gain
Gain1
Gain2
Command speed
Actual speed
P02-22
Gain ADJ TRQ 1
Unit
%
Display range
50.0 ~ 300.0
Manufactured
default
150.0
Speed/Torque/
Position control
P02-23
Gain ADJ TRQ 2
Unit
%
Display range
0.0 ~ 300.0
Manufactured
default
50.0
Speed/Torque/
Position control
When executing the control gain conversion by operating torque of the servo motor, it decides
the torque converted by the control gain.
